- Penghentian penjualan kategori produk pneumatik Seri Ekonomi (E-series). Info Detail
Notice of End of Sales for Economy Series Pneumatic Equipment Category. More information.
MISUMI Oil Free Bushings
-
- Recommendation
Oil Free Bushings Copper Alloy Shouldered I.D.E7/O.D.r6
MISUMI
- Oil Free Bushings Copper Alloy Shouldered I.D.E7/O.D.r6, C-MUFZ / C-MUFZU series from MISUMI.
- This is an economy item; The price is cheaper than the MISUMI standard product.
- Inner diameter precision class 7 ensures more accurate locating precision.
- Smooth surface makes linear motion smoother.
- Composite products based on high-strength brass and inlaid with solid lubricant.
- It is most suitable for use under conditions of heavy load and low speed operation.
- Excellent wear resistance can be exerted at parts with reciprocating motion, frequent starting and stopping, etc., where oil film is difficult to form.- Volume Discount
Standard Price: 28,238 IDR- Days to Ship: Same day or more -
- Recommendation
Oil Free Bushings Copper Alloy Straight I.D.F7/O.D.m6
MISUMI
- Oil Free Bushings Copper Alloy Straight I.D.F7/O.D.m6, C-MUBZ / C-MUBZU series from MISUMI.
- This is an economy item; The price is cheaper than the MISUMI standard product.
- Inner diameter precision class 7 ensures more accurate locating precision.
- Smooth surface makes linear motion smoother.
- Composite products based on high-strength brass and inlaid with solid lubricant.
- It is most suitable for use under conditions of heavy load and low speed operation.
- Excellent wear resistance can be exerted at parts with reciprocating motion, frequent starting and stopping, etc., where oil film is difficult to form.- Volume Discount
Standard Price: 19,934 IDR- Days to Ship: Same day or more -
- On Sale Till 31/03/2025
Oil Free Bushings - Multi-Layer LF Bushings (Dry Bush) - Straight
MISUMI
- Oil Free Bushings - Multi-Layer LF Bushings (Dry Bush) – Straight type, MDZB series from MISUMI.
- The shape of Oil Free Bushings is Straight type.
- Applicable to linear and rotary motion.
- Press-fit is recommended to affix bushings.
- Bushings with I.D. d<10 is only de-burred lightly instead of full chamfering.
- Chamfering is C0.3 when the I.D. is d≥10 and the plate thickness is 1.0.
- The allowable operating temperature range of the oil free bushing is -195 ~ 280°C.- Volume Discount
Standard Price: 10,749 IDR- Special Price Days to Ship: Same day or more -
Oil Free Bushings Copper Alloy Flanged I.D.F7/O.D.h7
MISUMI
- Oil Free Bushings Copper Alloy Flanged I.D.F7/O.D.h7, C-MUTNZ / C-MUTSZ / C-MUTZ series from MISUMI.
- This is an economy item; The price is cheaper than the MISUMI standard product.
- Inner diameter precision class 7 ensures more accurate locating precision.
- Smooth surface makes linear motion smoother.
- Recommended mating shaft for I.D. of Copper oil-free bushing are d8: General use (High Load), e7: General use (Light Load), f8: High precision use, g6: High precision use (Intermittent operation).
- The Copper oil-free bushing C-MUTNZ / C-MUTSZ / C-MUTZ series is made of High tensile brass alloy with solid lubricant embedded.- Volume Discount
Standard Price: 71,994 IDR- Days to Ship: Same day or more -
- On Sale Till 31/03/2025
Oil Free Bushings - Copper Alloy Straight, Standard
MISUMI
- Oil Free Bushings - Copper Alloy Straight, Standard type, MPBZ series from MISUMI.
- Copper Alloy Bushings in general use. Straight Shape Type.
- Recommended mating shaft for I.D. of Copper oil-free bushing MPBZ series are d8: General use (High Load), e7: General use (Light Load), f8: High precision use, g6: High precision use (Intermittent operation).
- Use of rotation stopper screws is recommended to affix bushings.
- The Copper oil-free bushing MPBZ series is made of High tensile brass alloy with solid lubricant embedded.- Volume Discount
Standard Price: 61,877 IDR- Special Price Days to Ship: Same day or more -
- On Sale Till 31/03/2025
MISUMI

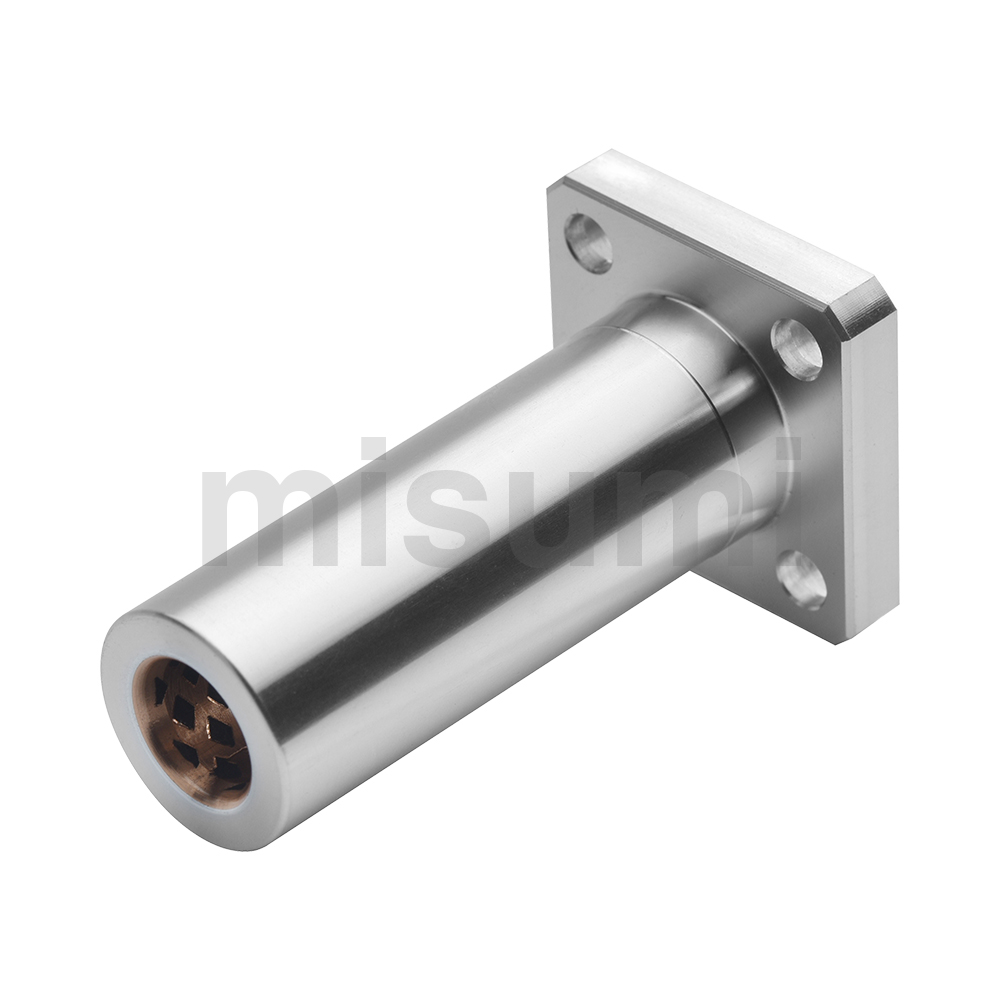

- Oil Free Bushing Housing Units - Standard Flanged.
- Housing Type: Single / Double
- Outer Diameter: 12, 15, 19, 21, 23, 28, 32, 40, 45, 52, 60 and 80.
- Housing Material: SS400.
- Housing Surface Treatment: Electroless Nickel Plating
- Bushing Material: High Tensile Brass Alloy Solid Lubricant Embedded
- Seal type: No Seal, With Dust Seals and With Non-Contact Seals
- Seals: NBR Nitrile Rubber (O-Ring) and Teflon Resin
- Suitable for vertical use and reduces the time of manufacturing and assembling the housing.- Volume Discount
Standard Price: 208,450 IDR- Special Price Days to Ship: Same day or more -
Standard Price: 22,015 IDR- Days to Ship: Same day or more -
Oil Free Bushings Copper Alloy Thrust Type
MISUMI
- Oil Free Bushings Copper Alloy Thrust Type, E-MUGZ / E-MUKZ series from MISUMI.
- Recommended mating shaft for I.D. of Copper oil-free bushing are d8: General use (High Load), e7: General use (Light Load), f8: High precision use, g6: High precision use (Intermittent operation).
- The Copper oil-free bushing E-MUGZ / E-MUKZ series is made of High tensile brass alloy with solid lubricant embedded.
- It is recommended to fix the bushing with anti-rotation screw.
- Accessories: Low head hexagon socket head screws 2 to 4 pcs.- Volume Discount
Standard Price: 54,268 IDR- Days to Ship: Same day or more -
Oil Free Bushings - Bronze, Straight, I.D. F7 O.D. m6
MISUMI
[Material] - Special bronze casting [Features] - Allows minute movements and has excellent seizure resistance.
- Volume Discount
Standard Price: 61,196 IDR- Days to Ship: Same day or more -
- On Sale Till 31/03/2025
Oil Free Bushings - Copper Alloy Straight / Thin Wall, I.D. F7 O.D. m6
MISUMI
- Oil Free Bushings - Copper Alloy Straight / Thin Wall type, I.D. F7 O.D. m6, MPBZU series from MISUMI.
- Recommended mating shaft for I.D. of Copper oil-free bushing MPBZU series are d8: General use (High Load), e7: General use (Light Load), f8: High precision use, g6: High precision use (Intermittent operation).
- Use of rotation stopper screws is recommended to affix bushings.
- The Copper oil-free bushing MPBZU series is made of High tensile brass alloy with solid lubricant embedded.- Volume Discount
Standard Price: 109,830 IDR- Special Price Days to Ship: Same day or more -
- On Sale Till 31/03/2025
Oil Free Bushings - Products - Copper Alloy Straight, Standard
MISUMI
Consider adopting C-VALUE products for Medium Accuracy / Medium/Low Load / Medium/Low Frequency applications. The most popular Oil-Free Bushing Shape.
- Volume Discount
Standard Price: 54,503 IDR- Special Price Days to Ship: Same day or more -
Oil Free Bushings - Bronze, Flanged
MISUMI
- Oil Free Bushings - Bronze, Flanged
- Oil Free Bushings Flanged: less likely to pull-out.
- The series including of SHFZ.
- Material: Special Bronze Castings
- Inner Diameter: 5, 6, 8, 10, 12, 13, 15, 16, 20, 25 and 30.
- Overall Length (L): 10, 12, 15, 20,25, 30, 40 and 50 mm.
- Thickness: 2, 3 and 5.
- Operating Temperature Range: -40 to 150 (°C)
- Ensure the bushing remains well lubricated.
- Press fitting is recommended to affix bushings.
- Housing diameters listed recommended dimensions following Misumi table standard.
- Oil Free Bushings - Bronze with Flange - Mounting Holes Type
- The series including of SHTZ (Round Flange) and SHTNZ (Compact Flange)
- Oil Free Bushings Material: Special Bronze Casting
- Inner Diameter: 6, 8, 10, 12, 16, 20, 25 and 30.
- Overall Length (L): 15, 20, 25, 30, 35, 40, 50, 60 and 70 mm.
- Thickness: 4, 5, 6 and 8.
- Operating Temperature Range: -40 to 150 (°C)
- Accessory: Hex Socket Low Head Cap Screws
- Flange Integrated Oil Free Bushings can reduce the time of assembling.- Volume Discount
Standard Price: 78,408 IDR- Days to Ship: Same day or more -
- On Sale Till 31/03/2025
Oil Free Bushings - Multi-Layer LF Bushings (Dry Bush) - Flanged
MISUMI
- Oil Free Bushings - Multi-Layer LF Bushings (Dry Bush) – Flanged type, MDZF series from MISUMI.
- The shape of Oil Free Bushings is Flanged type.
- Applicable to linear and rotary motion.
- Press-fit is recommended to affix bushings.
- Bushings with I.D. d<10 is only de-burred lightly instead of full chamfering.
- Chamfering is C0.3 when the I.D. is d≥10 and the plate thickness is 1.0.
- The allowable operating temperature range of the oil free bushing is -195 ~ 280°C.- Volume Discount
Standard Price: 21,036 IDR- Special Price Days to Ship: Same day or more -
Standard Price: 71,994 IDR- Days to Ship: 18 Day(s) -
- On Sale Till 31/03/2025
Oil Free Bushings - Straight (Polyacetal Resin)
MISUMI
- Oil Free Bushings - Straight (Polyacetal Resin), JZB series from MISUMI.
- The shape of Oil Free Bushings is Straight type.
- Press-fit is recommended to affix bushings.
- Conformance to Food Sanitation Law.
- The oil-free bushing JZB series is made of Polyacetal Resin with Lubricating Oil and Special Filler Added.
- The allowable operating temperature range of the oil free bushing is -40 ~ 80°C.
- I.D. Tolerance of the Oil Free Bushings is guaranteed value after press fit.- Volume Discount
Standard Price: 6,941 IDR- Special Price Days to Ship: Same day or more -
Oil Free Bushing Housing Units Round Flanged
MISUMI
- Oil Free Bushing Housing Units Round Flanged C-MFM series from MISUMI.
- Upgraded Economy Series Oilless Bushing Unit with technical enhancements.
- The case material changed from stainless steel to lightweight aluminum alloy.
- Oilless bushing material upgraded to a durable bronze alloy.
- Integrated one-piece design ensures even distribution of solid lubricant.
- Improved lubrication performance and significantly reduced noise
- Recommended for vertical motion applications.
- Easy installation and lower maintenance frequency
- Upgrade your equipment for smoother operations and enhanced durability.- Volume Discount
Standard Price: 461,195 IDR- Days to Ship: Same day or more -
Standard Price: 28,238 IDR- Days to Ship: Same day or more -
Oil Free Bushings - Flanged (PTFE)
MISUMI
- Oil Free Bushings - Flanged (PTFE), TFZF series from MISUMI.
- The shape of Oil Free Bushings is Flanged type.
- Press-fit is recommended to affix bushings.
- Conformance to Food Sanitation Law and excels in chemical resistance.
- The oil-free bushing TFZF series is made of PTFE Resin with Lubricating Oil and Special Filler Added.
- The allowable operating temperature range of the oil free bushing is -200 ~ 200°C.
- The dimension tolerance is measured at +25°C.- Volume Discount
Standard Price: 59,284 IDR- Days to Ship: 8 Day(s) or more -
- On Sale Till 31/03/2025
Oil Free Bushings - Flanged, Standard
MISUMI
- Oil Free Bushings - Flanged, Standard type, MPFZ series from MISUMI.
- Flanged shape, less likely to pull-out.
- Recommended mating shaft for I.D. of Copper oil-free bushing MPFZ series are d8: General use (High Load), e7: General use (Light Load), f8: High precision use, g6: High precision use (Intermittent operation).
- Use of rotation stopper screws is recommended to affix bushings.
- The Copper oil-free bushing MPFZ series is made of High tensile brass alloy with solid lubricant embedded.- Volume Discount
Standard Price: 87,969 IDR- Special Price Days to Ship: Same day or more -
Oil Free Bushings - Flanged (Polyacetal Resin)
MISUMI
- Oil Free Bushings - Flanged (Polyacetal Resin), JZF series from MISUMI.
- The shape of Oil Free Bushings is Flanged type.
- Press-fit is recommended to affix bushings.
- Conformance to Food Sanitation Law.
- The oil-free bushing JZF series is made of Polyacetal Resin with Lubricating Oil and Special Filler Added.
- The allowable operating temperature range of the oil free bushing is -40 ~ 80°C.
- I.D. Tolerance of the Oil Free Bushings is guaranteed value after press fit.- Volume Discount
Standard Price: 31,555 IDR- Days to Ship: Same day or more -
Oil Free Bushing Housing Units Compact Flanged
MISUMI
- Oil Free Bushing Housing Units Compact Flanged, C-MFN series from MISUMI.
- Upgraded Economy Series Oilless Bushing Unit with technical enhancements.
- The case material changed from stainless steel to lightweight aluminum alloy.
- Oilless bushing material upgraded to a durable bronze alloy.
- Integrated one-piece design ensures even distribution of solid lubricant.
- Improved lubrication performance and significantly reduced noise
- Recommended for vertical motion applications.
- Easy installation and lower maintenance frequency
- Upgrade your equipment for smoother operations and enhanced durability.- Volume Discount
Standard Price: 227,580 IDR- Days to Ship: Same day or more -
Oil Free Bushings Flange Integrated Type/Embedded Flanged Type
MISUMI
- Oil Free Bushings Flange Integrated Type/Embedded Flanged Type, E-MUITZ / E-MUIZ from MISUMI.
- Recommended mating shaft for I.D. of Copper oil-free bushing are d8: General use (High Load), e7: General use (Light Load), f8: High precision use, g6: High precision use (Intermittent operation).
- The Copper oil-free bushing E-MUITZ / E-MUIZ series is made of High tensile brass alloy with solid lubricant embedded.
- It is recommended to fix the bushing with anti-rotation screw.
- Accessories: Low head hexagon socket head screws 2 to 4 pcs.- Volume Discount
Standard Price: 140,148 IDR- Days to Ship: Same day or more -
- On Sale Till 31/03/2025
Flange Integrated Oil Free Bushings - Copper Alloy, Standard Flanged, I.D. F7
MISUMI
- Oil Free Bushings - Copper Alloy Standard Flanged.
- The series including of MPTZ, MPTSZ and MPTNZ.
- Oil Free Bushings Material: High Tensile Brass Alloy (Solid Lubricant Embedded)
- Inner Diameter: 6, 8, 10, 12, 13, 16, 20, 25, 30, 35, 40 and 50.
- Overall Length (L): 15, 20, 25, 30, 35, 40, 50, 50, 60, 70, 80 and 100 mm.
- Thickness: 4, 5, 6, 8 and 10.
- Operating Temperature Range: -40 to 150 (°C)
- Accessory: Hex Socket Low Head Cap Screws.
- Flange Integrated Oil Free Bushings can reduce the time of assembling.- Volume Discount
Standard Price: 175,939 IDR- Special Price Days to Ship: Same day or more -
Oil Free Bushing Housing Units - Standard Flanged
MISUMI
- Oil Free Bushing Housing Units - Standard Flanged
- Housing Type: Single / Double.
- Flanged Shape: Round Flange, Square Flange and Compact Flange.
- Inner Diameter: 6, 8, 10, 12, 16, 20, 25 and 30.
- Housing Material: Aluminum Alloy.
- Seals: NBR Nitrile Rubber (O-Ring)
- Oil Free Bushing in series code: MDZB
- Bushing Material: Composite product consisting of three layers: steel-backed metal layer, sintered bronze layer and filler added PTFE layer
- Operating Temperature Range: -30 to 100 (°C)
- Suitable for vertical use. Reduces the time of manufacturing and assembling the housing.- Volume Discount
Standard Price: 126,217 IDR- Days to Ship: 8 Day(s) or more -
MISUMI
More precise linear and rotary motion compared to Standard Type can be achieved by keeping the clearance between oil-free bushings and g6 shafts small.
- Volume Discount
Standard Price: 110,918 IDR- Days to Ship: Same day or more -
- On Sale Till 31/03/2025
Oil Free Bushings - Thrust Type
MISUMI
- Oil Free Bushings - Thrust Type
- Part number: MPGZ (Standard), MPSZ (Countersunk Hole) and MPKZ (Low Head Screw Hole).
- Oil Free Bushings Material: High Tensile Brass Alloy (Solid Lubricant Embedded)
- Inner Diameter: 6, 8, 10, 12, 13, 15, 16, 18, 20, 25, 30, 35, 40 and 50.
- Overall Length (L): 10, 12, 14, 15, 20, 25, 30, 35, 40, 45, 50 and 60 mm.
- Thickness: 3, 5, 7 and 8.
- Operating Temperature Range: -40 to 150 (°C)
- Lubricant is embedded in the flange so that one bushing can bear radial load and thrust load at the same time.- Volume Discount
Standard Price: 196,975 IDR- Special Price Days to Ship: Same day or more -
- On Sale Till 31/03/2025
Oil Free Bushings with oil Groove
MISUMI
- Oil Free Bushings with oil Groove
- The series including of MPBAZ.
- Groove type: One Groove and Two Groove
- Oil Free Bushings Material: High Tensile Brass Alloy.
- Inner Diameter: 10, 12, 13, 15, 16, 20, 25 and 30.
- Overall Length (L): 10, 12, 15, 16, 20, 25, 30 and 40 mm.
- Thickness: 2, 3 and 4.
- Operating Temperature Range: -40 to 150 (°C)
- Rotation Stopper Screw: M4x8 and M5x8.
- Lubrication frequency can be reduced by gathering initial grease in oil groove.- Volume Discount
Standard Price: 160,640 IDR- Special Price Days to Ship: Same day or more -
- On Sale Till 31/03/2025
MISUMI
- Oil Free Bushing Housing Units - Pilot Flanged
- Housing Type: Single, Double and Long.
- Outer Diameter: 6, 8, 10, 12, 16, 20, 25, 30, 35, 40 and 50.
- Housing Material: SS400.
- Housing Surface Treatment: Electroless Nickel Plating
- Bushing Material: High Tensile Brass Alloy Solid Lubricant Embedded
- Seal type: No Seal and With Non-Contact Seals
- Operating Temperature Range: -40 to 150 (°C)
- For Non-Contact Seals Teflon seal of 0.3mm thick is attached on the inner side of each retaining ring.
- Suitable for vertical use. Reduces the time of manufacturing and assembling the housing.- Volume Discount
Standard Price: 219,924 IDR- Special Price Days to Ship: Same day or more -
- On Sale Till 31/03/2025
Oil Free Bushings - Bronze, Standard Flanged Housing Units - Compact Flange
MISUMI
[Features]Due to flange integrated specifications, assembly labor-hours can be reduced.
- Volume Discount
Standard Price: 196,975 IDR- Special Price Days to Ship: Same day or more -
Oil Free Bushings - Products - Copper Alloy, Flanged, Standard
MISUMI
"Consider adopting C-VALUE products for Medium Accuracy / Medium/Low Load / Medium/Low Frequency applications. Flanged, less likely to pull-out."
- Volume Discount
Standard Price: 73,627 IDR- Days to Ship: 8 Day(s) or more -
Oil Free Bushing Housing Units Square Flanged
MISUMI
- Oil Free Bushing Housing Units Square Flanged, C-MFK series from MISUMI.
- Upgraded Economy Series Oilless Bushing Unit with technical enhancements.
- The case material changed from stainless steel to lightweight aluminum alloy.
- Oilless bushing material upgraded to a durable bronze alloy.
- Integrated one-piece design ensures even distribution of solid lubricant.
- Improved lubrication performance and significantly reduced noise
- Recommended for vertical motion applications.
- Easy installation and lower maintenance frequency
- Upgrade your equipment for smoother operations and enhanced durability.- Volume Discount
Standard Price: 304,643 IDR- Days to Ship: Same day or more -
Oil Free Bushings - Copper Alloy, Flanged, Thin Wall
MISUMI
- Oil Free Bushings - Copper Alloy, Flanged, Thin Wall type, MPFZU series from MISUMI.
- Recommended mating shaft for I.D. of Copper oil-free bushing MPFZU series are d8: General use (High Load), e7: General use (Light Load), f8: High precision use, g6: High precision use (Intermittent operation).
- Use of rotation stopper screws is recommended to affix bushings.
- The Copper oil-free bushing MPFZU series is made of High tensile brass alloy with solid lubricant embedded.- Volume Discount
Standard Price: 154,902 IDR- Days to Ship: 8 Day(s) or more -
Oil Free Bushings - Straight (PTFE)
MISUMI
- Oil Free Bushings - Straight (PTFE), TFZB series from MISUMI.
- The shape of Oil Free Bushings is straight type.
- Press-fit is recommended to affix bushings.
- Conformance to Food Sanitation Law and excels in chemical resistance.
- The oil-free bushing TFZB series is made of PTFE Resin with Lubricating Oil and Special Filler Added.
- The allowable operating temperature range of the oil free bushing is -200 ~ 200°C.
- The dimension tolerance is measured at +25°C.- Volume Discount
Standard Price: 49,722 IDR- Days to Ship: 8 Day(s) or more -
Lubrication-Free Bushing Block Type Housing Unit, Tall / Standard Type
MISUMI
- Oil Free Bushing Housing Units - Tall Blocks Standard Type.
- Tall Blocks Standard Type: Single and Double.
- Outer Diameter: 16, 20, 25 and 30.
- Housing Material: Aluminum Alloy.
- Housing Surface Treatment: Clear Anodize.
- Bushing Material: High Tensile Brass Alloy Solid Lubricant Embedded
- Seal type: No Seal and With Non-Contact Seals
- suitable for horizontal use. Reduces the time of manufacturing and assembling the housing.
- For Non-Contact Seals Teflon seal of 0.3mm thick is attached on the inner side of each retaining ring.- Volume Discount
Standard Price: 611,962 IDR- Days to Ship: 8 Day(s) or more -
Standard Price: 80,711 IDR- Days to Ship: 28 Day(s) or more -
Oil Free Bushings - High Precision
MISUMI
- Oil Free Bushings - High Precision
- The series including of BFLB.
- Bushing Material: Base Material A2017 .
- Sliding Material: Fluororesin (* Base and sliding materials are bonded.)
- Inner Diameter: 4, 5, 6, 8, 10, 12 and 16.
- Overall Length (L): 5, 6, 8, 10, 12, 15, 20 and 25.
- Operating Temperature Range: -50 to 140 (°C)
- Loctite (thread locking adhesive) is recommended to affix bushings.
- Applicable to linear and rotary motion.
- BFLB is specifically effective if the mating material is soft such as stainless steel, aluminum, brass, etc.- Volume Discount
Standard Price: 210,362 IDR- Days to Ship: Same day or more -
Oil Free Bushings - Straight / Flanged
MISUMI
- Oil Free Bushings - Straight / Flanged type.
- The series including of SMZ (Straight) and SMZF (Flanged).
- Bushing Material: Cast Iron FC250 is a Special Solid Lubricant.
- Inner Diameter: 6, 8, 10, 12, 15, 16, 20, 25 and 30.
- Overall Length (L): 6, 8, 10, 12, 15, 20, 25, 30, 40, 50 and 60 mm.
- Operating Temperature Range: -40 to 150 (°C)
- Loctite (thread locking adhesive) is recommended to affix bushings.
- Suitable for use in medium load and low speed applications.- Volume Discount
Standard Price: 118,568 IDR- Days to Ship: Same day or more -
Oil Free Bushings Flange Integrated Type Copper Alloy Center Flanged Type
MISUMI
- Oil Free Bushings Flange Integrated Type Copper Alloy Center Flanged Type, E-MUCTZ / E-MUCZ from MISUMI.
- Recommended mating shaft for I.D. of Copper oil-free bushing are d8: General use (High Load), e7: General use (Light Load), f8: High precision use, g6: High precision use (Intermittent operation).
- The Copper oil-free bushing E-MUCTZ / E-MUCZ series is made of High tensile brass alloy with solid lubricant embedded.
- It is recommended to fix the bushing with anti-rotation screw.
- Accessories: Low head hexagon socket head screws 2 to 4 pcs.- Volume Discount
Standard Price: 121,970 IDR- Days to Ship: 18 Day(s) -
Oil Free Bushings - QStandard / Thin Wall, I.D. E7 O.D. r6
MISUMI
- Oil Free Bushings Copper Alloy Straight, Standard / Thin Wall.
- The series including of MPBR and MPBRU.
- Oil Free Bushings Material: High Tensile Brass Alloy (Solid Lubricant Embedded)
- Inner Diameter: 5, 6, 8, 10, 12, 15, 16, 20, 25 and 30.
- Overall Length (L): 8, 10, 12, 15, 16, 20,25, 30, 40 and 50 mm.
- Thickness: 2, 3 and 4.
- Operating Temperature Range: -40 to 150 (°C)
- Bushings can be affixed only by Press-fit process.
- No process using Rotation Stopper Screws is required.- Volume Discount
Standard Price: 110,918 IDR- Days to Ship: 8 Day(s) or more -
Flange Integrated Oil Free Bushings - Center Flanged
MISUMI
- Flange Integrated Oil Free Bushings - Center Flanged type, MPCZ / MPCTZ series from MISUMI.
- Flange integrated oil free bushings can reduce the time of assembling.
- Recommended mating shaft for I.D. of Copper oil-free bushing MPCZ / MPCTZ series are d8: General use (High Load), e7: General use (Light Load), f8: High precision use, g6: High precision use (Intermittent operation).
- The Copper oil-free bushing MPCZ / MPCTZ series is made of High tensile brass alloy with solid lubricant embedded.- Volume Discount
Standard Price: 292,595 IDR- Days to Ship: 8 Day(s) or more -
Standard Price: 105,121 IDR- Days to Ship: Same day or more -
Standard Price: 88,095 IDR- Days to Ship: 28 Day(s) or more -
Oil Free Bushing Housing Units - Blocks - Compact - Tall Blocks / Wide Blocks
MISUMI
- Oil Free Bushing Housing Units -Wide Blocks Compact Type
- Wide Blocks Compact Type: Single and Double.
- Outer Diameter: 10, 12, 16, 20, 25 and 30.
- Housing Material: Aluminum Alloy.
- Housing Surface Treatment: Clear Anodize.
- Bushing Material: High Tensile Brass Alloy Solid Lubricant Embedded
- Seal type: No Seal and With Non-Contact Seals
- Suitable for horizontal use. Reduces the time of manufacturing and assembling the housing.
- For Non-Contact Seals Teflon seal of 0.3mm thick is attached on the inner side of each retaining ring.- Volume Discount
Standard Price: 367,177 IDR- Days to Ship: Same day or more -
Lubrication-Free Bushing Block Type Housing Unit, Tall / Standard Type, Built-in Dry Bushing Type
MISUMI
Oil-free bushing: A standard that reduces the effort of producing and assembling a housing suitable for horizontal movement with a built-in dry type. The width (W dimension) is more compact than the wide block type.
- Volume Discount
Standard Price: 298,331 IDR- Days to Ship: Same day or more -
Oil Free Bushing Housing Units - Flanged
MISUMI
- Oil Free Bushing Housing Units - Flanged
- Housing Flanged Type: Round Flange / Compact Flange
- Part numbers are in type of JFMA and JFRA.
- Housing Material: Aluminum Alloy.
- Housing Surface Treatment: Clear Anodize.
- Using Bushing series code: JZB Straight type (Polyacetal Resin)
- Inner Diameter: 6, 8, 10, 12 and 16.
- Overall Length (L): 19, 24, 29, 30 and 37 mm.
- Operating Temperature Range: -30 to 80 (°C)
- Suitable for vertical use and reduces the time of manufacturing and assembling the housing.- Volume Discount
Standard Price: 206,537 IDR- Days to Ship: 8 Day(s) or more
| Brand |
|---|
| Product Series |
| CAD |
| Days to Ship |
| Type |
| Inner Dia. d(Ø) |
| Outer Dia. D(Ø) |
| Overall Length L(mm) |
| Metal Type |
| Environment |
| Resin Type |
| Multi-layer |
| Case Shape |
| Mounting Shaft Fit |
| Mounting Hole Fits |
| Lubrication |
| Thickness t(mm) |
| Max. Allowable Surface Pressure P(N/mm2) |
| Case Material |
| Max. Allowable Velocity V(m/s) |
| Length Type |
| Max. Allowable PV Value Range(N/mm2・m/s) |
| Max. Allowable PV Value(N/mm2•m/s) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
| Brand | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI | MISUMI |
| Product Series | Oil Free Bushings - Multi-Layer LF Bushings (Dry Bush) - Straight | Oil Free Bushings - Copper Alloy Straight / Thin Wall, I.D. F7 O.D. m6 | Oil Free Bushings - Products - Copper Alloy Straight, Standard | Oil Free Bushings - Multi-Layer LF Bushings (Dry Bush) - Flanged | Oil Free Bushings Flange Integrated Type/Embedded Flanged Type | Flange Integrated Oil Free Bushings - Copper Alloy, Standard Flanged, I.D. F7 | Oil Free Bushings - Bronze, Standard Flanged Housing Units - Compact Flange | Oil Free Bushings - Products - Copper Alloy, Flanged, Standard | Lubrication-Free Bushing Block Type Housing Unit, Tall / Standard Type | Resin Oli Free Bushing, Abrasion Resitance(POM)【10-50 Pieces Per Package】 | Oil Free Bushings Flange Integrated Type Copper Alloy Center Flanged Type | Resin Oli Free Bushing, General Purpose(PA)【10-50 Pieces Per Package】 | Oil Free Bushing Housing Units - Blocks - Compact - Tall Blocks / Wide Blocks | Lubrication-Free Bushing Block Type Housing Unit, Tall / Standard Type, Built-in Dry Bushing Type | |||||||||||||||||||||||||||||||
| CAD |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Days to Ship | Same day or more | Same day or more | Same day or more | Same day or more | Same day or more | Same day or more | Same day or more | Same day or more | Same day or more | Same day or more | Same day or more | Same day or more | Same day or more | 18 Day(s) | Same day or more | Same day or more | Same day or more | 8 Day(s) or more | Same day or more | Same day or more | Same day or more | Same day or more | Same day or more | 8 Day(s) or more | Same day or more | Same day or more | Same day or more | Same day or more | Same day or more | 8 Day(s) or more | Same day or more | 8 Day(s) or more | 8 Day(s) or more | 8 Day(s) or more | 28 Day(s) or more | Same day or more | Same day or more | 18 Day(s) | 8 Day(s) or more | 8 Day(s) or more | Same day or more | 28 Day(s) or more | Same day or more | Same day or more | 8 Day(s) or more |
| Type | Flanged Type | Straight/sleeve | Straight/sleeve | Flange-Mount Type | Straight/sleeve | Flange-Mount Type | Straight/sleeve | Flanged Type | Straight/sleeve | Straight/sleeve | Straight/sleeve | Flanged Type | Flanged Type | Flange-Mount Type | Straight/sleeve | Housing Unit Type | Flanged Type | Flanged Type | Flanged Type | Flanged Type | Housing Unit Type | Flange-Mount Type | Flange-Mount Type | Flange-Mount Type | Straight/sleeve | Flanged Type | Straight/sleeve | Flange-Mount Type | Flange-Mount Type | Flanged Type | Housing Unit Type | Flanged Type | Straight/sleeve | Housing Unit Type | Straight/sleeve / Flanged Type | Straight/sleeve | Straight/sleeve / Flanged Type | Flange-Mount Type | Straight/sleeve | Flange-Mount Type | Flange-Mount Type | Straight/sleeve / Flanged Type | Housing Unit Type | Housing Unit Type | Flange-Mount Type |
| Inner Dia. d(Ø) | 5 ～ 100 | 5 ～ 100 | 3 ～ 50 | 6 ～ 50 | 5 ～ 100 | 6 ～ 50 | 5 ～ 30 | 6 ～ 50 | 5 ～ 30 | 5 ～ 50 | 8 ～ 50 | 5 ～ 30 | 3 ～ 50 | 6 ～ 30 | 3 ～ 50 | 10 ～ 50 | 5 ～ 30 | 3 ～ 20 | 5 ～ 50 | 3 ～ 50 | 10 ～ 50 | 10 ～ 40 | 6 ～ 50 | 6 ～ 30 | 5 ～ 30 | 6 ～ 50 | 10 ～ 30 | 6 ～ 50 | 6 ～ 30 | 10 ～ 50 | 10 ～ 50 | 5 ～ 30 | 3 ～ 20 | 16 ～ 30 | 3 ～ 60 | 4 ～ 16 | 8 ～ 25 | 8 ～ 40 | 5 ～ 30 | 8 ～ 30 | 6 ～ 30 | 3 ～ 70 | 10 ～ 30 | 6 ～ 30 | 6 ～ 16 |
| Outer Dia. D(Ø) | 7 ～ 120 | 7 ～ 120 | 5 ～ 55 | 10 ～ 62 | 9 ～ 120 | 12 ～ 80 | 9 ～ 38 | 10 ～ 62 | 9 ～ 38 | 7 ～ 55 | 12 ～ 62 | 9 ～ 40 | 4.6 ～ 55 | 10 ～ 38 | 5 ～ 55 | 19 ～ 80 | 9 ～ 40 | 6 ～ 26 | 9 ～ 60 | 5 ～ 55 | 19 ～ 80 | 14 ～ 50 | 10 ～ 62 | 12 ～ 45 | 7 ～ 38 | 10 ～ 62 | 14 ～ 38 | 12 ～ 80 | 10 ～ 38 | 14 ～ 60 | 19 ～ 80 | 7 ～ 34 | 6 ～ 26 | - | 4.5 ～ 65 | 7 ～ 19 | 12 ～ 32 | 12 ～ 50 | 7 ～ 38 | 12 ～ 38 | 10 ～ 38 | 4.5 ～ 75 | - | 8 ～ 34 | 8 ～ 18 |
| Overall Length L(mm) | 8 ～ 100 | 6 ～ 100 | 3 ～ 60 | 10 ～ 100 | 8 ～ 100 | 22 ～ 188 | 8 ～ 60 | 10 ～ 60 | 8 ～ 60 | 8 ～ 50 | 8 ～ 80 | 10 ～ 50 | 3 ～ 40 | 15 ～ 70 | 3 ～ 50 | 32 ～ 170 | 10 ～ 50 | 3 ～ 30 | 10 ～ 50 | 3 ～ 50 | 32 ～ 170 | 25 ～ 60 | 15 ～ 100 | 19 ～ 115 | 8 ～ 40 | 10 ～ 60 | 10 ～ 40 | 22 ～ 188 | 15 ～ 70 | 15 ～ 60 | 32 ～ 170 | 10 ～ 50 | 3 ～ 25 | 42 ～ 128 | 3 ～ 40 | 5 ～ 25 | 8 ～ 40 | 20 ～ 80 | 8 ～ 50 | 20 ～ 70 | 15 ～ 70 | 3 ～ 50 | 32 ～ 128 | 27 ～ 128 | 19 ～ 37 |
| Metal Type | Brass | Brass | - | Brass | Brass | Brass | Brass | Brass | Bronze | Brass | Brass | Bronze | - | Brass | - | Bronze | Brass | - | Brass | - | Bronze | Brass | Brass | - | Brass | Brass | Brass | Brass | Bronze | Brass | Bronze | Brass | - | Brass | - | - | Cast Iron | Brass | Brass | Brass | Brass | - | Brass | - | - |
| Environment | Standard / In Oil | Standard / In Oil | - | Standard / In Oil | - | - | Standard / In Oil | Standard / In Oil | - | - | - | - | - | Standard / In Oil | Conformance to Food Sanitation Law | Standard / In Oil | Standard / In Oil | Conformance to Food Sanitation Law | - | Conformance to Food Sanitation Law | Standard / In Oil | Standard / In Oil | - | - | - | - | - | - | - | - | Standard / In Oil | - | Conformance to Food Sanitation Law | - | Standard / Foreign Object Resistant / Vibration Resistant / In Oil / In Water / In Seawater | - | - | Standard / In Oil | - | - | Standard / In Oil | Standard / Foreign Object Resistant / Vibration Resistant / In Oil | - | - | Conformance to Food Sanitation Law |
| Resin Type | - | - | - | - | - | - | - | - | - | - | - | - | - | - | POM (Polyacetal) | - | - | PTFE (Polytetrafluoroethylene) | - | POM (Polyacetal) | - | - | - | - | - | - | - | - | - | - | - | - | PTFE (Polytetrafluoroethylene) | - | POM (Polyacetal) | - | - | - | - | - | - | High Performance Polymer Group | - | - | - |
| Multi-layer | - | - | Steel, Sintered Bronze, Polytetrafluoroethylene | - | - | - | - | - | - | - | - | - | Steel, Sintered Bronze, Polytetrafluoroethylene | - | - | - | - | - | - | - | - | - | - | Steel, Sintered Bronze, Polytetrafluoroethylene | - | - | - | - | - | - | - | - | - | - | - | Aluminum, Fluororesin | - | - | - | - | - | - | - | Steel, Sintered Bronze, Polytetrafluoroethylene | Polyacetal |
| Case Shape | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Round Flange | - | - | - | - | Oval Shaped Flange | - | - | - | - | - | - | - | - | - | Square Flange | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Mounting Shaft Fit | d8 / e7 / g6 / f8 | d8 / e7 / g6 / f8 | - | d8 / e7 / g6 / f8 | - | - | g6 / f8 | d8 / e7 / g6 / f8 | - | - | - | - | - | g6 / f8 | - | g6 / f8 | g6 / f8 | - | - | - | g6 / f8 | d8 / e7 / g6 / f8 | - | - | - | - | - | - | - | - | g6 / f8 | - | - | - | - | - | - | d8 / e7 / g6 / f8 | - | - | g6 / f8 | - | - | - | - |
| Mounting Hole Fits | H7 | H7 | H7 | - | H7 | - | - | H7 | H7 | H7 | H7 | H7 | H7 | - | H7 | - | - | H7 | H7 | H7 | - | - | - | - | G7 / H7 | H7 | H7 | - | - | H7 | - | H7 | H7 | - | H7 | - | - | - | H7 | - | - | H7 | - | - | - |
| Lubrication | Unlubricated / Regular Lubrication | Unlubricated / Regular Lubrication | - | Unlubricated / Regular Lubrication | - | - | Unlubricated / Regular Lubrication | Unlubricated / Regular Lubrication | - | - | - | - | - | Unlubricated / Regular Lubrication | - | Unlubricated / Regular Lubrication | Unlubricated / Regular Lubrication | - | - | - | Unlubricated / Regular Lubrication | Unlubricated / Regular Lubrication | - | - | - | - | - | - | - | - | Unlubricated / Regular Lubrication | - | - | - | Unlubricated | - | - | Unlubricated / Regular Lubrication | - | - | Unlubricated / Regular Lubrication | Unlubricated | - | - | - |
| Thickness t(mm) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| Max. Allowable Surface Pressure P(N/mm2) | 20.3 | 20.3 | 49 | 20.3 | 29 | 29 | 10 | 29 | 10 | 29 | 20.3 | 10 | 49 | 10 | 17.5 | 29 | 10 | 7 | 29 | 17.5 | 29 | 29 | 29 | 49 | 29 | 29 | 29 | 29 | 10 | 20.3 | 29 | 29 | 7 | 29 | - | 6 | 5 | 29 | 29 | 29 | 10 | - | 29 | 49 | 17.5 |
| Case Material | - | - | - | - | - | Steel | - | - | - | - | - | - | - | - | - | Aluminum | - | - | - | - | Aluminum | - | - | Aluminum | - | - | - | Steel | - | - | Aluminum | - | - | Aluminum | - | - | - | - | - | - | - | - | Aluminum | Aluminum | Aluminum |
| Max. Allowable Velocity V(m/s) | 0.35 | 0.35 | 0.65 | 0.35 | 0.5 | 0.5 | 1.66 | 0.5 | 1.66 | 0.5 | 0.35 | 1.66 | 0.65 | 1.66 | 0.85 | 0.5 | 1.66 | 1.65 | 0.5 | 0.85 | 0.5 | 0.5 | 0.5 | 0.65 | 0.5 | 0.5 | 0.5 | 0.5 | 1.66 | 0.35 | 0.5 | 0.5 | 1.65 | 0.5 | - | 3.33 | 0.15 | 0.5 | 0.5 | 0.5 | 1.66 | - | 0.5 | 0.65 | 0.85 |
| Length Type | - | - | - | - | - | Single / Double / Long | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Single / Double | - | - | - | Single / Double / Long | - | - | - | - | - | Single / Double | - | - | - | - | - | - | - | - | Single / Double | Single / Double | Single |
| Max. Allowable PV Value Range(N/mm2・m/s) | 1.1~2.0 | 1.1~2.0 | 2.1~5.0 | 1.1~2.0 | 1.1~2.0 | 1.1~2.0 | 1.1~2.0 | 1.1~2.0 | 1.1~2.0 | 1.1~2.0 | 1.1~2.0 | 1.1~2.0 | 2.1~5.0 | 1.1~2.0 | 2.1~5.0 | 1.1~2.0 | 1.1~2.0 | 0.3~1.0 | 1.1~2.0 | 2.1~5.0 | 1.1~2.0 | 1.1~2.0 | 1.1~2.0 | 2.1~5.0 | 1.1~2.0 | 1.1~2.0 | 1.1~2.0 | 1.1~2.0 | 1.1~2.0 | 1.1~2.0 | 1.1~2.0 | 1.1~2.0 | 0.3~1.0 | 1.1~2.0 | - | 0.3~1.0 | 0.3~1.0 | 1.1~2.0 | 1.1~2.0 | 1.1~2.0 | 1.1~2.0 | - | 1.1~2.0 | 2.1~5.0 | 2.1~5.0 |
| Max. Allowable PV Value(N/mm2•m/s) | - | - | 3.6 | - | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 1.16 | 1.65 | 3.6 | 1.65 | 2.45 | 1.65 | 1.65 | 1 | 1.65 | 2.45 | 1.65 | 1.65 | 1.65 | 3.6 | 1.65 | 1.65 | 1.65 | 1.65 | 1.65 | 1.16 | 1.65 | 1.65 | 1 | 1.65 | - | 0.98 | 0.5 | 1.65 | 1.65 | 1.65 | 1.65 | - | 1.65 | 3.6 | 2.45 |
Loading...
Configure
Specification/Dimensions
-
Inner Dia. d(Ø)
-
Outer Dia. D(Ø)
- 3.5
- 4
- 4.5
- 4.6
- 5
- 5.5
- 5.6
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 12$8$12$8
- 13
- 14
- 15
- 16
- 17
- 18
- 19
- 20
- 21
- 22
- 23
- 24
- 25
- 26
- 27
- 28
- 29
- 30
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 42
- 43.0
- 44
- 45
- 47
- 48
- 50
- 52
- 53.0
- 55
- 56
- 60
- 62
- 65
- 68
- 70
- 74
- 75
- 78
- 80
- 85
- 90
- 95
- 96
- 100
- 105
- 110
- 115
- 117
- 118
- 120
- 125
- 130
- 135
- 140
- 145
- 150
- 155
- 156
- 160
- 165
- 170
- 180
- 190
-
Overall Length L(mm)
- 2
- 3
- 3.5
- 4
- 4.5
- 5
- 5.5
- 6
- 6.5
- 7
- 7.5
- 7.7
- 8
- 9
- 9.5
- 10
- 11
- 11.5
- 12
- 12.5
- 13
- 13.5
- 14
- 15
- 16
- 16.5
- 17
- 18
- 19
- 20
- 21
- 21.5
- 22
- 23
- 24
- 25
- 26
- 27
- 29
- 30
- 32
- 34
- 35
- 36
- 37
- 38
- 39
- 40
- 42
- 45
- 47
- 48
- 50
- 51
- 52
- 55
- 56
- 57
- 58
- 59
- 60
- 62
- 63
- 64
- 65
- 67
- 67.5
- 68
- 69
- 70
- 73
- 74
- 75
- 77
- 78
- 80
- 81
- 82
- 85
- 86
- 90
- 95
- 97
- 100
- 103
- 108
- 110
- 112
- 115
- 120
- 125
- 128
- 130
- 140
- 141
- 150
- 158
- 170
- 188
- 500
-
Metal Type
-
Environment
-
Resin Type
- POM (Polyacetal)
- PTFE (Polytetrafluoroethylene)
- High Performance Polymer Group
- Polyphenylenesulfide
-
Multi-layer
- Steel, Sintered Bronze, Polytetrafluoroethylene
- Steel, Sintered Bronze, Polyacetal
- Steel, Copper Type Sintered Alloy
- Metal Mesh, Polytetrafluoroethylene
- Aluminum, Fluororesin
- Polyacetal
-
Case Shape
-
Mounting Shaft Fit
-
Mounting Hole Fits
-
Lubrication
-
Thickness t(mm)
-
Max. Allowable Surface Pressure P(N/mm2)
-
Case Material
-
Max. Allowable Velocity V(m/s)
-
Length Type
-
Max. Allowable PV Value Range(N/mm2・m/s)
-
Max. Allowable PV Value(N/mm2•m/s)
Narrow search by specifying Manufacturer
CAD
-
- 2D
- 3D
Days to Ship
-
- All
- Same day
- 1 Day(s) or Less
- 8 Day(s) or Less
- 9 Day(s) or Less
- 10 Day(s) or Less
- 11 Day(s) or Less
- 12 Day(s) or Less
- 13 Day(s) or Less
- 14 Day(s) or Less
- 15 Day(s) or Less
Related Categories to Oil Free Bushings
-
Bank TransferTransfer Bank
MISUMI Contact
MISUMI Kontak
Copyright © MISUMI Corporation All Rights Reserved.
How can we improve?Bagaimana Kami bisa meningkatkan Pelayanan?
How can we improve?Bagaimana Kami bisa meningkatkan Pelayanan?
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Customer Privacy Policy Walaupun Kami tidak dapat langsung menjawab saran yang ditulis di lembar ini, informasinya akan kami review untuk peningkatan pelayanan dikemudian hari
Kebijakan Privacy
Thank you for your cooperation.Terima kasih atas kerjasama anda.
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Please use the inquiry form.
Customer Privacy Policy Walaupun Kami tidak dapat langsung menjawab saran yang ditulis di lembar ini, informasinya akan kami review untuk peningkatan pelayanan dikemudian hari
Silahkan pergunakan Forms Permintaan.
Kebijakan Privacy
