Board-To-Board Connectors（Connection direction：Angle）

•

  Flat Cable Connector (General Purpose Type) - XG4

  OMRON

  The core of PCB connectors, MIL standard compliant products.
  [Features]
  ・ Achieves high reliability and low price at the same time by adopting a new productivity design
  ・ A box type plug (type XG4C) is also available to help space saving
  ・ A IDC type plug (type XG4E) that can be used as a relay is also available
  ・ Compliant with MIL standard (MIL-C-83503)
  ・ UL standard (file No. E103202) certified product is standard product (Excludes type XG4U and type XG4H)
  [Applications]
  ・ It can be used for various purposes

  • Volume Discount

  Standard Price:	20,655 IDR-
  Days to Ship:	Same day or more

•

  DIN Connector (Twin Contact Type) - XC5 (DIN Standard)

  OMRON

  Greatly expanded the variation of international standard DIN connectors.
  [Features]
  ・ The manufacturer is trying to expand the number of positions while taking advantage of the advantages of DIN connectors
  ・ Wide variations correspond to various applications in the industry
  ・ Compatible with the international needs from one-piece connectors (card edges) to two-piece connectors
  ・ Achieves low price while maintaining high reliability by adopting twin contact method
  ・ Achieves low insertion force that has resulted from FEM analysis
  ・ UL standard (file No. E103202), CSA standard (file No. LR62678) certified products are standard products
  [Applications]
  ・ It can be used as a board-to-board connector

  • Volume Discount

  Standard Price:	41,690 IDR-
  Days to Ship:	Same day or more

•

  SL 3.5 Series

  WEIDMULLER

  3.5 mm pitch connector on the circuit board side. Male headers are available in open, closed (G) and flange (F) versions.

  Standard Price:	30,216 IDR-
  Days to Ship:	9 Day(s) or more

•

  Connector For CF Card, MI20/21 Series

  HIROSE ELECTRIC

  This is a CF card connector. Wide variety available to suit different applications, with differing mount orientation, standoff inclusion, ejector button, and supported cards.

  Standard Price:	58,776 IDR-
  Days to Ship:	8 Day(s) or more

•

  PCN10 Series (DIN Standard-Compliant: Dip Wrapping Type)

  HIROSE ELECTRIC

  This is a DIN standard compliant board-to-board connector. Available in a wide variety and supports various connections.

  • Volume Discount

  Standard Price:	30,216 IDR-
  Days to Ship:	8 Day(s) or more

•

  DIN Standard Compliant Board-to-Board Connector PCN13 Series

  HIROSE ELECTRIC

  This is a DIN standard compliant board-to-board connector. Reduces cost by using a single-sided, two-point connection for the terminal.

  Standard Price:	23,283 IDR
  Days to Ship:	8 Day(s) or more

•

  Crimped Original Type, PS Series

  JAPANAVIATION

  [Features]
  ・The socket contacts are crimped to discrete wires and then it is inserted into the socket housing.
  ・This is a board-to-wire connector used in combination with pin headers.

  Standard Price:	53,429 IDR-
  Days to Ship:	12 Day(s) or more

•

  PS-LA Series

  JAPANAVIATION

  [Features]
  · A small, low-profile PS Series connector — mounting height: 9.5 mm, contact pitch: 2.54 mm.
  · The combination of a crimped socket and a box-style pin header (straight/angled) makes this connector strongly resistant against connector collapse and prying. This connector is optimally suited for mounting high-density, board-to-wire connections.
  · A highly reliable type for obtaining a secure, stable connection. The structure prevents incorrect insertion and is strongly resistant to vibration and pulling. The socket contacts are a 2-point contact configuration, which utilize spring characteristics.

  Standard Price:	45,385 IDR-
  Days to Ship:	12 Day(s) or more

•

  3M^TM Standard Socket/Header, V Low-Profile Header, Right Angle Type

  3M

  [Features]
  · Right-angle type, very low-profile header, available in 12 types of pin number variations from 10 to 64 pins.
  · A 4-sided mold is used to protect the contacts and prevent reverse insertion of the socket connectors.
  · Board-to-board connection is feasible when combined with a board mount socket.

  Standard Price:	38,462 IDR-
  Days to Ship:	12 Day(s)

•

  3M^TM Standard Socket/Header, Box Header, Right-Angle Type

  3M

  · A right-angle box header with a 4-sided mold for protecting the contacts and preventing reverse insertion of the socket connectors.

  [Features]
  · Available in 11 varieties of pin combinations from 10 pins to 64 pins.
  · Ejector latch that simplifies securing and removal of the socket connector included.
  · Equipped with a mounting hole that effectively alleviates stress on through holes during temporary mounting for soldering or while inserting or extracting.
  · A 4-sided mold is used to protect the contacts, and prevent reverse insertion of the socket connectors.
  · Compatible with board thicknesses of 2.4 to 3.2 mm (tail length 3.9 mm).

  • STOCK

  Standard Price:	58,143 IDR-
  Days to Ship:	1 Day(s) or more

•

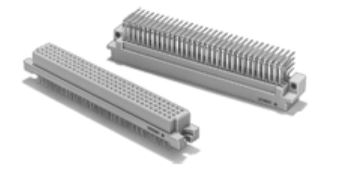

  DIN Connector (4-Row, 128-Contact Type) - XC5 (Multi-Contact)

  OMRON

  A multi-pin (4 rows, 128 poles) connector that has been expanded by taking advantage of the concept of DIN.
  [Features]
  ・ The manufacturer is trying to make it multi-pin while taking advantage of the DIN connector
  ・ Two types of plug L-shaped terminals are available: standard DIN type and circuit board mounted DIN style type
  ・ Twin contacts are used for the contact structure to achieve low insertion force and maintain high reliability
  [Applications]
  ・ Mounted on PCBs such as communication equipment, office equipment, test and measuring instrument, disaster prevention and crime prevention equipment, and security equipment
  ・ Used in a wide range of applications

  Standard Price:	193,342 IDR
  Days to Ship:	8 Day(s) or more

•

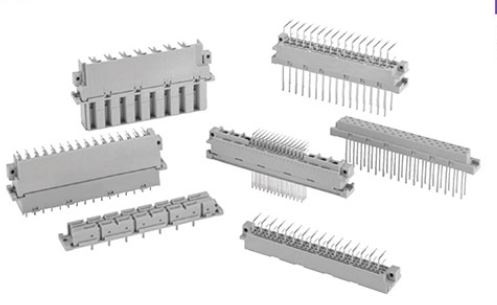

  DIN Connector (for Medium and High Electrical Currents) - XC4

  OMRON

  Internationally standardized DIN connector for medium and large currents.
  [Features]
  ・ Compatible with DIN41612
  ・ It can be used for medium/large current and high voltage circuits due to sufficient insulation distance
  ・ It can be mounted in the same rack as type XC5 series
  ・ DIN connector M type (mix type) is also available
  ・ UL standard (file No. E103202) certified product is standard product (Excludes some products)
  [Applications]
  ・ Used in communication equipment, office equipment, test measuring instrument, disaster prevention and security equipment, etc.
  ・ Mounted on PCBs such as security devices and used in a wide range of applications

  Standard Price:	314,970 IDR
  Days to Ship:	Same day

•

  HM Connector (2-mm Pitch, Hard Metric Connectors) - XC8/XC9

  OMRON

  2.0-mm pitch board-to-board connector compliant with CompactPCI, the PCI bus standard for industrial computers.
  [Features]
  ・ Compliant with IEC61076-4-101
  ・ Compatible with 3U and 6U Eurocard packages
  ・ Socket contact is a highly reliable double-sided contact method
  ・ UL standard (file No. E103202) certified product as standard product (Excludes some products)
  [Applications]
  ・ For PCBs of communication equipment, office equipment, test and measuring instrument, disaster and crime prevention equipment, security equipment, etc.

  Standard Price:	609,668 IDR
  Days to Ship:	Same day

•

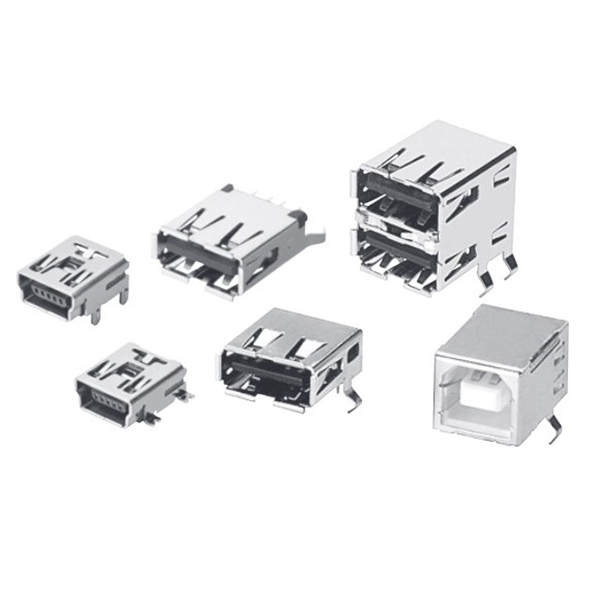

  USB Connector, XM7

  OMRON

  A small USB standard compliant interface connector.
  [Features]
  ・ Compliant with USB 2.0 standard
  mini-USB connector
  ・ Mating cycles 5,000 times
  ・ Lineup of L-shaped terminals and SMT terminals
  USB Connector
  ・ Supports up to 1,500 mating cycles
  ・ Socket A type is mounted on the PC body, USB hub, etc., and Socket B type is mounted on PC peripherals such as printers, scanners, and mice

  Standard Price:	20,000 IDR-
  Days to Ship:	Same day

•

  Original Plug - XG8

  OMRON

  A generic general purpose plug compatible with a wide range of applications.
  [Features]
  ・ It can be widely used as a plug for various socket mating
  ・ Compatible with through hole ø0.8
  ・ The 2-row type L-shaped terminal plug uses a block-type base to improve workability during soldering, and can be easily locked using a simple lock lever (Except for type XG8V and type XG8W straight)
  ・ Polarization cut is possible (Type XG8W, excluding L type)
  ・ UL standard (file No. E103202) certified product is standard product
  [Applications]
  ・ Ideal as an intermediate plug between connectors

  • Volume Discount

  Standard Price:	86,631 IDR
  Days to Ship:	Same day

•

  High Speed Transmission, 0.8 mm Pitch, Connector For Board-to-Board Connection, FX18 Series

  HIROSE ELECTRIC

  0.8mm pitch. This is the basic series that is central to the FunctionMAX range. Selection is easy from the wide range of options, and the product is very user-friendly.

  • Volume Discount

  Standard Price:	200,609 IDR
  Days to Ship:	8 Day(s) or more
