Board-To-Board Connectors（Allowable Voltage：AC300）
| Days to Ship |
|
|---|
-
Flat Cable Connector (General Purpose Type) - XG4
OMRON
The core of PCB connectors, MIL standard compliant products.
[Features]
・ Achieves high reliability and low price at the same time by adopting a new productivity design
・ A box type plug (type XG4C) is also available to help space saving
・ A IDC type plug (type XG4E) that can be used as a relay is also available
・ Compliant with MIL standard (MIL-C-83503)
・ UL standard (file No. E103202) certified product is standard product (Excludes type XG4U and type XG4H)
[Applications]
・ It can be used for various purposes- Volume Discount
Standard Price: 20,655 IDR- Days to Ship: Same day or more -

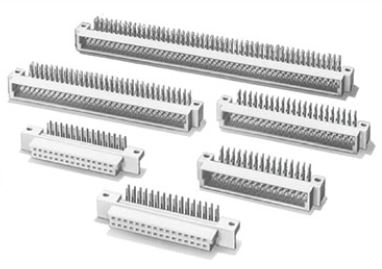

DIN Connector (Twin Contact Type) - XC5 (DIN Standard)
OMRON
Greatly expanded the variation of international standard DIN connectors.
[Features]
・ The manufacturer is trying to expand the number of positions while taking advantage of the advantages of DIN connectors
・ Wide variations correspond to various applications in the industry
・ Compatible with the international needs from one-piece connectors (card edges) to two-piece connectors
・ Achieves low price while maintaining high reliability by adopting twin contact method
・ Achieves low insertion force that has resulted from FEM analysis
・ UL standard (file No. E103202), CSA standard (file No. LR62678) certified products are standard products
[Applications]
・ It can be used as a board-to-board connector- Volume Discount
Standard Price: 41,690 IDR- Days to Ship: Same day or more -
PCN10 Series (DIN Standard-Compliant: Dip Wrapping Type)
HIROSE ELECTRIC
This is a DIN standard compliant board-to-board connector. Available in a wide variety and supports various connections.
- Volume Discount
Standard Price: 30,216 IDR- Days to Ship: 8 Day(s) or more -
DIN Standard Compliant Board-to-Board Connector PCN13 Series
HIROSE ELECTRIC
This is a DIN standard compliant board-to-board connector. Reduces cost by using a single-sided, two-point connection for the terminal.
Standard Price: 23,283 IDR Days to Ship: 8 Day(s) or more -
DIN Connector (4-Row, 128-Contact Type) - XC5 (Multi-Contact)
OMRON
A multi-pin (4 rows, 128 poles) connector that has been expanded by taking advantage of the concept of DIN.
[Features]
・ The manufacturer is trying to make it multi-pin while taking advantage of the DIN connector
・ Two types of plug L-shaped terminals are available: standard DIN type and circuit board mounted DIN style type
・ Twin contacts are used for the contact structure to achieve low insertion force and maintain high reliability
[Applications]
・ Mounted on PCBs such as communication equipment, office equipment, test and measuring instrument, disaster prevention and crime prevention equipment, and security equipment
・ Used in a wide range of applicationsStandard Price: 193,342 IDR- Days to Ship: Same day or more -
DIN Style Connector (Twin Contact Type) - XC5 (DIN Style)
OMRON
A DIN style board-to-board connector built to further expand on the DIN concept.
[Features]
・ DIN standard connector can be mated
・ Ideal for automatic solder mounting because it is a circuit board mounted style
・ DIN style 1 adopts the same mounting dimensions as DIN
・ DIN style 2 further expands the mounting dimensions and realizes a comfortable mounting
・ UL standard (file No. E103202), CSA standard (file No. LR62678) certified products are standard products (Type XC5K is excluded)
[Applications]
・ Communication equipment, office equipment, test and measuring instrument, disaster prevention and crime prevention equipment, security equipment, etc.
・ Mounted on a PCB and used in a wide range of applicationsStandard Price: 97,724 IDR Days to Ship: Same day -

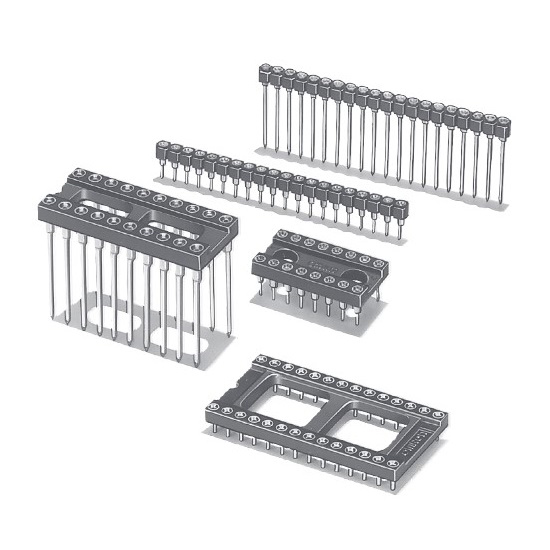

OMRON
Achieves high reliability such as resistance to momentary interruptions. Ideal for high-speed data processing circuits.
[Features]
・ The contact is a round pin type and has good retention due to 4-point contact, and has excellent vibration and impact resistance
・ Large contact insertion slot for easy insertion
・ High contact position with IC lead ensures excellent contact
・ Excellent flux resistance
・ Wide selection of open frame, closed frame, single row type, dip terminal, wrapping terminal, low pro dip terminal
・ Gold flush plated products are also available in a series. The ideal choice can be selected according to the application
・ UL standard (file No. E103202) certified product is standard product
[Applications]
・ It can be used in places such as where heat resistance is high and tends to get hot when inserting and removing frequentlyStandard Price: 14,286 IDR- Days to Ship: Same day -
OMRON
A generic general purpose plug compatible with a wide range of applications.
[Features]
・ It can be widely used as a plug for various socket mating
・ Compatible with through hole ø0.8
・ The 2-row type L-shaped terminal plug uses a block-type base to improve workability during soldering, and can be easily locked using a simple lock lever (Except for type XG8V and type XG8W straight)
・ Polarization cut is possible (Type XG8W, excluding L type)
・ UL standard (file No. E103202) certified product is standard product
[Applications]
・ Ideal as an intermediate plug between connectors- Volume Discount
Standard Price: 12,622 IDR- Days to Ship: Same day -
Shorting Connectors - XJ8/XG8S/XG8T
OMRON
[Features]
· A low-profile, economical connector that is used for circuit switching.
· Provides an above circuit board height of 5.8 mm (XJ8 type) or 6.8 mm (XG8S/T), and a low profile.
· These connectors can also be used both vertically and horizontally in 2.54-mm grid high-density mountings.
· Available in a lineup of one to three rows.
· Compatible with through hole diameters of ⌀0.8.
· An easy-to-insert, difficult-to-remove structure.
· A 2-point contact structure with high contact reliability.
· The thin plug housing (XJ8 type) is made using PPS resin, which has excellent heat-resistant characteristics.
· UL Standard (File NO E103202).
· Certified products are used as standard (XJ8 type).- Volume Discount
Standard Price: 12,431 IDR- Days to Ship: Same day
| Brand |
|---|
| Product Series |
| Days to Ship |
| Connector Shape |
| D/E/F |
| M/N/O |
| P/Q/R |
| S/T/U |
| V/W/X |
| Y and Z |
| Number |
| Applicable pin/contact |
| Number Of Pins |
| Application |
| Allowable Current(A) |
| Allowable Voltage(V) |
| Wire connection method |
| Connection direction |
| Protection function (environmentally resistant) |
| Representative Standard |
|
|
|
|
|
|
|
|
| |
| Brand | OMRON | OMRON | HIROSE ELECTRIC | HIROSE ELECTRIC | OMRON | OMRON | OMRON | OMRON | OMRON |
| Product Series | DIN Standard Compliant Board-to-Board Connector PCN13 Series | DIN Connector (4-Row, 128-Contact Type) - XC5 (Multi-Contact) | |||||||
| Days to Ship | Same day or more | Same day or more | 8 Day(s) or more | 8 Day(s) or more | Same day or more | Same day | Same day | Same day | Same day |
| Connector Shape | - | Square shape | - | - | Square shape | - | Square shape | Square shape | Square shape |
| D/E/F | - | DIN/miniDIN | - | - | DIN/miniDIN | - | - | - | - |
| M/N/O | - | - | - | - | - | - | - | - | - |
| P/Q/R | - | - | Other | Other | - | - | - | - | - |
| S/T/U | - | - | - | - | - | - | - | - | - |
| V/W/X | - | - | - | - | - | - | - | - | - |
| Y and Z | - | - | - | - | - | - | - | - | - |
| Number | - | - | - | - | - | - | - | - | - |
| Applicable pin/contact | Male (plug) / Female (socket) | Male (plug) / Female (socket) | Male (plug) / Female (socket) | Female (socket) | Male (plug) / Female (socket) | Female (socket) | Male (plug) | Male (plug) | Male (plug) |
| Number Of Pins | 10 ～ 64 | 20 ～ 100 | 20 ～ 128 | 20 | 128 | 20 | 8 ～ 40 | 2 ～ 40 | 2 ～ 18 |
| Application | For PCB | Board-to-Board | Cable Connection / Board-to-Board | Board-to-Board | For PCB | Board-to-Board | For PCB | For PCB | For PCB |
| Allowable Current(A) | 3 | 2 | 2 | 2 | 2 | 2 | 1 | 3 | 2 |
| Allowable Voltage(V) | AC300 | AC300 | AC300 | AC300 | AC300 | AC300 | AC300 | AC300 | AC300 |
| Wire connection method | - | Solder | Crimp / Other | Other | Solder | - | Solder | - | Solder |
| Connection direction | Straight / Angle | Straight / Angle | Straight / Angle | Angle | Straight / Angle | Straight | Straight | Straight / Angle | Straight |
| Protection function (environmentally resistant) | - | NA | - | - | NA | - | NA | NA | NA |
| Representative Standard | - | UL / CSA | - | - | - | - | UL | UL | UL |
Loading...
Configure
Specification/Dimensions
-
Connector Shape
- Square shape
-
D/E/F
- DIN/miniDIN
- Other
-
M/N/O
- Other
-
P/Q/R
- Other
-
S/T/U
- USB
-
V/W/X
- XH
-
Y and Z
- Other
-
Number
- Other
-
Applicable pin/contact
- Male (plug)
- Female (socket)
-
Number Of Pins
-
Application
-
Allowable Current(A)
-
Allowable Voltage(V)
-
Wire connection method
- Solder
- Crimp
- Pressure Welding
- Other
-
Connection direction
- Straight
- Angle
-
Protection function (environmentally resistant)
-
Representative Standard
Narrow search by specifying Manufacturer
-
- OMRON (7)
- HIROSE ELECTRIC (2)
- 3M (0)
- JAPANAVIATION (0)
- WEIDMULLER (0)
CAD
-
- 2D
- 3D
Related Categories to Board-To-Board Connectors
-
Bank TransferTransfer Bank
MISUMI Contact
MISUMI Kontak
Copyright © MISUMI Corporation All Rights Reserved.
How can we improve?Bagaimana Kami bisa meningkatkan Pelayanan?
How can we improve?Bagaimana Kami bisa meningkatkan Pelayanan?
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Customer Privacy Policy Walaupun Kami tidak dapat langsung menjawab saran yang ditulis di lembar ini, informasinya akan kami review untuk peningkatan pelayanan dikemudian hari
Kebijakan Privacy
Thank you for your cooperation.Terima kasih atas kerjasama anda.
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Please use the inquiry form.
Customer Privacy Policy Walaupun Kami tidak dapat langsung menjawab saran yang ditulis di lembar ini, informasinya akan kami review untuk peningkatan pelayanan dikemudian hari
Silahkan pergunakan Forms Permintaan.
Kebijakan Privacy
