80° Hexagon Insert with Hole Negative WNMG "Medium Cutting"
[Specifications]
· Breaker Symbol: None (Full Periphery)
· Shape: Hexagonal with Hole 80°
· Rake Angle: Negative
[Applications]
· Medium Cutting
Japanese Only
Part Number
Configured Part Number is shown.
WNMG080408-AH110

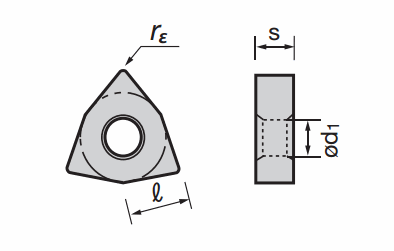

Outline Drawing
Hexagonal Type, with Hole, 80° WNMG804
Outline Drawing
| Applications | Breaker Symbol | Model Number | Material | Conforming Cutting Bit (Listed Item) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Coating | Coated Cermet | Cermet | Carbide | ||||||||||||||
| T9105 | T9115 | T9125 | T9135 | T5105 | T5115 | T5125 | AH110 | AH120 | GT730 | NS730 | NS520 | NS530 | TH10 | ||||
| Medium Cutting | Full Periphery (M) | WNMG080404 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ▲ | ● | ● | Outer Diameter TAC Cutting Bit (4-17 up) Internal Diameter TAC Cutting Bit (5-38 up) | |
| *WNMG080408 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ▲ | ▲ | ● | ● | |||
| WNMG080412 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ||||||
| WNMG080416 | ● | ● | ● | ● | ● | ● | |||||||||||
Related Products
Standard digital calipers. Hold and auto power-OFF (approximately 20 minutes) functions included.
| Part Number |
|---|
| WNMG080408-AH110 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | work material | Material Type | Corner Radius (rε) (mm) |
|---|---|---|---|---|---|---|---|
128,931 IDR | 10 Piece(s) | 8 Day(s) or more | Cast Iron / Heat-Resistant Alloy, Titanium Alloy | AH110 | 0.8 |
Loading...
Basic Information
| Shape | W (Hexagonal) | Application | Outer Diameter / Inner Diameter | Available corners | 6 |
|---|---|---|---|---|---|
| Breaker Use | Medium Cutting | Rake angle | Negative | Selfishly | No Preferred Hand |
| Grade Classification | Coating | Cutting Edge Length (ℓ)(mm) | 8.7 | Thickness s(mm) | 4.76 |
| No. of Units Ordered(Pcs) | 10 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
