Carbide Radical Reamer Shell Head
A highly accurate and economical shell head.
Flute shape: Spiral/helical/broach
Helix angle (°): Left-handed helix angle 45
Part Number
Configured Part Number is shown.
| Part Number |
|---|
| PF-RM9.10 |
| PF-RM9.20 |
| PF-RM12.20 |
| PF-RM13.40 |
| PF-RM14.40 |
| PF-RM25.00 |
| PF-RM27.50 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Tool Diameter (mm) | Blade tip ℓ (mm) | Blade Length ℓ1 (mm) | Shank Lower Length ℓ2 (mm) | Handle Diameter D (mm) | Applicable Arbor Cord | Blade diameter tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|
4,527,626 IDR | 1 Piece(s) | 8 Day(s) or more | 9.1 | 7 | 20 | 60 | 105 | NI00158 (NI00159) shank diameter φ10 | +0.013～+0.018 | ||
4,527,626 IDR | 1 Piece(s) | 8 Day(s) or more | 9.2 | 7 | 20 | 60 | 105 | NI00158 (NI00159) shank diameter φ10 | +0.013～+0.018 | ||
6,109,203 IDR | 1 Piece(s) | 8 Day(s) or more | 12.2 | 7.9 | 22 | 67 | 122 | NI00162 (NI00163) shank diameter φ12 | +0.016～+0.021 | ||
7,228,869 IDR | 1 Piece(s) | 8 Day(s) or more | 13.4 | 8.2 | 22 | 77 | 142 | NI00164 (NI00165) shank diameter φ16 | +0.016～+0.021 | ||
7,414,226 IDR | 1 Piece(s) | 8 Day(s) or more | 14.4 | 9 | 22 | 87 | 152 | NI00166 (NI00167) shank diameter φ16 | +0.016～+0.021 | ||
11,991,611 IDR | 1 Piece(s) | 8 Day(s) or more | 25 | 11.3 | 28 | 108 | 178 | NI00170 (NI00171) shank diameter φ25 | +0.016～+0.021 | ||
15,333,965 IDR | 1 Piece(s) | 8 Day(s) or more | 27.5 | 11.6 | 34 | 119 | 199 | NI00172 (NI00173) shank diameter φ32 | +0.016～+0.021 |
Loading...
Basic Information
| work material | general steel / Stainless Steel / Heat-resistant alloy / Alloy Steel | Coating Y/N | Available | Groove Shape | Spiral |
|---|---|---|---|---|---|
| Twist | Left-hand thread 45° | Tool Material Type | Carbide | Coating Type | TiCN2 |

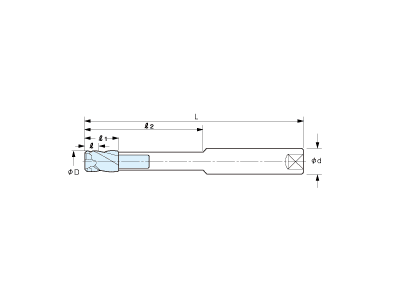

Specification/Dimensions
-
Tool Diameter(mm)
-
Blade tip ℓ(mm)
-
Blade Length ℓ1(mm)
-
Shank Lower Length ℓ2(mm)
-
Handle Diameter D(mm)
-
Applicable Arbor Cord
- NI00158 (NI00159) shank diameter φ10
- NI00162 (NI00163) shank diameter φ12
- NI00164 (NI00165) shank diameter φ16
- NI00166 (NI00167) shank diameter φ16
- NI00170 (NI00171) shank diameter φ25
- NI00172 (NI00173) shank diameter φ32
-
type
- PF-RM
Days to Ship
-
- All
- 8 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
