Carbide Broach Reamer (Morse Taper Shank)
Broach reamer for machining aluminum or cast iron. Maintains clean surface roughness
Part Number
Configured Part Number is shown.
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Tool Diameter (mm) | Blade tip ℓ (mm) | Blade Length ℓ1 (mm) | Shank Lower Length ℓ2 (mm) | Overall Length L (mm) | MT No. | Pilot Hole Mounting φ | Cutting feed mm/rev | Blade diameter tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2,078,314 IDR | 1 Piece(s) | 8 Day(s) or more | 5.5 | 5.7 | 25 | 65 | 130 | MT1 | - | - | +0.003～+0.007 | ||
1,768,018 IDR | 1 Piece(s) | 8 Day(s) or more | 7 | 7 | 25 | 74.5 | 140 | MT1 | 0.2~0.4 | 0.15–0.3 | +0.005～+0.009 | ||
2,662,884 IDR | 1 Piece(s) | 8 Day(s) or more | 7.6 | 7 | 25 | 84 | 150 | MT1 | - | - | +0.005～+0.009 | ||
2,662,884 IDR | 1 Piece(s) | 8 Day(s) or more | 7.7 | 7 | 25 | 84 | 150 | MT1 | - | - | +0.005～+0.009 | ||
2,006,497 IDR | 1 Piece(s) | 8 Day(s) or more | 8 | 7 | 25 | 84.5 | 150 | MT1 | 0.2~0.4 | 0.15–0.3 | +0.005～+0.009 | ||
2,933,510 IDR | 1 Piece(s) | 8 Day(s) or more | 8.6 | 7 | 25 | 99 | 165 | MT1 | - | - | +0.005～+0.009 | ||
2,201,202 IDR | 1 Piece(s) | 8 Day(s) or more | 9 | 7 | 25 | 99.5 | 165 | MT1 | 0.2~0.4 | 0.15–0.3 | +0.005～+0.009 | ||
2,933,510 IDR | 1 Piece(s) | 8 Day(s) or more | 9.2 | 7 | 25 | 99 | 165 | MT1 | - | - | +0.005～+0.009 | ||
3,236,283 IDR | 1 Piece(s) | 8 Day(s) or more | 9.5 | 7 | 29 | 99 | 165 | MT1 | - | - | +0.005～+0.009 | ||
4,481,116 IDR | 1 Piece(s) | 8 Day(s) or more | 13.3 | 7 | 29 | 114 | 180 | MT1 | - | - | +0.006～+0.010 | ||
4,481,116 IDR | 1 Piece(s) | 8 Day(s) or more | 14.7 | 7 | 29 | 120 | 200 | MT2 | - | - | +0.006～+0.010 | ||
4,978,822 IDR | 1 Piece(s) | 8 Day(s) or more | 15.4 | 7 | 30 | 125 | 205 | MT2 | - | - | +0.006～+0.010 | ||
4,978,822 IDR | 1 Piece(s) | 8 Day(s) or more | 15.9 | 7 | 30 | 125 | 205 | MT2 | - | - | +0.006～+0.010 | ||
5,554,044 IDR | 1 Piece(s) | 8 Day(s) or more | 17.8 | 7 | 30 | 130 | 210 | MT2 | - | - | +0.006～+0.010 | ||
4,148,021 IDR | 1 Piece(s) | 8 Day(s) or more | 18 | 7 | 30 | 130 | 210 | MT2 | 0.2–0.5 | 0.2~0.4 | +0.006～+0.010 | ||
5,554,044 IDR | 1 Piece(s) | 8 Day(s) or more | 18.1 | 7 | 30 | 130 | 210 | MT2 | - | - | +0.007～+0.011 | ||
5,856,817 IDR | 1 Piece(s) | 8 Day(s) or more | 18.5 | 7 | 30 | 130 | 210 | MT2 | - | - | +0.007～+0.011 | ||
5,856,817 IDR | 1 Piece(s) | 8 Day(s) or more | 18.6 | 7 | 30 | 130 | 210 | MT2 | - | - | +0.007～+0.011 | ||
4,371,452 IDR | 1 Piece(s) | 8 Day(s) or more | 19 | 7 | 30 | 130 | 210 | MT2 | 0.2–0.5 | 0.2~0.4 | +0.007～+0.011 | ||
6,443,211 IDR | 1 Piece(s) | 8 Day(s) or more | 21.2 | 8.0 | 33.5 | 150 | 230 | MT2 | - | - | +0.007～+0.011 | ||
6,727,060 IDR | 1 Piece(s) | 8 Day(s) or more | 21.6 | 8.0 | 33.5 | 150 | 230 | MT2 | - | - | +0.007～+0.011 | ||
7,031,885 IDR | 1 Piece(s) | 8 Day(s) or more | 22.3 | 8.0 | 33.5 | 160 | 240 | MT2 | - | - | +0.007～+0.011 | ||
7,317,330 IDR | 1 Piece(s) | 8 Day(s) or more | 23.7 | 8.0 | 33.5 | 151 | 250 | MT3 | - | - | +0.007～+0.011 | ||
7,317,330 IDR | 1 Piece(s) | 8 Day(s) or more | 23.9 | 8.0 | 33.5 | 151 | 250 | MT3 | - | - | +0.007～+0.011 | ||
7,601,179 IDR | 1 Piece(s) | 8 Day(s) or more | 24.3 | 8.0 | 33.5 | 156 | 255 | MT3 | - | - | +0.007～+0.011 | ||
8,201,025 IDR | 1 Piece(s) | 8 Day(s) or more | 26.3 | 8.0 | 33.5 | 156 | 255 | MT3 | - | - | +0.007～+0.011 | ||
8,201,025 IDR | 1 Piece(s) | 8 Day(s) or more | 26.4 | 8.0 | 33.5 | 156 | 255 | MT3 | - | - | +0.007～+0.011 | ||
8,201,025 IDR | 1 Piece(s) | 8 Day(s) or more | 26.7 | 8.0 | 33.5 | 156 | 255 | MT3 | - | - | +0.007～+0.011 | ||
6,125,391 IDR | 1 Piece(s) | 8 Day(s) or more | 27 | 8.0 | 33.5 | 156 | 255 | MT3 | 0.2–0.5 | 0.2~0.4 | +0.007～+0.011 | ||
8,202,849 IDR | 1 Piece(s) | 8 Day(s) or more | 28.1 | 8.0 | 39 | 161 | 260 | MT3 | - | - | +0.007～+0.011 | ||
8,772,599 IDR | 1 Piece(s) | 8 Day(s) or more | 28.6 | 8.0 | 39 | 161 | 260 | MT3 | - | - | +0.007～+0.011 | ||
8,327,788 IDR | 1 Piece(s) | 8 Day(s) or more | 31 | 9 | 39 | 201 | 300 | MT3 | 0.2~0.6 | 0.2~0.4 | +0.009～+0.014 | ||
11,192,273 IDR | 1 Piece(s) | 8 Day(s) or more | 38 | 9 | 46 | 206 | 330 | MT4 | 0.2~0.6 | 0.2~0.6 | +0.009～+0.014 | ||
12,895,141 IDR | 1 Piece(s) | 8 Day(s) or more | 42 | 10.3 | 49 | 211 | 335 | MT4 | 0.3–0.8 | 0.2~0.6 | +0.009～+0.014 | ||
14,100,304 IDR | 1 Piece(s) | 8 Day(s) or more | 46 | 10.3 | 51 | 216 | 340 | MT4 | 0.3–0.8 | 0.2~0.6 | +0.009～+0.014 | ||
19,668,767 IDR | 1 Piece(s) | 8 Day(s) or more | 47.5 | 10.3 | 51 | 226 | 350 | MT4 | - | - | +0.009～+0.014 | ||
20,101,951 IDR | 1 Piece(s) | 8 Day(s) or more | 48.5 | 10.3 | 56 | 226 | 350 | MT4 | - | - | +0.009～+0.014 |
Loading...
Basic Information
| work material | general steel / Cast Iron / Aluminum / Alloy Steel | Coating Y/N | NA | Twist | Left-hand thread 60° |
|---|---|---|---|---|---|
| Tool Material Type | Carbide |

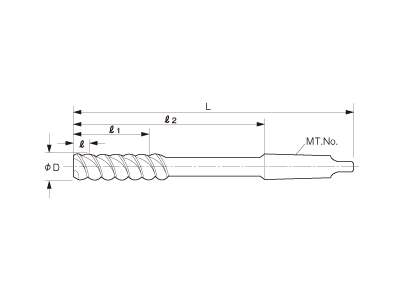

Specification/Dimensions
-
Tool Diameter(mm)
-
Blade tip ℓ(mm)
-
Blade Length ℓ1(mm)
-
Shank Lower Length ℓ2(mm)
-
Overall Length L(mm)
-
MT No.
- MT1
- MT2
- MT3
- MT4
-
type
- MX
Days to Ship
-
- All
- 8 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Tech Support
- Factory Automation, Electronics, Tools, & MRO (Maintenance, Repair and Operations)
- Tel：021-8990-4102 / FAX：021-8990-5803
- 8:30am - 5:30pm (Monday - Friday)
- Technical Inquiry
-
Bank TransferTransfer Bank
MISUMI Contact
MISUMI Kontak
Copyright © MISUMI Corporation All Rights Reserved.
How can we improve?Bagaimana Kami bisa meningkatkan Pelayanan?
How can we improve?Bagaimana Kami bisa meningkatkan Pelayanan?
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Customer Privacy Policy Walaupun Kami tidak dapat langsung menjawab saran yang ditulis di lembar ini, informasinya akan kami review untuk peningkatan pelayanan dikemudian hari
Kebijakan Privacy
Thank you for your cooperation.Terima kasih atas kerjasama anda.
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Please use the inquiry form.
Customer Privacy Policy Walaupun Kami tidak dapat langsung menjawab saran yang ditulis di lembar ini, informasinya akan kami review untuk peningkatan pelayanan dikemudian hari
Silahkan pergunakan Forms Permintaan.
Kebijakan Privacy
