Lead for Blind Hole, Mill Reamer (Straight Shank)

NIKKENKOSAKU

[Features]Realizes high-speed cutting and high efficiency, and uses carbide materials with high hardness.

Part Number

Configured Part Number is shown.

Product Specifications
Part Numbers

: 30; 45; 60

Part Number
RXS-3.30F
RXS-3.60F
RXS-3.80F
RXS-3.99F
RXS-4.02F
RXS-4.03F
RXS-4.04F
RXS-4.10F
RXS-4.20F
RXS-4.30F
RXS-4.40F
RXS-4.60F
RXS-4.70F
RXS-4.80F
RXS-4.99F
RXS-5.00F
RXS-5.02F
RXS-5.04F
RXS-5.05F
RXS-5.10F
RXS-5.20F
RXS-5.60F
RXS-5.70F
RXS-5.80F
RXS-5.97F
RXS-5.99F
RXS-6.00F
RXS-6.02F
RXS-6.04F
RXS-6.10F
RXS-6.20F
RXS-6.30F
RXS-6.40F
RXS-6.50F
RXS-6.60F
RXS-6.70F
RXS-6.99F
RXS-7.00F
RXS-7.02F
RXS-7.03F
RXS-7.04F
RXS-7.40F
RXS-7.70F
RXS-7.97F
RXS-7.98F
RXS-8.03F
RXS-8.10F
RXS-8.20F
RXS-8.40F
RXS-8.70F
RXS-8.90F
RXS-9.00F
RXS-9.03F
RXS-9.04F
RXS-9.30F
RXS-9.40F
RXS-9.50F
RXS-9.90F
RXS-9.97F
RXS-9.98F

Standard Unit Price	Minimum order quantity	Days to Ship	Tool Diameter (mm)	Blade Length ℓ1 (mm)	Shank Lower Length ℓ2 (mm)	Overall Length L (mm)	shank diameter d1 (mm)	I.D. d (mm)	Twist	Pilot Hole Mounting φ	Cutting feed mm/rev	Blade diameter tolerance
5,072,070 IDR	1 Piece(s)	8 Day(s) or more	3.3	18	35	60	4	-	Right Side Screw: 30°-40°	-	-	+0.003～+0.007
5,072,070 IDR	1 Piece(s)	8 Day(s) or more	3.6	18	35	60	4	-	Right Side Screw: 30°-40°	-	-	+0.003～+0.007
5,072,070 IDR	1 Piece(s)	8 Day(s) or more	3.8	18	35	60	4	-	Right Side Screw: 30°-40°	-	-	+0.003～+0.007
4,655,302 IDR	1 Piece(s)	8 Day(s) or more	3.99	18	35	60	4	-	Right Side Screw: 30°-40°	-	-	+0.003～+0.007
4,655,302 IDR	1 Piece(s)	8 Day(s) or more	4.02	18	35	60	4	-	Right Side Screw: 30°-40°	-	-	+0.003～+0.007
4,655,302 IDR	1 Piece(s)	8 Day(s) or more	4.03	18	35	60	4	-	Right Side Screw: 30°-40°	-	-	+0.003～+0.007
4,655,302 IDR	1 Piece(s)	8 Day(s) or more	4.04	18	35	60	4	-	Right Side Screw: 30°-40°	-	-	+0.003～+0.007
5,072,070 IDR	1 Piece(s)	8 Day(s) or more	4.1	18	35	60	4	-	Right Side Screw: 30°-40°	-	-	+0.003～+0.007
5,072,070 IDR	1 Piece(s)	8 Day(s) or more	4.2	18	35	60	4	-	Right Side Screw: 30°-40°	-	-	+0.003～+0.007
4,245,373 IDR	1 Piece(s)	8 Day(s) or more	4.3	22	45	75	5	-	Right Side Screw: 30°-40°	-	-	+0.003～+0.007
4,245,373 IDR	1 Piece(s)	8 Day(s) or more	4.4	22	45	75	5	-	Right Side Screw: 30°-40°	-	-	+0.003～+0.007
4,245,373 IDR	1 Piece(s)	8 Day(s) or more	4.6	22	45	75	5	-	Right Side Screw: 30°-40°	-	-	+0.003～+0.007
4,245,373 IDR	1 Piece(s)	8 Day(s) or more	4.7	22	45	75	5	-	Right Side Screw: 30°-40°	-	-	+0.003～+0.007
4,245,373 IDR	1 Piece(s)	8 Day(s) or more	4.8	22	45	75	5	-	Right Side Screw: 30°-40°	-	-	+0.003～+0.007
3,896,546 IDR	1 Piece(s)	8 Day(s) or more	4.99	22	45	75	5	-	Right Side Screw: 30°-40°	-	-	+0.003～+0.007
2,782,124 IDR	1 Piece(s)	8 Day(s) or more	5	22	45	75	5	2.5	Right Side Screw: 30°-40°	0.1–0.3	0.1–0.3	+0.003～+0.007
3,896,546 IDR	1 Piece(s)	8 Day(s) or more	5.02	22	45	75	5	-	Right Side Screw: 30°-40°	-	-	+0.003～+0.007
3,896,546 IDR	1 Piece(s)	8 Day(s) or more	5.04	22	45	75	5	-	Right Side Screw: 30°-40°	-	-	+0.003～+0.007
3,896,546 IDR	1 Piece(s)	8 Day(s) or more	5.05	22	45	75	5	-	Right Side Screw: 30°-40°	-	-	+0.003～+0.007
4,245,373 IDR	1 Piece(s)	8 Day(s) or more	5.1	22	45	75	5	-	Right Side Screw: 30°-40°	-	-	+0.003～+0.007
4,245,373 IDR	1 Piece(s)	8 Day(s) or more	5.2	22	45	75	5	-	Right Side Screw: 30°-40°	-	-	+0.003～+0.007
4,593,744 IDR	1 Piece(s)	8 Day(s) or more	5.6	25	65	100	6	-	Right Side Screw: 30°-40°	-	-	+0.003～+0.007
4,593,744 IDR	1 Piece(s)	8 Day(s) or more	5.7	25	65	100	6	-	Right Side Screw: 30°-40°	-	-	+0.003～+0.007
4,593,744 IDR	1 Piece(s)	8 Day(s) or more	5.8	25	65	100	6	-	Right Side Screw: 30°-40°	-	-	+0.003～+0.007
4,216,190 IDR	1 Piece(s)	8 Day(s) or more	5.97	25	65	100	6	-	Right Side Screw: 30°-40°	-	-	+0.003～+0.007
4,216,190 IDR	1 Piece(s)	8 Day(s) or more	5.99	25	65	100	6	-	Right Side Screw: 30°-40°	-	-	+0.003～+0.007
3,024,251 IDR	1 Piece(s)	8 Day(s) or more	6	25	65	100	6	3.0	Right Side Screw: 30°-40°	0.1~0.6	0.15~0.4	+0.003～+0.007
4,216,190 IDR	1 Piece(s)	8 Day(s) or more	6.02	25	65	100	6	-	Right Side Screw: 30°-40°	-	-	+0.005～+0.009
4,216,190 IDR	1 Piece(s)	8 Day(s) or more	6.04	25	65	100	6	-	Right Side Screw: 30°-40°	-	-	+0.005～+0.009
4,593,744 IDR	1 Piece(s)	8 Day(s) or more	6.1	25	65	100	6	-	Right Side Screw: 30°-40°	-	-	+0.005～+0.009
4,593,744 IDR	1 Piece(s)	8 Day(s) or more	6.2	25	65	100	6	-	Right Side Screw: 30°-40°	-	-	+0.005～+0.009
5,113,337 IDR	1 Piece(s)	8 Day(s) or more	6.3	25	70	110	8	-	Right Side Screw: 30°-40°	-	-	+0.005～+0.009
5,113,337 IDR	1 Piece(s)	8 Day(s) or more	6.4	25	70	110	8	-	Right Side Screw: 30°-40°	-	-	+0.005～+0.009
5,302,341 IDR	1 Piece(s)	8 Day(s) or more	6.5	25	70	110	8	-	Right Side Screw: 30°-40°	-	-	+0.005～+0.009
5,113,337 IDR	1 Piece(s)	8 Day(s) or more	6.6	25	70	110	8	-	Right Side Screw: 30°-40°	-	-	+0.005～+0.009
5,113,337 IDR	1 Piece(s)	8 Day(s) or more	6.7	25	70	110	8	-	Right Side Screw: 30°-40°	-	-	+0.005～+0.009
4,693,148 IDR	1 Piece(s)	8 Day(s) or more	6.99	25	70	110	8	-	Right Side Screw: 30°-40°	-	-	+0.005～+0.009
3,357,346 IDR	1 Piece(s)	8 Day(s) or more	7	25	70	110	8	3.5	Right Side Screw: 30°-40°	0.1~0.6	0.15~0.4	+0.005～+0.009
4,693,148 IDR	1 Piece(s)	8 Day(s) or more	7.02	25	70	110	8	-	Right Side Screw: 30°-40°	-	-	+0.005～+0.009
4,693,148 IDR	1 Piece(s)	8 Day(s) or more	7.03	25	70	110	8	-	Right Side Screw: 30°-40°	-	-	+0.005～+0.009
4,693,148 IDR	1 Piece(s)	8 Day(s) or more	7.04	25	70	110	8	-	Right Side Screw: 30°-40°	-	-	+0.005～+0.009
5,733,929 IDR	1 Piece(s)	8 Day(s) or more	7.4	25	85	125	8	-	Right Side Screw: 30°-40°	-	-	+0.005～+0.009
5,733,929 IDR	1 Piece(s)	8 Day(s) or more	7.7	25	85	125	8	-	Right Side Screw: 30°-40°	-	-	+0.005～+0.009
5,262,671 IDR	1 Piece(s)	8 Day(s) or more	7.97	25	85	125	8	-	Right Side Screw: 30°-40°	-	-	+0.005～+0.009
5,262,671 IDR	1 Piece(s)	8 Day(s) or more	7.98	25	85	125	8	-	Right Side Screw: 30°-40°	-	-	+0.005～+0.009
5,262,671 IDR	1 Piece(s)	8 Day(s) or more	8.03	25	85	125	8	-	Right Side Screw: 30°-40°	-	-	+0.005～+0.009
5,733,929 IDR	1 Piece(s)	8 Day(s) or more	8.1	25	85	125	8	-	Right Side Screw: 30°-40°	-	-	+0.005～+0.009
5,733,929 IDR	1 Piece(s)	8 Day(s) or more	8.2	25	85	125	8	-	Right Side Screw: 30°-40°	-	-	+0.005～+0.009
6,251,470 IDR	1 Piece(s)	8 Day(s) or more	8.4	25	90	135	10	-	Right Side Screw: 30°-40°	-	-	+0.005～+0.009
6,251,470 IDR	1 Piece(s)	8 Day(s) or more	8.7	25	90	135	10	-	Right Side Screw: 30°-40°	-	-	+0.005～+0.009
6,251,470 IDR	1 Piece(s)	8 Day(s) or more	8.9	25	90	135	10	-	Right Side Screw: 30°-40°	-	-	+0.005～+0.009
4,099,003 IDR	1 Piece(s)	8 Day(s) or more	9	25	90	135	10	4.5	Right Side Screw: 30°-40°	0.1~0.8	0.15~0.4	+0.005～+0.009
5,737,349 IDR	1 Piece(s)	8 Day(s) or more	9.03	25	90	135	10	-	Right Side Screw: 30°-40°	-	-	+0.005～+0.009
5,737,349 IDR	1 Piece(s)	8 Day(s) or more	9.04	25	90	135	10	-	Right Side Screw: 30°-40°	-	-	+0.005～+0.009
6,820,537 IDR	1 Piece(s)	8 Day(s) or more	9.3	29	100	150	10	-	Right Side Screw: 30°-40°	-	-	+0.005～+0.009
6,820,537 IDR	1 Piece(s)	8 Day(s) or more	9.4	29	100	150	10	-	Right Side Screw: 30°-40°	-	-	+0.005～+0.009
5,911,535 IDR	1 Piece(s)	8 Day(s) or more	9.5	29	100	150	10	-	Right Side Screw: 30°-40°	-	-	+0.005～+0.009
6,820,537 IDR	1 Piece(s)	8 Day(s) or more	9.9	29	100	150	10	-	Right Side Screw: 30°-40°	-	-	+0.005～+0.009
6,259,678 IDR	1 Piece(s)	8 Day(s) or more	9.97	29	100	150	10	-	Right Side Screw: 30°-40°	-	-	+0.005～+0.009
6,259,678 IDR	1 Piece(s)	8 Day(s) or more	9.98	29	100	150	10	-	Right Side Screw: 30°-40°	-	-	+0.005～+0.009

Basic Information

work material	general steel / Stainless Steel / Cast Iron / Aluminum / Heat-resistant alloy / Alloy Steel	Coating Y/N	NA	Blade tip ℓ(mm)	0.6
Tool Material Type	Carbide

Configure

91 Part Numbers

View Part Numbers

Configure Remaining Specifications

Completed

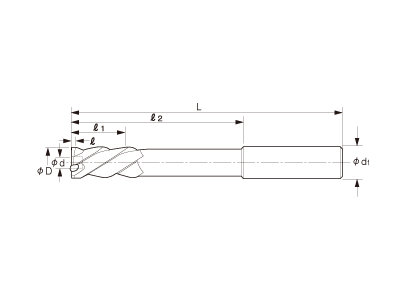

Specification/Dimensions

Tool Diameter(mm)
3.3

3.6

3.8

3.99

4.02

4.03

4.04

4.1

4.2

4.3

4.4

4.6

4.7

4.8

4.99

5

5.02

5.04

5.05

5.1

5.2

5.6

5.7

5.8

5.97

5.99

6

6.02

6.04

6.1

6.2

6.3

6.4

6.5

6.6

6.7

6.99

7

7.02

7.03

7.04

7.4

7.7

7.97

7.98

8.03

8.1

8.2

8.4

8.7

8.9

9

9.03

9.04

9.3

9.4

9.5

9.9

9.97

9.98

10.04

10.1

10.6

10.7

10.8

10.98

11.03

11.3

11.5

11.8

11.97

11.99

12

12.04

12.4

12.6

12.7

12.99

13

13.01

13.02

13.03

13.04

13.3

13.4

13.9

13.97

14

14.01

14.05

16.5
Clear
Blade Length ℓ1(mm)
18

22

25

29

30
Clear
Shank Lower Length ℓ2(mm)
35

45

65

70

85

90

100

105

110

115

125
Clear
Overall Length L(mm)
60

75

100

110

125

135

150

155

160

165

170

185
Clear
shank diameter d1(mm)
4

5

6

8

10

12

16
Clear
type
- RXS-F
Clear

Days to Ship

All

8 Day(s) or Less
Clear

Specify Alterations

The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .

Tech Support

Factory Automation, Electronics, Tools, & MRO (Maintenance, Repair and Operations): Tel：021-8990-4102 / FAX：021-8990-5803; 8:30am - 5:30pm (Monday - Friday); Technical Inquiry

Top of the page

Payment MethodMetode Pembayaran more Pelajari lebih lanjut

Bank TransferTransfer Bank

About MISUMITentang MISUMI

About this WebsiteTentang Website ini

Useful ToolsAlat Serbaguna

Customer ServiceLayanan Pelanggan

MISUMI Contact Monday to Friday (8:30am to 5:30pm) , Saturday (8:30am to 3:00pm) Order cut off time Monday to Friday: 4:30pm , Saturday : 2:00pm MISUMI Kontak Senin - Jumat (8:30 WIB - 17:30 WIB) , Sabtu (8:30WIB - 15:00 WIB) Batas Waktu Pemesanan Senin - Jumat : 16:30 WIB , Sabtu : 14:00 WIB

Tel:021-8984-0008
Fax:021-8984-0007

Inquiry Permintaan

Search by Category / Brand Pencarian dengan
Kategori / Merek

Search by Category Pencarian dengan Kategori

Search by Brand Pencarian dengan Merek

Message from MISUMI Message from MISUMI

My Favorites My Favorites

Settings Settings

How can we improve?Bagaimana Kami bisa meningkatkan Pelayanan?

Lead for Blind Hole, Mill Reamer (Straight Shank)

Basic Information

Configure

Specification/Dimensions

Tool Diameter(mm)

Blade Length ℓ1(mm)

Shank Lower Length ℓ2(mm)

Overall Length L(mm)

shank diameter d1(mm)

type

Days to Ship

Specify Alterations

Tech Support

Payment MethodMetode Pembayaran more Pelajari lebih lanjut

About MISUMITentang MISUMI

About this WebsiteTentang Website ini

Useful ToolsAlat Serbaguna

Customer ServiceLayanan Pelanggan

MISUMI Contact Monday to Friday (8:30am to 5:30pm) , Saturday (8:30am to 3:00pm) Order cut off time Monday to Friday: 4:30pm , Saturday : 2:00pm MISUMI Kontak Senin - Jumat (8:30 WIB - 17:30 WIB) , Sabtu (8:30WIB - 15:00 WIB) Batas Waktu Pemesanan Senin - Jumat : 16:30 WIB , Sabtu : 14:00 WIB

Search by Category / Brand Pencarian dengan Kategori / Merek

Search by Category Pencarian dengan Kategori

Search by Brand Pencarian dengan Merek

Message from MISUMI Message from MISUMI

My Favorites My Favorites

Settings Settings

How can we improve?Bagaimana Kami bisa meningkatkan Pelayanan?

Lead for Blind Hole, Mill Reamer (Straight Shank)

Basic Information

Configure

Specification/Dimensions

Tool Diameter(mm)

Blade Length ℓ1(mm)

Shank Lower Length ℓ2(mm)

Overall Length L(mm)

shank diameter d1(mm)

type

Days to Ship

Specify Alterations

Tech Support

Payment MethodMetode Pembayaran more Pelajari lebih lanjut

About MISUMITentang MISUMI

About this WebsiteTentang Website ini

Useful ToolsAlat Serbaguna

Customer ServiceLayanan Pelanggan

MISUMI Contact Monday to Friday (8:30am to 5:30pm) , Saturday (8:30am to 3:00pm) *Order cut off time Monday to Friday: 4:30pm , Saturday : 2:00pm MISUMI Kontak Senin - Jumat (8:30 WIB - 17:30 WIB) , Sabtu (8:30WIB - 15:00 WIB) *Batas Waktu Pemesanan Senin - Jumat : 16:30 WIB , Sabtu : 14:00 WIB

Search by Category / Brand Pencarian dengan
Kategori / Merek

MISUMI Contact Monday to Friday (8:30am to 5:30pm) , Saturday (8:30am to 3:00pm) Order cut off time Monday to Friday: 4:30pm , Saturday : 2:00pm MISUMI Kontak Senin - Jumat (8:30 WIB - 17:30 WIB) , Sabtu (8:30WIB - 15:00 WIB) Batas Waktu Pemesanan Senin - Jumat : 16:30 WIB , Sabtu : 14:00 WIB
