Broach Reamer (Morse Taper Shank)
Equipped with high precision and heavy machinability, capable of machining at a speed almost equivalent to that of drilling
Part Number
Configured Part Number is shown.
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Tool Diameter (mm) | Blade tip ℓ (mm) | Blade Length ℓ1 (mm) | Shank Lower Length ℓ2 (mm) | Overall Length L (mm) | MT No. | Pilot Hole Mounting φ | Cutting feed mm/rev | Blade diameter tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1,804,041 IDR | 1 Piece(s) | 8 Day(s) or more | 4.98 | 7.6 | 24 | 54 | 120 | MT1 | - | - | +0.002～+0.005 | ||
903,246 IDR | 1 Piece(s) | 8 Day(s) or more | 5.03 | 7.6 | 24 | 54 | 120 | MT1 | - | - | +0.002～+0.005 | ||
903,246 IDR | 1 Piece(s) | 8 Day(s) or more | 6.02 | 7.6 | 30 | 64 | 130 | MT1 | - | - | +0.003～+0.006 | ||
1,039,129 IDR | 1 Piece(s) | 8 Day(s) or more | 7.95 | 9.5 | 40 | 84 | 150 | MT1 | - | - | +0.003～+0.006 | ||
918,522 IDR | 1 Piece(s) | 8 Day(s) or more | 8.4 | 9.5 | 40 | 94 | 160 | MT1 | - | - | +0.003～+0.006 | ||
1,059,648 IDR | 1 Piece(s) | 8 Day(s) or more | 8.96 | 9.5 | 40 | 99 | 165 | MT1 | - | - | +0.003～+0.006 | ||
799,978 IDR | 1 Piece(s) | 8 Day(s) or more | 9 | 9.5 | 40 | 99.5 | 165 | MT1 | 0.2~0.4 | 0.1–0.3 | +0.003～+0.006 | ||
926,045 IDR | 1 Piece(s) | 8 Day(s) or more | 9.8 | 9.5 | 40 | 99 | 165 | MT1 | - | - | +0.003～+0.006 | ||
1,099,103 IDR | 1 Piece(s) | 8 Day(s) or more | 10.01 | 9.5 | 40 | 99 | 165 | MT1 | - | - | +0.003～+0.006 | ||
1,037,533 IDR | 1 Piece(s) | 8 Day(s) or more | 10.99 | 9.5 | 40 | 104 | 170 | MT1 | - | - | +0.003～+0.006 | ||
1,037,533 IDR | 1 Piece(s) | 8 Day(s) or more | 11.9 | 9.5 | 40 | 109 | 175 | MT1 | - | - | +0.003～+0.006 | ||
1,268,489 IDR | 1 Piece(s) | 8 Day(s) or more | 12.3 | 9.5 | 40 | 114 | 180 | MT1 | - | - | +0.003～+0.006 | ||
1,381,128 IDR | 1 Piece(s) | 8 Day(s) or more | 12.4 | 9.5 | 40 | 114 | 180 | MT1 | - | - | +0.003～+0.006 | ||
1,344,182 IDR | 1 Piece(s) | 8 Day(s) or more | 12.97 | 9.5 | 40 | 114 | 180 | MT1 | - | - | +0.003～+0.006 | ||
1,959,075 IDR | 1 Piece(s) | 8 Day(s) or more | 16.01 | 11.5 | 45 | 125 | 205 | MT2 | - | - | +0.003～+0.006 | ||
2,286,470 IDR | 1 Piece(s) | 8 Day(s) or more | 17.96 | 11.5 | 50 | 130 | 210 | MT2 | - | - | +0.003～+0.006 | ||
2,286,470 IDR | 1 Piece(s) | 8 Day(s) or more | 17.97 | 11.5 | 50 | 130 | 210 | MT2 | - | - | +0.003～+0.006 | ||
2,041,391 IDR | 1 Piece(s) | 12 Day(s) or more | 21 | 11.5 | 55 | 150 | 230 | MT2 | 0.2–0.5 | 0.15~0.4 | +0.003～+0.006 | ||
2,757,501 IDR | 1 Piece(s) | 8 Day(s) or more | 21.6 | 11.5 | 55 | 150 | 230 | MT2 | - | - | +0.003～+0.006 | ||
3,058,449 IDR | 1 Piece(s) | 8 Day(s) or more | 23.3 | 11.5 | 60 | 151 | 250 | MT3 | - | - | +0.003～+0.006 | ||
3,200,488 IDR | 1 Piece(s) | 8 Day(s) or more | 24.8 | 11.5 | 60 | 156 | 255 | MT3 | - | - | +0.004～+0.008 | ||
4,154,632 IDR | 1 Piece(s) | 8 Day(s) or more | 26.01 | 11.5 | 60 | 156 | 255 | MT3 | - | - | +0.004～+0.008 | ||
4,381,484 IDR | 1 Piece(s) | 8 Day(s) or more | 26.95 | 11.5 | 60 | 156 | 255 | MT3 | - | - | +0.004～+0.008 | ||
4,381,484 IDR | 1 Piece(s) | 8 Day(s) or more | 26.96 | 11.5 | 60 | 156 | 255 | MT3 | - | - | +0.004～+0.008 | ||
4,074,379 IDR | 1 Piece(s) | 8 Day(s) or more | 28.2 | 11.5 | 60 | 161 | 260 | MT3 | - | - | +0.004～+0.008 | ||
5,356,603 IDR | 1 Piece(s) | 8 Day(s) or more | 29.97 | 11.5 | 60 | 161 | 260 | MT3 | - | - | +0.004～+0.008 | ||
4,536,062 IDR | 1 Piece(s) | 12 Day(s) or more | 35 | 15.0 | 60 | 201 | 325 | MT4 | 0.3–0.5 | 0.2~0.6 | +0.004～+0.008 | ||
8,363,811 IDR | 1 Piece(s) | 8 Day(s) or more | 39.5 | 15.0 | 60 | 206 | 330 | MT4 | - | - | +0.004～+0.008 | ||
15,504,275 IDR | 1 Piece(s) | 8 Day(s) or more | 52.5 | 15.0 | 70 | 229 | 385 | MT5 | - | - | +0.004～+0.008 | ||
21,759,448 IDR | 1 Piece(s) | 8 Day(s) or more | 62 | 15.0 | 70 | 244 | 400 | MT5 | - | - | +0.004～+0.008 |
Loading...
Basic Information
| work material | general steel / Cast Iron / Alloy Steel | Coating Y/N | NA | Surface Treatment | Ionic Nitriding Treatment |
|---|---|---|---|---|---|
| Twist | Left-hand thread 60° | Tool Material Type | High-speed steel |

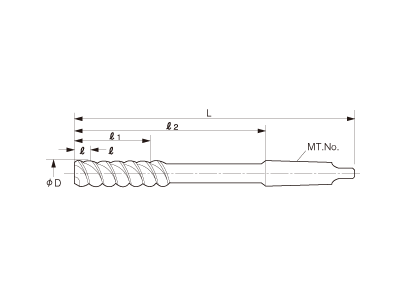

Specification/Dimensions
-
Tool Diameter(mm)
-
Blade tip ℓ(mm)
-
Blade Length ℓ1(mm)
-
Shank Lower Length ℓ2(mm)
-
Overall Length L(mm)
-
MT No.
- MT1
- MT2
- MT3
- MT4
- MT5
-
type
- BRM
Days to Ship
-
- All
- 8 Day(s) or Less
- 12 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Tech Support
- Factory Automation, Electronics, Tools, & MRO (Maintenance, Repair and Operations)
- Tel：021-8990-4102 / FAX：021-8990-5803
- 8:30am - 5:30pm (Monday - Friday)
- Technical Inquiry
-
Bank TransferTransfer Bank
MISUMI Contact
MISUMI Kontak
Copyright © MISUMI Corporation All Rights Reserved.
How can we improve?Bagaimana Kami bisa meningkatkan Pelayanan?
How can we improve?Bagaimana Kami bisa meningkatkan Pelayanan?
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Customer Privacy Policy Walaupun Kami tidak dapat langsung menjawab saran yang ditulis di lembar ini, informasinya akan kami review untuk peningkatan pelayanan dikemudian hari
Kebijakan Privacy
Thank you for your cooperation.Terima kasih atas kerjasama anda.
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Please use the inquiry form.
Customer Privacy Policy Walaupun Kami tidak dapat langsung menjawab saran yang ditulis di lembar ini, informasinya akan kami review untuk peningkatan pelayanan dikemudian hari
Silahkan pergunakan Forms Permintaan.
Kebijakan Privacy
