Broach Reamer (Straight Shank)

Broach Reamer (Straight Shank)

NIKKENKOSAKU

NIKKENKOSAKU

Equipped with high precision and heavy machinability, capable of machining at a speed almost equivalent to that of drilling

Part Number

Configured Part Number is shown.

30
45
60
  1. 1
Part Number
BRS-2.47
BRS-2.55
BRS-3.15
BRS-3.53
BRS-4.11
BRS-6.67
BRS-6.76
BRS-7.28
BRS-7.86
BRS-7.96
BRS-8.46
BRS-8.82
BRS-9.10
BRS-10.41
BRS-10.91
BRS-10.94
BRS-11.22
BRS-11.59
BRS-11.98
BRS-12.02
BRS-12.31
BRS-12.49
BRS-13.40
BRS-13.56
BRS-15.20
BRS-17.60
BRS-20.50

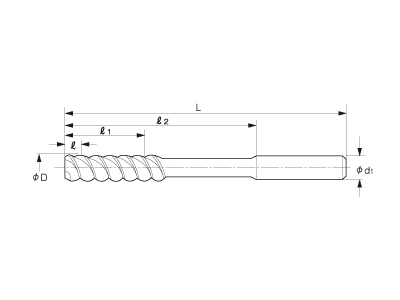

Part NumberStandard Unit PriceMinimum order quantityVolume DiscountDays to ShipTool Diameter
(mm) 		Blade tip ℓ
(mm) 		Blade Length ℓ1
(mm) 		Shank Lower Length ℓ2
(mm) 		Overall Length L
(mm) 		shank diameter d1
(mm) 		Pilot Hole Mounting φ Cutting feed mm/rev Blade diameter tolerance

1,323,435 IDR

1 Piece(s) 8 Day(s) or more 2.475.71535603--+0.002～+0.005

1,216,290 IDR

1 Piece(s) 12 Day(s) or more 2.555.71535603--+0.002～+0.005

611,873 IDR

1 Piece(s) 8 Day(s) or more 3.155.72245703.2--+0.002～+0.005

611,873 IDR

1 Piece(s) 8 Day(s) or more 3.535.72453803.5--+0.002～+0.005

724,285 IDR

1 Piece(s) 12 Day(s) or more 4.117.62453804.1--+0.002～+0.005

698,966 IDR

1 Piece(s) 8 Day(s) or more 6.679.530701106.7--+0.003～+0.006

698,966 IDR

1 Piece(s) 8 Day(s) or more 6.769.530701106.8--+0.003～+0.006

698,966 IDR

1 Piece(s) 8 Day(s) or more 7.289.530701107.3--+0.003～+0.006

750,264 IDR

1 Piece(s) 8 Day(s) or more 7.869.530701107.9--+0.003～+0.006

750,264 IDR

1 Piece(s) 8 Day(s) or more 7.969.535851258--+0.003～+0.006

774,659 IDR

1 Piece(s) 8 Day(s) or more 8.469.535901358.5--+0.003～+0.006

774,659 IDR

1 Piece(s) 8 Day(s) or more 8.829.535901358.8--+0.003～+0.006

564,679 IDR

1 Piece(s) 10 Day(s) or more 9.19.535901359.1--+0.003～+0.006

880,675 IDR

1 Piece(s) 8 Day(s) or more 10.419.54010015010.4--+0.003～+0.006

929,921 IDR

1 Piece(s) 8 Day(s) or more 10.919.54010515510.9--+0.003～+0.006

929,921 IDR

1 Piece(s) 8 Day(s) or more 10.949.54010515511--+0.003～+0.006

929,921 IDR

1 Piece(s) 8 Day(s) or more 11.229.54010515511.2--+0.003～+0.006

1,088,831 IDR

1 Piece(s) 8 Day(s) or more 11.599.54010516011.6--+0.003～+0.006

1,201,243 IDR

1 Piece(s) 8 Day(s) or more 11.989.54010516012--+0.003～+0.006

1,100,231 IDR

1 Piece(s) 8 Day(s) or more 12.029.54010516012--+0.003～+0.006

1,100,231 IDR

1 Piece(s) 8 Day(s) or more 12.319.54010516012.3--+0.003～+0.006

1,253,441 IDR

1 Piece(s) 8 Day(s) or more 12.499.54511016512.5--+0.003～+0.006

782,183 IDR

1 Piece(s) 8 Day(s) or more 13.49.54511016513.4--+0.003～+0.006

1,151,073 IDR

1 Piece(s) 8 Day(s) or more 13.569.54511517013.6--+0.003～+0.006

1,856,935 IDR

1 Piece(s) 8 Day(s) or more 15.29.545120180160.2~0.40.1–0.30～+0.018

2,749,977 IDR

1 Piece(s) 8 Day(s) or more 17.611.550130195200.2–0.50.15~0.40～+0.018

3,287,125 IDR

1 Piece(s) 8 Day(s) or more 20.511.555150215200.2–0.50.15~0.40～+0.021

Loading...

  1. 1

Basic Information

work material general steel / Cast Iron / Alloy Steel Coating Y/N NA Surface Treatment Ionic Nitriding Treatment
Twist Left-hand thread 60° Tool Material Type High-speed steel

Configure

Clear All

27 Part Numbers

View Part Numbers

Configure Remaining Specifications
Completed
loading

Specification/Dimensions

  • Tool Diameter(mm)

    • 2.47
    • 2.55
    • 3.15
    • 3.53
    • 4.11
    • 6.67
    • 6.76
    • 7.28
    • 7.86
    • 7.96
    • 8.46
    • 8.82
    • 9.1
    • 10.41
    • 10.91
    • 10.94
    • 11.22
    • 11.59
    • 11.98
    • 12.02
    • 12.31
    • 12.49
    • 13.4
    • 13.56
    • 15.2
    • 17.6
    • 20.5

    Clear

  • Blade tip ℓ(mm)

    • 5.7
    • 7.6
    • 9.5
    • 11.5

    Clear

  • Blade Length ℓ1(mm)

    • 15
    • 22
    • 24
    • 30
    • 35
    • 40
    • 45
    • 50
    • 55

    Clear

  • Shank Lower Length ℓ2(mm)

    • 35
    • 45
    • 53
    • 70
    • 85
    • 90
    • 100
    • 105
    • 110
    • 115
    • 120
    • 130
    • 150

    Clear

  • Overall Length L(mm)

    • 60
    • 70
    • 80
    • 110
    • 125
    • 135
    • 150
    • 155
    • 160
    • 165
    • 170
    • 180
    • 195
    • 215

    Clear

  • shank diameter d1(mm)

    • 3
    • 3.2
    • 3.5
    • 4.1
    • 6.7
    • 6.8
    • 7.3
    • 7.9
    • 8
    • 8.5
    • 8.8
    • 9.1
    • 10.4
    • 10.9
    • 11
    • 11.2
    • 11.6
    • 12
    • 12.3
    • 12.5
    • 13.4
    • 13.6
    • 16
    • 20

    Clear

  • type

    • BRS

    Clear

Days to Ship

    • All
    • 8 Day(s) or Less
    • 10 Day(s) or Less
    • 12 Day(s) or Less

    Clear
