Tough cut skill reamer (morse taper shank)

Tough cut skill reamer (morse taper shank)

NIKKENKOSAKU

NIKKENKOSAKU

Supports work materials such as hard-to-cut materials, die steel, tempered steel and more

Part Number

Configured Part Number is shown.

30
45
60
  1. 1
Part Number
SRM-3.0
SRM-5.0
SRM-7.0
SRM-8.5
SRM-9.0
SRM-9.5
SRM-11.5
SRM-12.5
SRM-13.0
SRM-13.5
SRM-14.0
SRM-14.5
SRM-16.0
SRM-17.5
SRM-19.0
SRM-19.5
SRM-20.5
SRM-21.5
SRM-23.5
SRM-24.0
SRM-25.0
SRM-26.0
SRM-27.0
SRM-30.5
SRM-31.0
SRM-32.0
SRM-33.0
SRM-33.5
SRM-35.5
SRM-37.0
SRM-38.5
SRM-39.5
SRM-41.0
SRM-42.0
SRM-42.5
SRM-43.5
SRM-45.0
SRM-46.5
SRM-48.0
SRM-49.0
SRM-52.0
SRM-53.0
SRM-55.0
SRM-59.0

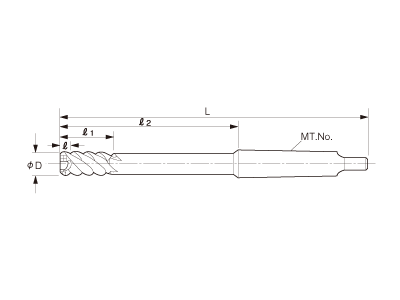

Part NumberStandard Unit PriceMinimum order quantityVolume DiscountDays to ShipTool Diameter
(mm) 		Blade tip ℓ
(mm) 		Blade Length ℓ1
(mm) 		Shank Lower Length ℓ2
(mm) 		Overall Length L
(mm) 		MT No. Pilot Hole Mounting φ Cutting feed mm/rev Blade diameter tolerance

2,244,976 IDR

1 Piece(s) 8 Day(s) or more 342044110MT1--+0.002～+0.005

2,244,976 IDR

1 Piece(s) 12 Day(s) or more 542454120MT1--+0.003～+0.007

1,540,938 IDR

1 Piece(s) 8 Day(s) or more 74.72574.5140MT10.2–0.50.1–0.3+0.005～+0.009

1,904,357 IDR

1 Piece(s) 8 Day(s) or more 8.55.63094160MT1--+0.005～+0.009

1,904,357 IDR

1 Piece(s) 8 Day(s) or more 95.83099.5165MT10.2~0.60.15–0.3+0.005～+0.009

2,101,113 IDR

1 Piece(s) 8 Day(s) or more 9.56.63099165MT1--+0.005～+0.009

2,373,563 IDR

1 Piece(s) 8 Day(s) or more 11.57.530109175MT1--+0.006～+0.010

2,449,028 IDR

1 Piece(s) 8 Day(s) or more 12.57.730114180MT1--+0.006～+0.010

2,561,668 IDR

1 Piece(s) 8 Day(s) or more 137.730114.5180MT10.2~0.80.15–0.3+0.006～+0.010

2,630,738 IDR

1 Piece(s) 8 Day(s) or more 13.57.935114180MT1--+0.006～+0.010

2,630,738 IDR

1 Piece(s) 8 Day(s) or more 147.935114.5180MT10.2~0.80.15–0.3+0.006～+0.010

2,691,155 IDR

1 Piece(s) 8 Day(s) or more 14.58.135120200MT2--+0.006～+0.010

2,872,864 IDR

1 Piece(s) 8 Day(s) or more 169.635125205MT20.2~1.00.15–0.3+0.006～+0.010

3,115,219 IDR

1 Piece(s) 8 Day(s) or more 17.510.240130210MT2--+0.006～+0.010

3,296,701 IDR

1 Piece(s) 8 Day(s) or more 1911.040130210MT20.2～1.20.15~0.5+0.007～+0.011

3,463,362 IDR

1 Piece(s) 8 Day(s) or more 19.511.040140220MT2--+0.007～+0.011

3,629,796 IDR

1 Piece(s) 8 Day(s) or more 20.511.040150230MT2--+0.007～+0.011

3,690,442 IDR

1 Piece(s) 8 Day(s) or more 21.511.240150230MT2--+0.007～+0.011

4,023,309 IDR

1 Piece(s) 8 Day(s) or more 23.511.640151250MT3--+0.007～+0.011

4,023,309 IDR

1 Piece(s) 8 Day(s) or more 2411.840151250MT30.2～1.20.2–0.5+0.007～+0.011

4,174,696 IDR

1 Piece(s) 12 Day(s) or more 2511.840156255MT30.2～1.20.2–0.5+0.007～+0.011

4,280,484 IDR

1 Piece(s) 8 Day(s) or more 2612.540156255MT30.2 to 1.50.2–0.5+0.007～+0.011

4,386,500 IDR

1 Piece(s) 8 Day(s) or more 2712.540156255MT30.2 to 1.50.2–0.5+0.007～+0.011

5,219,124 IDR

1 Piece(s) 8 Day(s) or more 30.512.545201300MT3--+0.009～+0.014

5,219,124 IDR

1 Piece(s) 8 Day(s) or more 3112.545201300MT30.25 to 1.50.2–0.5+0.009～+0.014

5,415,881 IDR

1 Piece(s) 8 Day(s) or more 3212.545201300MT30.25 to 1.50.2–0.5+0.009～+0.014

5,537,173 IDR

1 Piece(s) 8 Day(s) or more 3312.545201325MT40.25 to 1.50.2–0.5+0.009～+0.014

5,597,362 IDR

1 Piece(s) 8 Day(s) or more 33.513.048201325MT4--+0.009～+0.014

6,066,797 IDR

1 Piece(s) 8 Day(s) or more 35.513.548206330MT4--+0.009～+0.014

6,354,294 IDR

1 Piece(s) 8 Day(s) or more 3713.552206330MT40.25 to 1.50.2–0.5+0.009～+0.014

6,869,099 IDR

1 Piece(s) 8 Day(s) or more 38.513.552206330MT4--+0.009～+0.014

7,201,966 IDR

1 Piece(s) 8 Day(s) or more 39.513.552206330MT4--+0.009～+0.014

8,851,712 IDR

1 Piece(s) 8 Day(s) or more 4114.055206330MT40.25 to 1.50.25～0.6+0.009～+0.014

9,063,744 IDR

1 Piece(s) 8 Day(s) or more 4214.055211335MT40.25 to 1.50.25～0.6+0.009～+0.014

9,275,548 IDR

1 Piece(s) 8 Day(s) or more 42.514.055211335MT4--+0.009～+0.014

9,487,581 IDR

1 Piece(s) 8 Day(s) or more 43.514.055211335MT4--+0.009～+0.014

9,714,660 IDR

1 Piece(s) 8 Day(s) or more 4514.055211335MT40.25 to 1.50.25～0.6+0.009～+0.014

10,138,496 IDR

1 Piece(s) 8 Day(s) or more 46.514.560216340MT4--+0.009～+0.014

10,365,348 IDR

1 Piece(s) 8 Day(s) or more 4814.560226350MT40.25 to 1.50.25～0.6+0.009～+0.014

10,577,380 IDR

1 Piece(s) 8 Day(s) or more 4914.560226350MT40.25 to 1.50.25～0.6+0.009～+0.014

11,273,666 IDR

1 Piece(s) 8 Day(s) or more 5215.060229385MT5--+0.012～+0.017

11,833,841 IDR

1 Piece(s) 8 Day(s) or more 5315.060229385MT5--+0.012～+0.017

13,029,656 IDR

1 Piece(s) 8 Day(s) or more 5515.060244400MT5--+0.012～+0.017

15,224,301 IDR

1 Piece(s) 8 Day(s) or more 5915.060244400MT5--+0.012～+0.017

Loading...

  1. 1

Basic Information

work material general steel / Stainless Steel / Cast Iron / Aluminum / Heat-resistant alloy / Alloy Steel Coating Y/N NA Surface Treatment Ionic Nitriding Treatment
Twist Left-hand thread 45° Tool Material Type Powder high-speed steel

Configure

Clear All

44 Part Numbers

View Part Numbers

Configure Remaining Specifications
Completed
loading

Specification/Dimensions

  • Tool Diameter(mm)

    • 3
    • 5
    • 7
    • 8.5
    • 9
    • 9.5
    • 11.5
    • 12.5
    • 13
    • 13.5
    • 14
    • 14.5
    • 16
    • 17.5
    • 19
    • 19.5
    • 20.5
    • 21.5
    • 23.5
    • 24
    • 25
    • 26
    • 27
    • 30.5
    • 31
    • 32
    • 33
    • 33.5
    • 35.5
    • 37
    • 38.5
    • 39.5
    • 41
    • 42
    • 42.5
    • 43.5
    • 45
    • 46.5
    • 48
    • 49
    • 52
    • 53
    • 55
    • 59

    Clear

  • Blade tip ℓ(mm)

    • 4
    • 4.7
    • 5.6
    • 5.8
    • 6.6
    • 7.5
    • 7.7
    • 7.9
    • 8.1
    • 9.6
    • 10.2
    • 11.0
    • 11.2
    • 11.6
    • 11.8
    • 12.5
    • 13.0
    • 13.5
    • 14.0
    • 14.5
    • 15.0

    Clear

  • Blade Length ℓ1(mm)

    • 20
    • 24
    • 25
    • 30
    • 35
    • 40
    • 45
    • 48
    • 52
    • 55
    • 60

    Clear

  • Shank Lower Length ℓ2(mm)

    • 44
    • 54
    • 74.5
    • 94
    • 99
    • 99.5
    • 109
    • 114
    • 114.5
    • 120
    • 125
    • 130
    • 140
    • 150
    • 151
    • 156
    • 201
    • 206
    • 211
    • 216
    • 226
    • 229
    • 244

    Clear

  • Overall Length L(mm)

    • 110
    • 120
    • 140
    • 160
    • 165
    • 175
    • 180
    • 200
    • 205
    • 210
    • 220
    • 230
    • 250
    • 255
    • 300
    • 325
    • 330
    • 335
    • 340
    • 350
    • 385
    • 400

    Clear

  • MT No.

    • MT1
    • MT2
    • MT3
    • MT4
    • MT5

    Clear

  • type

    • SRM

    Clear

Days to Ship

    • All
    • 8 Day(s) or Less
    • 12 Day(s) or Less
