Balance-Cut Boring Bar for Large Diameters

Balance-Cut Boring Bar for Large Diameters

[Features]
· Processing diameter: φ130-φ580 mm. Boring bar with fine adjustment screw.

Part Number

Configured Part Number is shown.

Part Number
BT50-RAC180-235
BT50-RAC180-285
BT50-RAC280-185
BT50-RAC280-285
BT50-RAC330-210
BT50-RAC480-210

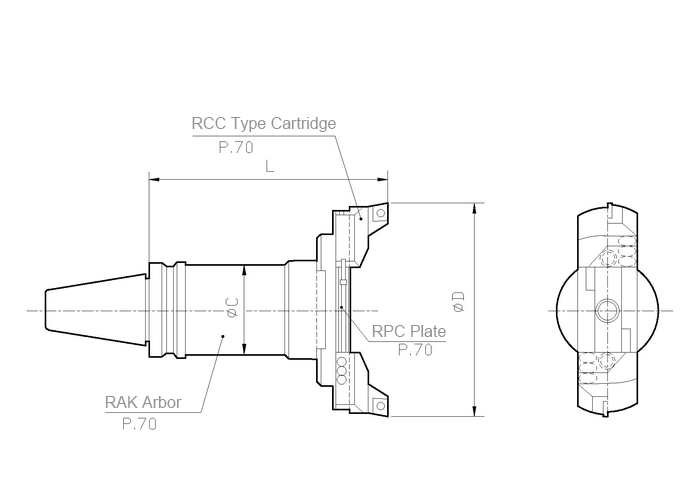

Part NumberStandard Unit PriceMinimum order quantityVolume DiscountDays to ShipOverall length (L)
(mm)
Outer Diameter (D)
(φ)
RAK Arbor Code NO. RPC Plate NO. Weight
(kg)

22,307,285 IDR

1 Piece(s) 10 Day(s) or more 235180~230BT50-RAK-160APRC-18013.1

23,157,729 IDR

1 Piece(s) 10 Day(s) or more 285180~230BT50-RAK-210APRC-18015.8

22,828,709 IDR

1 Piece(s) 10 Day(s) or more 185280~330BT50-RAK-110APRC-28011.7

24,237,083 IDR

1 Piece(s) 10 Day(s) or more 285280~330BT50-RAK-210APRC-28017.1

26,885,652 IDR

1 Piece(s) 10 Day(s) or more 210330~380BT50-RAK330-125PRC-33018.5

27,265,220 IDR

1 Piece(s) 10 Day(s) or more 210480~530BT50-RAK330-125PRC-48021

Loading...

  1. 1

Basic Information

Machining Application Other Mounting Method Other Applicable Holder NO.50
RCC Type Cartridge NO. Iron, Cast Heavy Grinding RCC-130, 2/Includes Insertion Tip CN08
