- Penghentian penjualan kategori produk pneumatik Seri Ekonomi (E-series). Info Detail
Notice of End of Sales for Economy Series Pneumatic Equipment Category. More information.

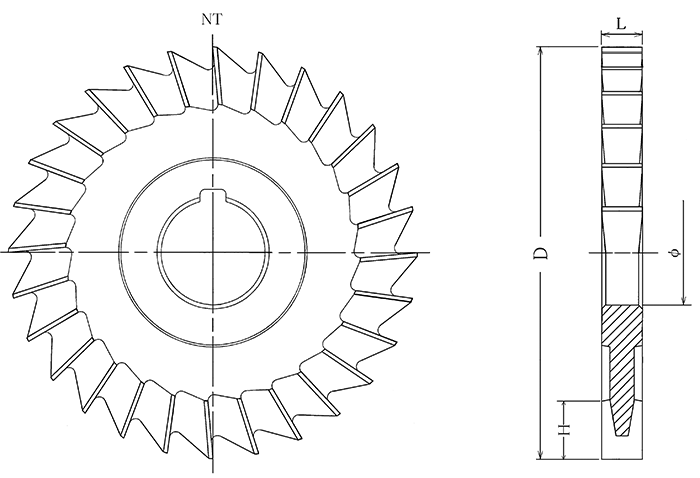

Side Cutter (Regular Blade)
There are cutting edges on the outer periphery and the side, making it suitable for general applications such as grooving, step cutting, side cutting and width setting.
Part Number
Configured Part Number is shown.
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Blade diameter (D) (φ mm) | Blade width (L) (mm) | Number of flutes (sheet) | Blade width tolerance | Side Blade Length |
|---|---|---|---|---|---|---|---|---|---|
1,488,608 IDR | 1 Piece(s) | 8 Day(s) or more | 75 | 3 | 22 | 0～+0.05 | 10.5 | ||
1,361,680 IDR | 1 Piece(s) | 8 Day(s) or more | 75 | 3.5 | 22 | 0～+0.05 | 10.5 | ||
1,363,112 IDR | 1 Piece(s) | 8 Day(s) or more | 75 | 4 | 22 | 0～+0.05 | 10.5 | ||
1,319,008 IDR | 1 Piece(s) | 8 Day(s) or more | 75 | 4.5 | 22 | 0～+0.05 | 10.5 | ||
1,320,212 IDR | 1 Piece(s) | 12 Day(s) or more | 75 | 5 | 22 | 0～+0.05 | 10.5 | ||
1,321,415 IDR | 1 Piece(s) | 8 Day(s) or more | 75 | 5.5 | 22 | 0～+0.05 | 10.5 | ||
1,322,618 IDR | 1 Piece(s) | 8 Day(s) or more | 75 | 6 | 22 | 0～+0.05 | 10.5 | ||
1,428,698 IDR | 1 Piece(s) | 8 Day(s) or more | 75 | 6.5 | 22 | 0～+0.05 | 10.5 | ||
1,431,333 IDR | 1 Piece(s) | 8 Day(s) or more | 75 | 7 | 22 | 0～+0.05 | 10.5 | ||
1,432,536 IDR | 1 Piece(s) | 8 Day(s) or more | 75 | 7.5 | 22 | 0～+0.06 | 10.5 | ||
1,433,739 IDR | 1 Piece(s) | 8 Day(s) or more | 75 | 8 | 22 | 0～+0.06 | 10.5 | ||
1,563,074 IDR | 1 Piece(s) | 8 Day(s) or more | 75 | 8.5 | 22 | 0～+0.06 | 10.5 | ||
1,565,481 IDR | 1 Piece(s) | 8 Day(s) or more | 75 | 9 | 22 | 0～+0.06 | 10.5 | ||
1,568,116 IDR | 1 Piece(s) | 9 Day(s) or more | 75 | 10 | 22 | 0～+0.06 | 10.5 | ||
1,745,164 IDR | 1 Piece(s) | 8 Day(s) or more | 75 | 11 | 22 | 0～+0.06 | 10.5 | ||
1,749,002 IDR | 1 Piece(s) | 8 Day(s) or more | 75 | 12 | 22 | 0～+0.07 | 10.5 | ||
1,902,795 IDR | 1 Piece(s) | 8 Day(s) or more | 75 | 13 | 22 | 0～+0.07 | 10.5 | ||
1,906,634 IDR | 1 Piece(s) | 8 Day(s) or more | 75 | 14 | 22 | 0～+0.07 | 10.5 | ||
2,037,172 IDR | 1 Piece(s) | 8 Day(s) or more | 75 | 15 | 22 | 0～+0.07 | 10.5 | ||
2,041,010 IDR | 1 Piece(s) | 8 Day(s) or more | 75 | 16 | 22 | 0～+0.07 | 10.5 | ||
2,450,838 IDR | 1 Piece(s) | 8 Day(s) or more | 75 | 17 | 22 | 0～+0.07 | 10.5 | ||
2,454,676 IDR | 1 Piece(s) | 8 Day(s) or more | 75 | 18 | 22 | 0～+0.07 | 10.5 | ||
2,841,476 IDR | 1 Piece(s) | 8 Day(s) or more | 75 | 19 | 22 | 0～+0.07 | 10.5 | ||
2,845,087 IDR | 1 Piece(s) | 8 Day(s) or more | 75 | 20 | 22 | 0～+0.07 | 10.5 | ||
3,247,353 IDR | 1 Piece(s) | 8 Day(s) or more | 75 | 22 | 22 | 0～+0.07 | 10.5 | ||
3,377,891 IDR | 1 Piece(s) | 8 Day(s) or more | 75 | 23 | 22 | 0～+0.07 | 10.5 | ||
3,380,298 IDR | 1 Piece(s) | 8 Day(s) or more | 75 | 24 | 22 | 0～+0.07 | 10.5 | ||
3,477,156 IDR | 1 Piece(s) | 8 Day(s) or more | 75 | 25 | 22 | 0～+0.07 | 10.5 | ||
2,242,564 IDR | 1 Piece(s) | 12 Day(s) or more | 100 | 3 | 28 | 0～+0.05 | 14 | ||
2,012,191 IDR | 1 Piece(s) | 8 Day(s) or more | 100 | 3.5 | 28 | 0～+0.05 | 14 | ||
2,014,598 IDR | 1 Piece(s) | 8 Day(s) or more | 100 | 4 | 28 | 0～+0.05 | 14 | ||
2,018,437 IDR | 1 Piece(s) | 8 Day(s) or more | 100 | 4.5 | 28 | 0～+0.05 | 14 | ||
2,020,843 IDR | 1 Piece(s) | 8 Day(s) or more | 100 | 5 | 28 | 0～+0.05 | 14 | ||
2,023,478 IDR | 1 Piece(s) | 8 Day(s) or more | 100 | 5.5 | 28 | 0～+0.05 | 14 | ||
2,027,088 IDR | 1 Piece(s) | 8 Day(s) or more | 100 | 6 | 28 | 0～+0.05 | 14 | ||
2,204,365 IDR | 1 Piece(s) | 8 Day(s) or more | 100 | 6.5 | 28 | 0～+0.05 | 14 | ||
2,206,772 IDR | 1 Piece(s) | 8 Day(s) or more | 100 | 7 | 28 | 0～+0.05 | 14 | ||
2,210,610 IDR | 1 Piece(s) | 8 Day(s) or more | 100 | 7.5 | 28 | 0～+0.06 | 14 | ||
2,213,017 IDR | 1 Piece(s) | 8 Day(s) or more | 100 | 8 | 28 | 0～+0.06 | 14 | ||
2,448,431 IDR | 1 Piece(s) | 8 Day(s) or more | 100 | 8.5 | 28 | 0～+0.06 | 14 | ||
2,452,269 IDR | 1 Piece(s) | 8 Day(s) or more | 100 | 9 | 28 | 0～+0.06 | 14 | ||
2,454,676 IDR | 1 Piece(s) | 8 Day(s) or more | 100 | 9.5 | 28 | 0～+0.06 | 14 | ||
2,457,083 IDR | 1 Piece(s) | 12 Day(s) or more | 100 | 10 | 28 | 0～+0.06 | 14 | ||
2,845,087 IDR | 1 Piece(s) | 8 Day(s) or more | 100 | 10.5 | 28 | 0～+0.06 | 14 | ||
2,847,721 IDR | 1 Piece(s) | 8 Day(s) or more | 100 | 11 | 28 | 0～+0.06 | 14 | ||
2,853,966 IDR | 1 Piece(s) | 8 Day(s) or more | 100 | 12 | 28 | 0～+0.07 | 14 | ||
3,126,670 IDR | 1 Piece(s) | 8 Day(s) or more | 100 | 13 | 26 | 0～+0.07 | 14 | ||
3,132,915 IDR | 1 Piece(s) | 8 Day(s) or more | 100 | 14 | 26 | 0～+0.07 | 14 | ||
3,372,168 IDR | 1 Piece(s) | 8 Day(s) or more | 100 | 15 | 26 | 0～+0.07 | 14 | ||
3,458,602 IDR | 1 Piece(s) | 8 Day(s) or more | 100 | 16 | 26 | 0～+0.07 | 14 | ||
3,837,385 IDR | 1 Piece(s) | 8 Day(s) or more | 100 | 17 | 26 | 0～+0.07 | 14 | ||
3,843,630 IDR | 1 Piece(s) | 8 Day(s) or more | 100 | 18 | 26 | 0～+0.07 | 14 | ||
4,116,562 IDR | 1 Piece(s) | 8 Day(s) or more | 100 | 19 | 26 | 0～+0.07 | 14 | ||
4,122,807 IDR | 1 Piece(s) | 8 Day(s) or more | 100 | 20 | 26 | 0～+0.07 | 14 | ||
4,763,870 IDR | 1 Piece(s) | 8 Day(s) or more | 100 | 22 | 26 | 0～+0.07 | 14 | ||
5,223,070 IDR | 1 Piece(s) | 8 Day(s) or more | 100 | 23 | 26 | 0～+0.07 | 14 | ||
5,229,315 IDR | 1 Piece(s) | 8 Day(s) or more | 100 | 24 | 26 | 0～+0.07 | 14 | ||
5,573,216 IDR | 1 Piece(s) | 8 Day(s) or more | 100 | 25 | 26 | 0～+0.07 | 14 | ||
5,857,547 IDR | 1 Piece(s) | 8 Day(s) or more | 100 | 26 | 26 | 0～+0.07 | 14 | ||
6,475,582 IDR | 1 Piece(s) | 8 Day(s) or more | 100 | 28 | 26 | 0～+0.07 | 14 |
Loading...
Basic Information
| Tool Material Type | High-speed steel (SKH51) | Machining Application | Side surface, groove | Hole Diameter (ø)(φ mm) | 25.4 |
|---|---|---|---|---|---|
| Torsion Angle (θ)(°) | No torsion | Coating | Non-Coated | O.D. Tolerance | 0～+0.5 |
Specification/Dimensions
-
Blade diameter (D)(φ mm)
- 75
- 100
- 125
- 150
- 175
- 200
-
Blade width (L)(mm)
-
Number of flutes(sheet)
-
type
- SC
Days to Ship
-
- All
- 8 Day(s) or Less
- 9 Day(s) or Less
- 12 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Tech Support
- Factory Automation, Electronics, Tools, & MRO (Maintenance, Repair and Operations)
- Tel：021-8990-4102 / FAX：021-8990-5803
- 8:30am - 5:30pm (Monday - Friday)
- Technical Inquiry
-
Bank TransferTransfer Bank
MISUMI Contact
MISUMI Kontak
Copyright © MISUMI Corporation All Rights Reserved.
How can we improve?Bagaimana Kami bisa meningkatkan Pelayanan?
How can we improve?Bagaimana Kami bisa meningkatkan Pelayanan?
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Customer Privacy Policy Walaupun Kami tidak dapat langsung menjawab saran yang ditulis di lembar ini, informasinya akan kami review untuk peningkatan pelayanan dikemudian hari
Kebijakan Privacy
Thank you for your cooperation.Terima kasih atas kerjasama anda.
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Please use the inquiry form.
Customer Privacy Policy Walaupun Kami tidak dapat langsung menjawab saran yang ditulis di lembar ini, informasinya akan kami review untuk peningkatan pelayanan dikemudian hari
Silahkan pergunakan Forms Permintaan.
Kebijakan Privacy
