Stone Surface Plate Angle Block Set (JIS Class 00)
An affordable type that comes with precision stone surface plate and dedicated angle stand.
Japanese Only
Part Number
Configured Part Number is shown.
| Part Number |
|---|
| GPSA04560-00 |
| GPSA05075-00 |
| GPSA06090-00 |
| GPSA07510-00 |
| GPSA09018-00 |
| GPSA10010-00 |
| GPSA10015-00 |
| GPSA10020-00 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Flat surface precision (μm) | A (mm) | B (mm) | C (mm) | Mass (kg) | Angle Stand |
|---|---|---|---|---|---|---|---|---|---|---|
50,164,966 IDR | 1 Piece(s) | 69 Day(s) or more | 2.5 | 600 | 450 | 100 | 115 | GP04560-SA | ||
65,238,149 IDR | 1 Piece(s) | 69 Day(s) or more | 3 | 750 | 500 | 125 | 170 | GP05075-SA | ||
90,396,573 IDR | 1 Piece(s) | 11 Day(s) or more | 3 | 900 | 600 | 125 | 230 | GP06090-SA | ||
121,588,056 IDR | 1 Piece(s) | 11 Day(s) or more | 3 | 1000 | 750 | 150 | 377 | GP07510-SA | ||
304,560,833 IDR | 1 Piece(s) | 69 Day(s) or more | 4.5 | 1800 | 900 | 200 | 983 | GP09018-SA | ||
160,543,611 IDR | 1 Piece(s) | 69 Day(s) or more | 3.5 | 1000 | 1000 | 150 | 485 | GP10010-SA | ||
266,785,833 IDR | 1 Piece(s) | 69 Day(s) or more | 4 | 1500 | 1000 | 200 | 913 | GP10015-SA | ||
373,028,056 IDR | 1 Piece(s) | 69 Day(s) or more | 4.5 | 2000 | 1000 | 250 | 1506 | GP10020-SA |
Loading...
Basic Information
| Product Type | Surface Plate + Surface Plate Panel Set | Class | Class 00 | Material | Granite |
|---|---|---|---|---|---|
| Main body: option | Main Body | Details Type | Set Product |

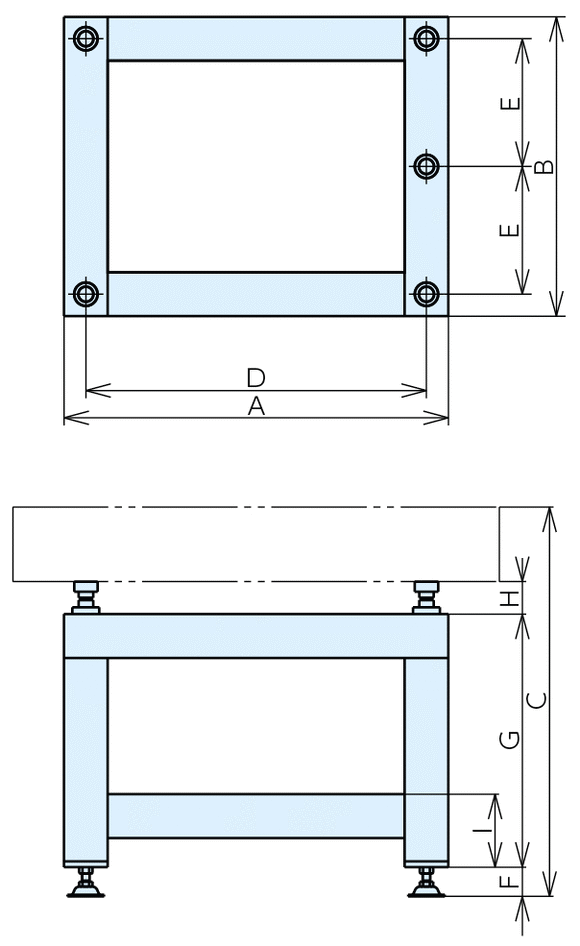

Specification/Dimensions
-
Flat surface precision(μm)
-
A(mm)
-
B(mm)
-
C(mm)
-
Mass(kg)
-
Angle Stand
- GP04560-SA
- GP05075-SA
- GP06090-SA
- GP07510-SA
- GP09018-SA
- GP10010-SA
- GP10015-SA
- GP10020-SA
-
type
- GPSA-00
Days to Ship
-
- All
- 11 Day(s) or Less
- 69 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
