Grooveless Angle Plate, Grinding Finish
FC250/annealed grooveless angle plate with ground finish.
Japanese Only
Part Number
Configured Part Number is shown.
| Part Number |
|---|
| 31 |
| 32 |
| 33 |
| 34 |
| 35 |
| 36 |
| 37 |
| 38 |
| 39 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1,907,130 IDR | 1 Piece(s) | 10 Day(s) or more | 50.8 | 50.8 | 50.8 | 15 | 9 | - | 7 | 0.005 | 0.5 | ||
2,398,007 IDR | 1 Piece(s) | 26 Day(s) or more | 76.2 | 76.2 | 76.2 | 16 | 10 | - | 20 | 0.005 | 1.4 | ||
3,405,445 IDR | 1 Piece(s) | 26 Day(s) or more | 101.6 | 101.6 | 101.6 | 21 | 13 | - | 18 | 0.01 | 2.9 | ||
5,269,508 IDR | 1 Piece(s) | 26 Day(s) or more | 127 | 127 | 127 | 23 | 13 | - | 22 | 0.01 | 5.2 | ||
6,616,763 IDR | 1 Piece(s) | 26 Day(s) or more | 152.4 | 152.4 | 152.4 | 24 | 13 | - | 30 | 0.02 | 7.4 | ||
11,149,363 IDR | 1 Piece(s) | 26 Day(s) or more | 203.2 | 203.2 | 203.2 | 27 | 14 | 125 | 33 | 0.03 | 17.3 | ||
19,487,840 IDR | 1 Piece(s) | 26 Day(s) or more | 254 | 254 | 254 | 31 | 18 | 195 | 45 | 0.03 | 30.4 | ||
28,190,532 IDR | 1 Piece(s) | 26 Day(s) or more | 304.8 | 304.8 | 304.8 | 35 | 19 | 195 | 60 | 0.03 | 50.2 | ||
106,820,934 IDR | 1 Piece(s) | 10 Day(s) or more | 406.4 | 406.4 | 406.4 | 50 | 30 | 290 | 55 | 0.04 | 135.6 |
Loading...
Basic Information
| Material | FC250 | Heat Treatment | Annealed | Surface Treatment | Paint (black scale section) |
|---|

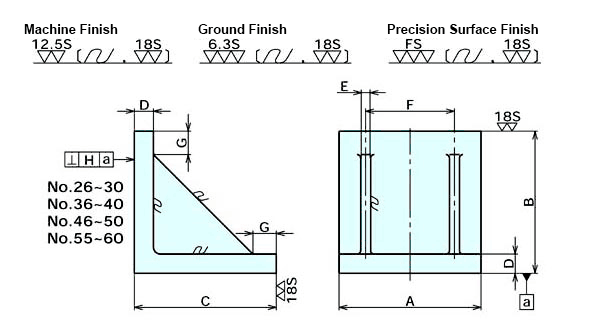

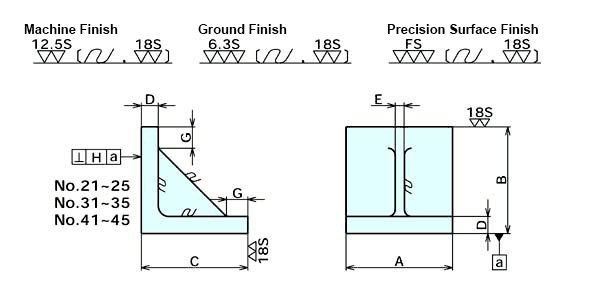

Specification/Dimensions
-
A(mm)
-
B(mm)
- 50.8
- 76.2
- 101.6
- 127
- 152.4
- 203.2
- 254
- 304.8
- 406.4
-
C(mm)
-
D(mm)
-
E(mm)
- 9
- 10
- 13
- 14
- 18
- 19
- 30
-
F(mm)
-
G(mm)
-
H(mm)
-
type
- 31
- 32
- 33
- 34
- 35
- 36
- 37
- 38
- 39
Days to Ship
-
- All
- 10 Day(s) or Less
- 26 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
