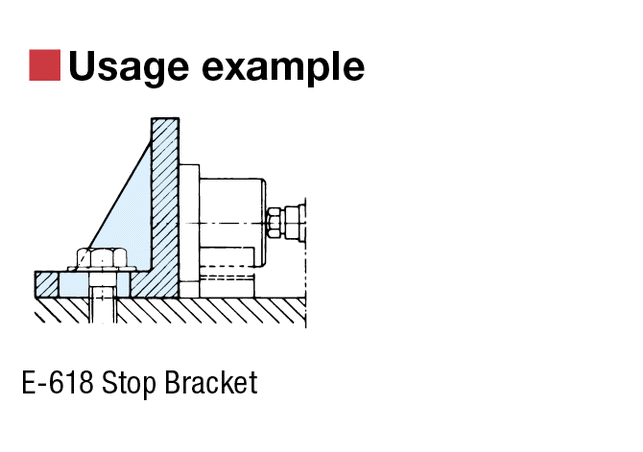

Stop Bracket
Click this image to zoom it.
Move the mouse over the image to zoom
Ideal as a stop bracket auxiliary jig for FC 250 and annealing.
Japanese Only
Part Number
Configured Part Number is shown.
| Part Number |
|---|
| 618-01 |
| 618-02 |
| 618-03 |
| 618-04 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | I (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2,554,599 IDR | 1 Piece(s) | 10 Day(s) or more | 100 | 80 | 80 | 100 | 10 | 12 | 80 | 0.03 | C10 | 2.4 | ||
3,062,393 IDR | 1 Piece(s) | 10 Day(s) or more | 125 | 80 | 100 | 125 | 12 | 32 | 80 | 0.03 | C15 | 4.2 | ||
4,457,722 IDR | 1 Piece(s) | 10 Day(s) or more | 160 | 95 | 100 | 160 | 15 | 32 | 95 | 0.04 | C20 | 6.4 | ||
6,244,014 IDR | 1 Piece(s) | 10 Day(s) or more | 200 | 100 | 125 | 200 | 18 | 57 | 100 | 0.05 | C20 | 10.6 |
Loading...
Basic Information
| Material | FC250 | Heat Treatment | Annealed | Surface Treatment | Paint (black scale section) |
|---|
Specification/Dimensions
-
A(mm)
-
B(mm)
- 80
- 95
- 100
-
C(mm)
-
D(mm)
-
E(mm)
- 10
- 12
- 15
- 18
-
F(mm)
-
G(mm)
-
H(mm)
-
I(mm)
-
type
- 618
Days to Ship
-
- All
- 10 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
