Cap for DCA Bayonet Connector

Cap for DCA Bayonet Connector

This is a DCA bayonet connector waterproof cap.

(i)Caution

  • The delivery date is unstable due to the difficulty in obtaining materials, components, etc.
    Sales of products currently in stock may be temporarily suspended in the future depending on their availability.
    Products for which orders have been suspended are not expected to be restocked anytime soon.
  • The product images are representative images only. Please refer to the manufacturer's catalog for shape details.

PDF

Japanese Only

DCA Series A Type

Waterproof metal cap (For plug)

Drawing

Drawing

Shell
Size
⌀A±0.3
⌀B +0.3
0
CL or above
14S26.54.324.5120
1832.54.332.5135
2036.04.732.5150
2239.04.732.5150
2442.54.732.5150
2848.54.732.5210
3255.05.532.5210
3661.55.532.5210

Waterproof metal cap (For receptacle)

Drawing

Drawing

Shell
Size
⌀A±0.3
⌀B +0.3
0
CL or above
14S29.24.32.3110
1836.54.32.54120
2039.94.32.54135
2243.14.32.54135
2446.64.32.54135
2853.45.52.54180
3260.05.52.54180
3665.05.52.54180

Box Receptacle

Drawing

Drawing

Drawing
Shell
Size

⌀A 0
-0.12

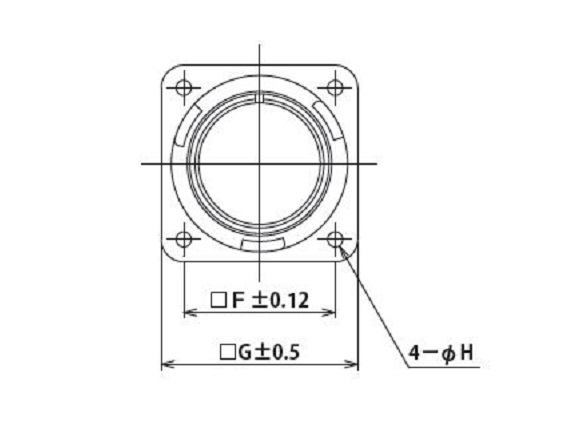

B±0.5C±0.5D±0.5E screw□F ±0.12□G ±0.54-⌀H
1830.84.019.234.71-20UNEF-2A26.9934.923.3
2034.24.019.235.21 1/8-18UNEF-2A29.3738.103.3
2237.44.019.235.51 1/4-18UNEF-2A31.7541.273.3
2440.94.020.838.01 3/8-18UNEF-2A34.9344.453.8
2846.74.020.837.71 5/8-18UNEF-2A39.6750.803.8
3253.44.022.438.01 7/8-18UNS-2A44.4556.904.5
3659.64.022.438.52 1/8-16UN-2A49.2263.504.5

Straight plug

Drawing

Drawing

Shell
Size

⌀A 0
-0.12

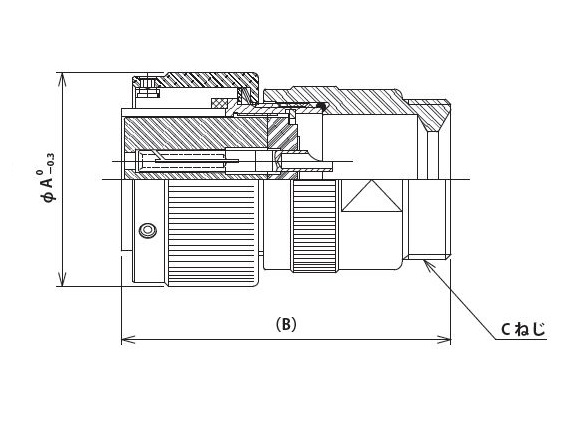

B±0.5C screw
1836.5(58.5)1-20UNEF-2A
2039.9(62.4)1 3/16-18UNEF-2A
2243.1(62.7)1 3/16-18UNEF-2A
2446.6(69.5)1 7/16-18UNEF-2A
2853.4(74.0)1 7/16-18UNEF-2A
3259.7(79.7)1 3/4-18UNS-2A
3666.0(83.8)2-18UNS-2A
Part Number
DCAPC-14S-D
DCAPC-18-D
DCAPC-20-D
DCAPC-22-D
DCAPC-24-D
DCAPC-28-D
DCAPC-32-D
DCARC-14S-D
DCARC-18-D
DCARC-22-D
DCARC-24-D
DCARC-28-D
DCARC-32-D
DCARC-36-D
Part NumberStandard Unit PriceMinimum order quantityVolume DiscountDays to ShipRoHSSpecifications Shell Size

750,129 IDR

1 Piece(s) 8 Day(s) or more 10For Plug14S

773,000 IDR

1 Piece(s) 8 Day(s) or more 10For Plug18

793,000 IDR

1 Piece(s) 8 Day(s) or more 10For Plug20

888,561 IDR

1 Piece(s) 12 Day(s) or more 10For Plug22

928,957 IDR

1 Piece(s) 8 Day(s) or more 10For Plug24

942,818 IDR

1 Piece(s) 12 Day(s) or more 10For Plug28

1,044,278 IDR

1 Piece(s) 12 Day(s) or more 10For Plug32

726,973 IDR

1 Piece(s) 8 Day(s) or more -For panel mount14S

887,833 IDR

1 Piece(s) 8 Day(s) or more 10For panel mount18

845,290 IDR

1 Piece(s) 8 Day(s) or more -For panel mount22

783,532 IDR

1 Piece(s) 8 Day(s) or more 10For panel mount24

963,607 IDR

1 Piece(s) 12 Day(s) or more -For panel mount28

950,024 IDR

1 Piece(s) 8 Day(s) or more -For panel mount32

966,039 IDR

1 Piece(s) 12 Day(s) or more -For panel mount36
