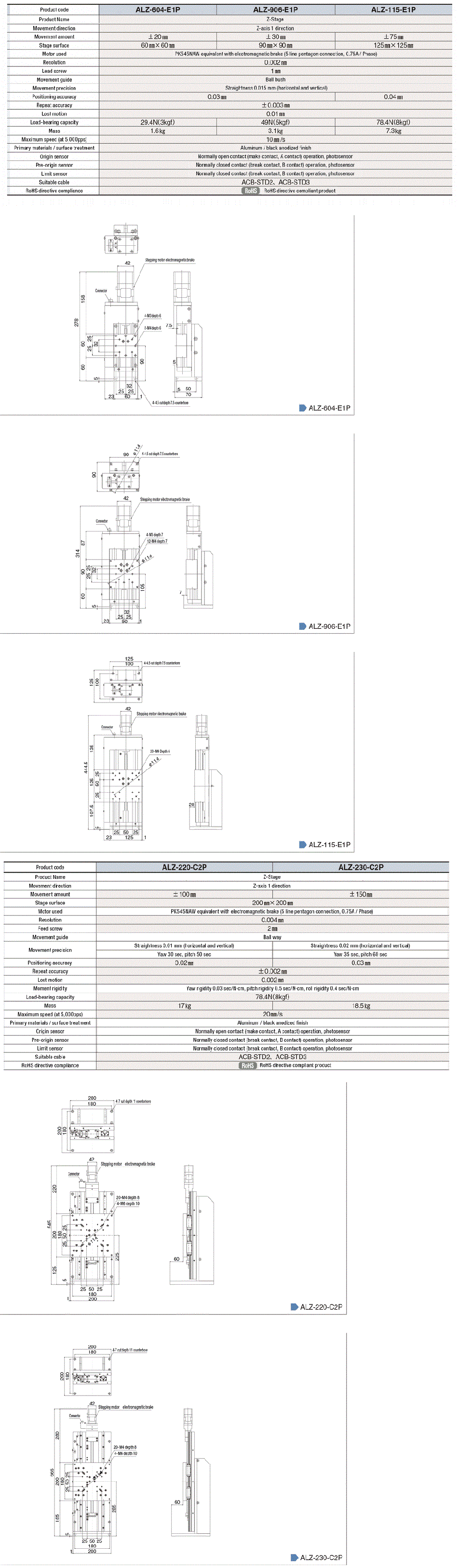

Z stage mid-accuracy type (automatic stage)
A medium precision motorized stage that uses ball bushings for the travel guide.
(i)Caution
- Some of the items are scheduled to be discontinued as of end of March in 2023. The manufacturer keep the items produced but they are not available with Misumi.
There are not the replacement items and the plan to resumption of sale. Please check the quotation and order screen for details.
Japanese Only
Part Number
Configured Part Number is shown.
| Part Number |
|---|
| ALZ-220-C2P |
| ALZ-230-C2P |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | Stroke (Z Distance) (mm) |
|---|---|---|---|---|---|
84,388,070 IDR | 1 Piece(s) | 37 Day(s) or more | ±100 | ||
92,139,202 IDR | 1 Piece(s) | 37 Day(s) or more | ±150 |
Loading...
Basic Information
| Type | Z Stage | Motor Used | Equivalent to PK545NAW | Main Material | Aluminum Alloy |
|---|---|---|---|---|---|
| Travel Guide | Ball way | Stage surface (length)(mm) | 200 | Stage surface (width)(mm) | 200 |
| Surface Treatment | White Anodizing Satin | Load Capacity (Range)(N) | 50.1~100 | Load Capacity(N) | 78.4 |
| Moment Rigidity And Pitch Rigidity("/N•cm) | 0.5 | Moment Rigidity And Yaw Rigidity("/N•cm) | 0.03 | Moment Rigidity And Roll Rigidity("/N•cm) | 0.4 |
| Moving Direction | Z Axis 1 Direction | Scale | No | Feed screw pitch(mm) | 2 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
