- Penghentian penjualan kategori produk pneumatik Seri Ekonomi (E-series). Info Detail
Notice of End of Sales for Economy Series Pneumatic Equipment Category. More information.
Pipe Frames Slot F2
(JKT Original) [Features]·This frame is inexpensive, lightweight, and easy to use for assembly . This is an Economy Series product which has more cost efficient than standard part we can provide the size from 100mm - 4000mm
Part Number
Configured Part Number is shown.
E-APF28-K-4000
Product Description
Economy Pipe Frames Series Slot F (28 mm)
Product Specifications Table
■Fixed Length (4000mm)
| Extrusion | Overall Length | Pipe Outer Diameter.D | Mass | Material | Surface Treatment, coating | Shape | Shape | |
| Type | Part No. | kg/m | 6063-T5 | Anodize | Straight | Silver | ||
| ①Standard | E-APF28-K | 4000 | 28 | 0.61 | ||||
Product Aplication
Aluminum extrusion is unique to that of not only a variety of sizes and shapes of frames that can be used depending on the application

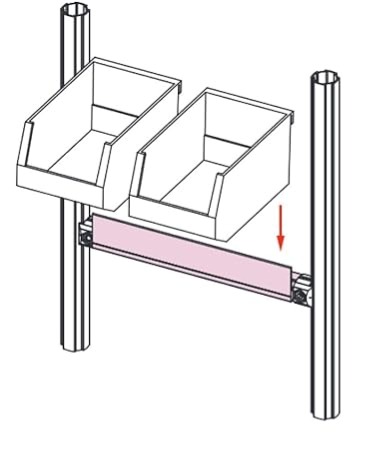

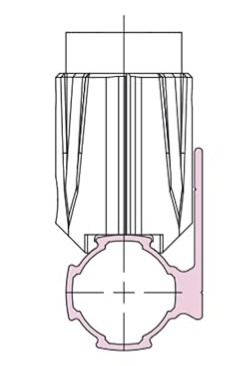

The flat section can be used to attach a parts container or as a nameplate
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
Basic Information
| Pipe Outer Dia.(Ø) | 28 | Specifications | Standard | Color | No Coating |
|---|---|---|---|---|---|
| Surface Treatment, Coating | Anodize | Length(mm) | 4000 | Shape | Straight |
| Sale Type | Sold Separately | Overall Length L(mm) | 4000 |
Please check the type/dimensions/specifications of the part E-APF28-K-4000 in the Pipe Frames Slot F2 series.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
