Linear Motor Actuator 8 Series Standard Type

Linear Motor Actuator 8 Series Standard Type

Click this image to zoom it.

Move the mouse over the image to zoom

  • Linear Motor Actuator 8 Series Standard Type
  • Linear Motor Actuator 8 Series Standard Type
  • Linear Motor Actuator 8 Series Standard Type
  • Volume Discount

MISUMI

MiSUMi Economy

MISUMI

- Economy Series Linear Motor Actuator

  • CE-Compliant
  • RoHS

(i)Caution

  • This Product is under preparation now(manual and instructions) . Please wait for official sales announcement.

PDF

Part Number

Configured Part Number is shown.

Product Overview
■ High Precision
Positioning Repeatability is ±5μm and each product is guaranteed to be inspected with a laser interferometer before shipment.
Closed-loop control between the driver and the actuator.The accuracy change is smaller than Traditional Screw Type Actuators, even after long-term use.


<MISUMI Linear Motor Actuators><Traditional Screw Type Actuators>

●Linear Motor Actuator and Driver are closed-loop control, and the driver can compensate the current position in real time.
●Motor driver and Traditional Screw Type Actuators are open-loop controls and cannot caputure the current position with high precision.

■ High Speed
Compared with the traditional screw type actuator with a lead of 10, the speed is increased by 4 times.
At high speed, the noise is up to 10% lower than that of Traditional Screw Type Actuators*1

<MISUMI Linear Motor Actuators><Traditional Screw Type Actuators>

●Since the direct drive load,achive high-speed operatoin 2.0m/s
●Speed ​​is limited by the screw lead.
Resonance and heat generated at high speed.

■ Long Lifetime
Compared with Traditional Screw Type Actuators, lifetime up to 2.5 times better.
<MISUMI Linear Motor Actuators>
<Traditional Screw Type Actuators>

●No mechanical parts such as ball screws, bearings, couplings, etc.
●There is no direct contact between the slider and the magnetic track,
maintenance-free life: 50,000 hours*2
●Friction and wear occur due to the mechanical contacting parts.
Regular maintenance also required.

■ The number of sliders can be added on the same axis
MISUMI Linear Motor Actuators has a single slider and the number of sliders can be changed according to customers' requirements.
<Advantages of being hyperactive><Use example with multi-Sliders>
产品概述06
●Simple structure and low cost
●Can be controlled individually on the same module		The 4 Sliders can be controlled individually and cooperate with the electric cylinder and gripper to perform gripping actions.


<Can be changed up to 4 Sliders>
Alterations

Sliders added(Total 2pc)

Sliders added(Total 3pc)

Sliders added(Total 4pc)

CodeB2B3B4
After specifying the number of sliders, the number of photo micro sensors on the actuator base changes from 3 to 4, and the additional sliders will be equipped with an anti-collision photo micro sensor.

ex) As shown in the figure below, the sensor changes when the number of sliders (2 pcs) is selected.


■ Easy Selection
MISUMI's selection software allows you to select the most suitable model in just one minute.
(If necessary, please ask MISUMI Sales Representative or Technical Support Staff for the selection software)


Traditional Screw Type Actuators are similar products that our company randomly purchases from online or offline markets.
*1 This value is obtained by testing in our laboratory under the conditions of speed 1m/s and acceleration 0.5G. The result is 72db for MISUMI Linear Motor Actuators and 80db for Traditional Screw Type Actuators.
*2 This value is the result obtained under ideal conditions, and the service life is affected by factors such as the use environment, use conditions, and maintenance.
*3 This value is the result obtained under ideal conditions.
 Dimensional Drawing
■Body
Main ComponentsActuator
Base		SliderCover PlateBuilt in Guide
Stroke Y≤960Stroke Y≥1020
 MaterialAluminum AlloyStainless Steel (Teflon black tape wrapping)Stainless Steel
 Surface TreatmentClear Anodized－－
■Accessory
NameQuantityOutput ModeCable Length
Photomicro Sensor3NPN2m

drawing

Please follow the selection steps~select the model and parameters to order
how to order Type－StrokeY－Driver－Extension Cable Length
 E－RAM8－S－300－N－N

TypeStroke Y
(Increment 60mm)		DriverExtension
Cable Length		Max. PayloadContinuous
Thrust
(N)		Peak
Thrust
(N)		Rated
Speed
(m/s)		Max.
Speed
(m/s)		Max.
Acceleration &
Deceleration
(G)		Positioning
Repeatability*
(μm)		Number of
Sliders (pcs)		Straightness
(mm/
300mm)
Horizontal
Installation
(kg)		Wall
Installation
(kg)
E－RAM8－S60～1800(Self Provided)
N

(Select Driver Type)
BrandPulseEtherCAT
MISUMIMA30ME30
Servotronix-DE30
PanasonicPA25PE25
(Self Provided)
N

(Cable Length Extension)
1m…C1
3m…C3
5m…C5		2013522081.52.01.5±51±0.01
Payload (The transportable weight) varies depending on the installation direction (horizontal or wall), speed, acceleration and deceleration.
*This product uses an incremental magnetic encoder with a resolution of 1μm.
This product is not intended for vertical installation.
Please ensure that the flatness of the installation base plate is within ±0.01mm/300mm, otherwise it will affect the use.



 Stroke Y(mm)
60120180240300360420480540600660720780840900
N4668810101212141416161818
P122334455667788
L(mm)27433439445451457463469475481487493499410541114

 Stroke Y(mm)
96010201080114012001260132013801440150015601620168017401800
N202022222424262628283030323234
P9910101111121213131414151516
L(mm)117412281288134814081468152815881648170817681828188819482008

追加工 Type－Stroke Y－Driver－Extension Cable Length－(B2·B3·B4)
 E－RAM8－S－300－N－N－B2

AlterationsSliders added(Total 2pc)
slider2		Sliders added(Total 3pc)
slider2		Sliders added(Total 4pc)
slider3
CodeB2B3B4
Spec.Change Number of Sliders(Total 2 pcs)
Ordering CodeB2
Y≥160
When the servo driver is selected(required), the number of drivers will be changed to 2pcs.
When the extended cable selected, the number of extention cables will be changed to 2pcs.		Change Number of Sliders(Total 3 pcs)
Ordering CodeB3
Y≥360
When the servo driver is selected(required), the number of drivers will be changed to 3pcs.
When the extended cable selected, the number of extention cables will be changed to 3pcs.		Change Number of Sliders(Total 4 pcs)
Ordering CodeB4
Y≥540
When the servo driver is selected(required), the number of drivers will be changed to 4pcs.
When the extended cable selected, the number of extention cables will be changed to 4pcs.
When the number of sliders is changed, the stroke Y dimension will become shorter.
The number of adiditional sliders: B2, B3, B4 is available.
When additional sliders are selected, the number of photomicro sensors on the actuator  base changes from 3 to 4, and the additional sliders will be equipped with an anti-collision photomicro sensor.
When changing the slider quantity, the same quantity of drivers and cables a

■ Drivers Specification

＜Download driver settings file＞
Files to optimize the settings of the driver is available
-MISUMI Driver(E-RMA&E-RME)Setting Files & Quick Start Guide & Manual all included
-Servotronix and Panasonic drivers

＜Download driver settings manual＞
-Servotronics setting manual>> link.
-Panasonic setting manual >> link.
-Panasonic Auto Tuning setting manual >> link.

＜Download driver debugging manual＞
Servotronix / Panasonic

For details about non MISUMI Driver, please refer to the official information of the driver manufacturer (Servotronix) , (Panasonic EN / KR  / JP / CH)
CodeMA30ME30DE30PA25PE25
BrandMISUMIServotronixPanasonic
ModelE-RMA30E-RME30CDHD-0032AEC2MBDLN25SLMBDLN25BL
Input VoltageSingle Phase/Three Phase AC220 ±10% 50/60HzSingle Phase AC220 AC220 ±10% 50/60HzSingle Phase/Three Phase  AC220 ±10% 50/60Hz
Input CurrentRated Current 2.8A; Max Current 9ARated Current 3A; Max Current 9ARated Current 2.4A; Max Current 7.3A
Mass(kg)10.751
Pulse Input(Single-ended/Differential)〇--〇-
EtherCAT-〇〇-〇
One Touch Auto-Tuning〇〇〇〇〇
Gantry dual drive synchronization*1〇〇---
Position Comparison/ Flyring Trigger〇〇---
STO*2〇〇〇--
*1 To achieve Gantry Dual-Drive Synchronization, 2 sets of this product need to be purchased.
*2 The product is equipped with STO function, and certification is in progress.
Auto-tuning reduces debugging difficulties.
For details, please refer to the official information of the driver manufacturer
-MISUMI Driver(E-RMA&E-RME)Setting Files & Quick Start Guide & Manual all included)
-Servotronix
-Panasonic EN / KR  / JP / CH


Driver Dimensions Drawing
MA30ME30
驱动器尺寸图01驱动器尺寸图02
DE30PA25/PE25
驱动器尺寸图03驱动器尺寸图04

■ Extended Cable Specification
<Wiring Diagram>

Driver wiring: please refer to the driver manufacturer’s official data (Panasonic, Servotronics).
For the wiring diagram, please download and check the driver's manual
-MISUMI Driver(E-RMA&E-RME)Setting Files & Quick Start Guide & Manual all included)
-Servotronix
-Panasonic EN / KR  / JP / CH

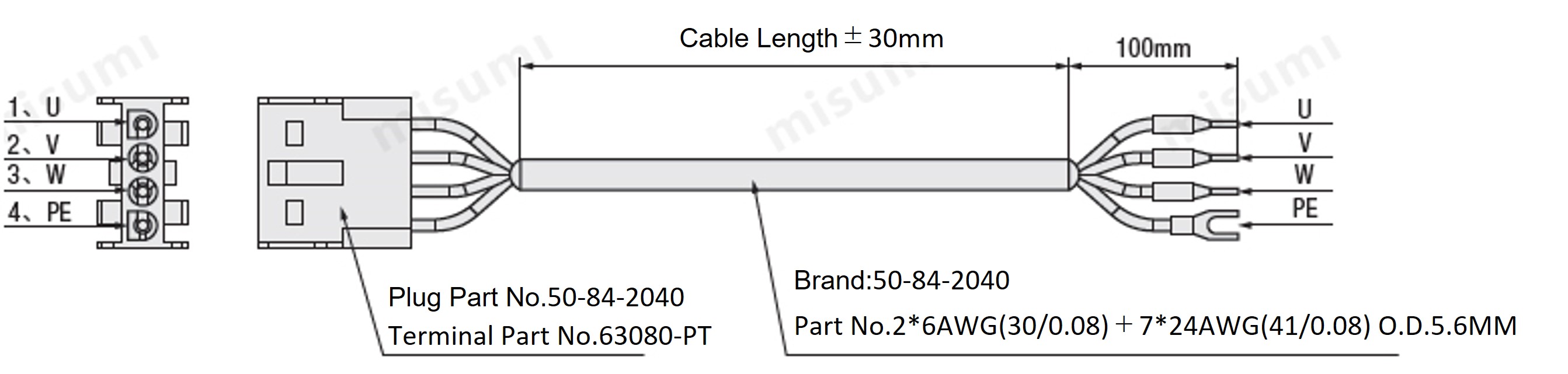

<Power Extension Cable>
Applicable Driver：General purpose (MISUMI, Servotronics, Panasonic)

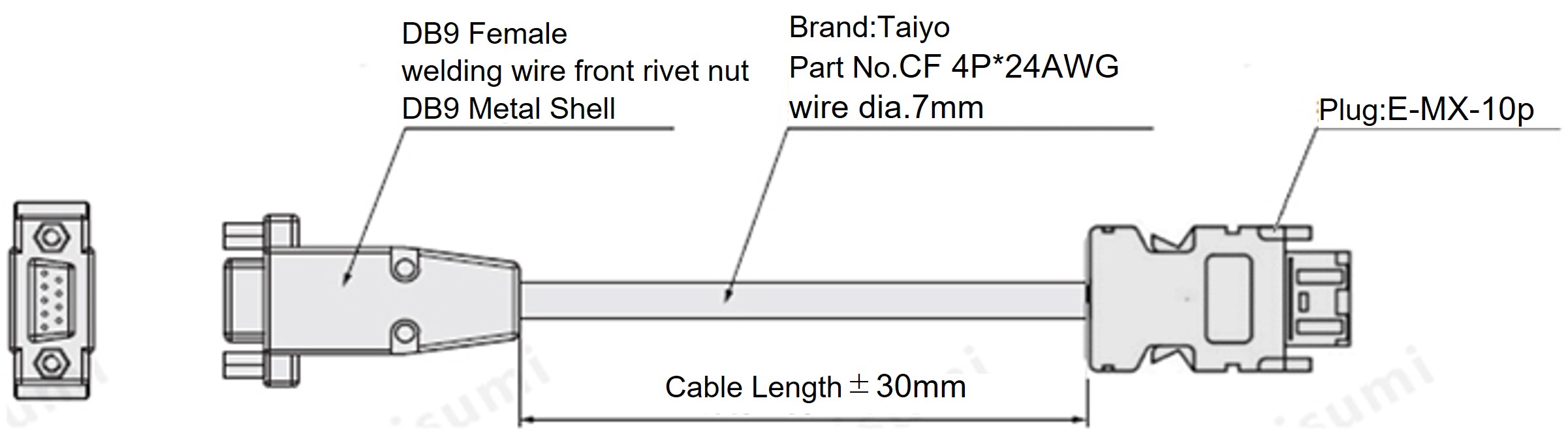

<Encoder extension cable for MISUMI Drivers>
Applicable Driver：MA/ME





Actuator Side Servotronix Driver Side
FunctionPin FuntionPin
A+4线A+3
A-8线A-4
B+3线B+5
B-7线B-6
Z+2线Z+7
Z-6线Z-8
5V5线5V1
GND9线GND2
ShieldedShelll线ShieldedShell


<Encoder extension cable for Servotronix Drivers>
Applicable Driver：DE


Actuator Side Servotronix Driver Side
FunctionPin FuntionPin
A+4线A+1
A-8线A-14
B+3线B+2
B-7线B-15
Z+2线Z+3
Z-6线Z-16
5V5线5V13
GND9线GND24
ShieldedShelll线ShieldedShell

<Encoder extension cable for Panasonic Drivers>
Applicable Driver：PA/PE


Actuator Side Panasonic Driver Side
FunctionPin FunctionPin
A+4线A+5
A-8线A-6
B+3线B+7
B-7线B-8
Z+2线Z+9
Z-6线Z-10
5V5线5V1
GND9线GND2
Shieldedshell线Shieldedshell
Cable bending radius: wire diameter x 10

■ Motor Parameters
CategoryUnitValue
Continuous ThrustN52
Peak ThrustN208
Motor Constant@TmaxN/(W1/2)23.4
Maximum Rated Power LossW42.5
Rated CurrentA2.5
Peak CurrentA10
Torque ConstantN/A20.8
Back EMF(Electromotive force)Vpeak/(m/s)17.1
Interphase Impedance　@25°ohms4
Interphase InductancemH10
Electrical Time Constantms0.9
Maximum VoltageVDC460
Maximum Winding Temperature℃120
Coil Weightkg1.3
Electrical Cycle Lengthmm20

■ Attached Sensor


Output ResponseWire ColorOutput Response
Output 1BlackDark  On( Light blocked)
Output 2WhiteLight ON ( Light received)

Precautions
■  Operating Environment
Linear Motor Actuators and Drivers may cause malfunctions when used in harsh environments, so please use them in the following places.。
1) Indoor, ambient temperature is within the range of 0~40℃, ambient humidity is 10~80%RH with no freezing or no condensation.
2) A place free of corrosive gases and flammable gases.
3) A place where conductive powder such as iron powder, dust, oil mist, cutting fluid, moisture, salt and organic solvents are not scattered.
4) A place without direct sunlight or radiant heat.
5) A place where strong electric fields and strong magnetic fields will not be generated.
6) A place where the main body will not be subject to vibration and impact.
7) A place with an altitude below 1000m.
8) A place convenient for inspection and cleaning.

■  Safety Precautions
This product is mostly heavy. When transporting, please transport by two or more people or use tools according to the weight of the unit.
Otherwise, injuries or product damage may occur.
1) Please do not drop or knock this product.
2) Please do not disassemble the product without authorization, otherwise accuracy may deteriorate due to the intrusion of foreign objects. In addition, the driver may be charged and an electric shock may occur.
3) The stator is a powerful magnet. Do not bring magnetic objects (especially metals) close to the magnet, otherwise your fingers may be caught between the magnet and the metal sheet due to the attraction of the magnet and be injured.
4) Persons using pacemakers must never approach the magnet.
5) Please do not touch any moving parts while the power is on. In addition, do not approach the main body while the actuator is in operation or ready to operate.

■  Other notes
1) Payload of Linear Motor Actuators varies depending on the installation direction (horizontal or wall), as well as speed and acceleration/deceleration.
2) This product must not be used in vertical or sloped directions. Please ensure that the flatness of the installation base is within the range of ±0.01mm/300mm, otherwise it will affect the use.
3) Grease has been injected into the guide rail before this product leaves the factory.However, please inject new grease every 3 months after receiving the goods or every 500km of travel distance, otherwise it will affect the product life.
4) This product comes standard with a magnetic encoder. Please be sure to keep away from magnetic objects (screwdrivers, etc.), otherwise it will affect use.
5) This product does not guarantee the noise value during operation.
6) When using the driver, be sure to read the driver manufacturer's instruction manual first to avoid damage caused by misoperation.
7) Since the mechanical part of this product is a machined product, there will be knife marks and color differences in the appearance.
It is normal for the product to have a few scratches or color changes as long as it does not affect the use and main functions.
8) Because products are constantly being improved, the appearance and specifications of non-critical parts (provided that they do not affect use) may change without prior notice.

Related Prodcuts
Economy Sereis Cable Carrier
Flap Open-Close
(Separators available)		Economy Sereis Cable Carriers
Low Particle Generation, Low Noise, Inner Height 30mm
(Separators available)		Economy Sereis Cable Carriers
Slit Type
相关产品01相关产品02相关产品03


Part Number

CAD Data download and 3D preview are not available because the part number has not yet been determined.

  • *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
  • Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
Loading...

CAD Download

30
45
60
  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. Next >>
Part Number
E-RAM8-S-60-DE30-C1
E-RAM8-S-60-DE30-C3
E-RAM8-S-60-DE30-C5
E-RAM8-S-60-DE30-N
E-RAM8-S-60-EA45-C1
E-RAM8-S-60-EA45-C3
E-RAM8-S-60-EA45-C5
E-RAM8-S-60-EA45-N
E-RAM8-S-60-EE45-C1
E-RAM8-S-60-EE45-C3
E-RAM8-S-60-EE45-C5
E-RAM8-S-60-EE45-N
E-RAM8-S-60-MA30-C1
E-RAM8-S-60-MA30-C3
E-RAM8-S-60-MA30-C5
E-RAM8-S-60-MA30-N
E-RAM8-S-60-ME30-C1
E-RAM8-S-60-ME30-C3
E-RAM8-S-60-ME30-C5
E-RAM8-S-60-ME30-N
E-RAM8-S-60-N-N
E-RAM8-S-60-PA25-C1
E-RAM8-S-60-PA25-C3
E-RAM8-S-60-PA25-C5
E-RAM8-S-60-PA25-N
E-RAM8-S-60-PE25-C1
E-RAM8-S-60-PE25-C3
E-RAM8-S-60-PE25-C5
E-RAM8-S-60-PE25-N
E-RAM8-S-1020-DE30-C1
E-RAM8-S-1020-DE30-C3
E-RAM8-S-1020-DE30-C5
E-RAM8-S-1020-DE30-N
E-RAM8-S-1020-EA45-C1
E-RAM8-S-1020-EA45-C3
E-RAM8-S-1020-EA45-C5
E-RAM8-S-1020-EA45-N
E-RAM8-S-1020-EE45-C1
E-RAM8-S-1020-EE45-C3
E-RAM8-S-1020-EE45-C5
E-RAM8-S-1020-EE45-N
E-RAM8-S-1020-MA30-C1
E-RAM8-S-1020-MA30-C3
E-RAM8-S-1020-MA30-C5
E-RAM8-S-1020-MA30-N
E-RAM8-S-1020-ME30-C1
E-RAM8-S-1020-ME30-C3
E-RAM8-S-1020-ME30-C5
E-RAM8-S-1020-ME30-N
E-RAM8-S-1020-N-N
E-RAM8-S-1020-PA25-C1
E-RAM8-S-1020-PA25-C3
E-RAM8-S-1020-PA25-C5
E-RAM8-S-1020-PA25-N
E-RAM8-S-1020-PE25-C1
E-RAM8-S-1020-PE25-C3
E-RAM8-S-1020-PE25-C5
E-RAM8-S-1020-PE25-N
E-RAM8-S-1080-DE30-C1
E-RAM8-S-1080-DE30-C3
Part NumberStandard Unit PriceMinimum order quantityVolume DiscountDays to ShipRoHSStroke Y
(mm) 		Driver Extension Cable Length Number of Drivers
(pcs) 		Number of Extension Cables
(pcs) 		Continuous Rated thrust
(N) 		Max Thrust
(N) 		Rated speed
(m/s) 		Maximum acceleration
(G)

15,939,544 IDR

1 Piece(s)Available 19 Day(s) -60Servotronix Universal Model-EtherCAT1mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)522081.51.5

16,405,395 IDR

1 Piece(s)Available 19 Day(s) -60Servotronix Universal Model-EtherCAT3mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)522081.51.5

16,871,244 IDR

1 Piece(s)Available 19 Day(s) -60Servotronix Universal Model-EtherCAT5mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)522081.51.5

15,706,644 IDR

1 Piece(s)Available 19 Day(s) -60Servotronix Universal Model-EtherCATSelf provided by customerStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)None522081.51.5

10,204,639 IDR

1 Piece(s)Available 19 Day(s) -60Servotronix Basic Model-Pulse1mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)522081.51.5

10,670,442 IDR

1 Piece(s)Available 19 Day(s) -60Servotronix Basic Model-Pulse3mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)522081.51.5

11,136,287 IDR

1 Piece(s)Available 19 Day(s) -60Servotronix Basic Model-Pulse5mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)522081.51.5

9,971,689 IDR

1 Piece(s)Available 19 Day(s) -60Servotronix Basic Model-PulseSelf provided by customerStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)None522081.51.5

10,358,432 IDR

1 Piece(s)Available 19 Day(s) -60Servotronix Basic Model-EtherCAT1mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)522081.51.5

10,824,283 IDR

1 Piece(s)Available 19 Day(s) -60Servotronix Basic Model-EtherCAT3mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)522081.51.5

11,290,084 IDR

1 Piece(s)Available 19 Day(s) -60Servotronix Basic Model-EtherCAT5mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)522081.51.5

10,125,533 IDR

1 Piece(s)Available 19 Day(s) -60Servotronix Basic Model-EtherCATSelf provided by customerStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)None522081.51.5

8,163,712 IDR

1 Piece(s)Available 19 Day(s) 1060MISUMI Driver-Pulse1mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)----

8,536,354 IDR

1 Piece(s)Available 19 Day(s) 1060MISUMI Driver-Pulse3mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)----

8,909,030 IDR

1 Piece(s)Available 19 Day(s) 1060MISUMI Driver-Pulse5mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)----

7,977,352 IDR

1 Piece(s)Available 19 Day(s) 1060MISUMI Driver-PulseSelf provided by customerStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)None----

8,286,746 IDR

1 Piece(s)Available 19 Day(s) 1060MISUMI Driver-EtherCAT1mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)----

8,659,427 IDR

1 Piece(s)Available 19 Day(s) 1060MISUMI Driver-EtherCAT3mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)----

9,032,068 IDR

1 Piece(s)Available 19 Day(s) 1060MISUMI Driver-EtherCAT5mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)----

8,100,427 IDR

1 Piece(s)Available 19 Day(s) 1060MISUMI Driver-EtherCATSelf provided by customerStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)None----

6,390,141 IDR

1 Piece(s)Available 19 Day(s) -60Self provided by customerSelf provided by customerNoneNone522081.51.5

12,454,633 IDR

1 Piece(s)Available 19 Day(s) -60Pansonic-Pulse1mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)522081.51.5

12,920,483 IDR

1 Piece(s)Available 19 Day(s) -60Pansonic-Pulse3mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)522081.51.5

13,386,334 IDR

1 Piece(s)Available 19 Day(s) -60Pansonic-Pulse5mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)522081.51.5

12,221,732 IDR

1 Piece(s)Available 19 Day(s) -60Pansonic-PulseSelf provided by customerStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)None522081.51.5

13,135,804 IDR

1 Piece(s)Available 19 Day(s) -60Pansonic-EtherCAT1mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)522081.51.5

13,601,653 IDR

1 Piece(s)Available 19 Day(s) -60Pansonic-EtherCAT3mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)522081.51.5

14,067,456 IDR

1 Piece(s)Available 19 Day(s) -60Pansonic-EtherCAT5mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)522081.51.5

12,902,904 IDR

1 Piece(s)Available 19 Day(s) -60Pansonic-EtherCATSelf provided by customerStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)None522081.51.5

21,664,358 IDR

1 Piece(s)Available 19 Day(s) -1020Servotronix Universal Model-EtherCAT1mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)522081.51.5

22,130,160 IDR

1 Piece(s)Available 19 Day(s) -1020Servotronix Universal Model-EtherCAT3mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)522081.51.5

22,596,009 IDR

1 Piece(s)Available 19 Day(s) -1020Servotronix Universal Model-EtherCAT5mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)522081.51.5

21,431,458 IDR

1 Piece(s)Available 19 Day(s) -1020Servotronix Universal Model-EtherCATSelf provided by customerStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)None522081.51.5

15,929,404 IDR

1 Piece(s)Available 19 Day(s) -1020Servotronix Basic Model-Pulse1mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)522081.51.5

16,395,255 IDR

1 Piece(s)Available 19 Day(s) -1020Servotronix Basic Model-Pulse3mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)522081.51.5

16,861,052 IDR

1 Piece(s)Available 19 Day(s) -1020Servotronix Basic Model-Pulse5mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)522081.51.5

15,696,503 IDR

1 Piece(s)Available 19 Day(s) -1020Servotronix Basic Model-PulseSelf provided by customerStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)None522081.51.5

16,083,197 IDR

1 Piece(s)Available 19 Day(s) -1020Servotronix Basic Model-EtherCAT1mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)522081.51.5

16,549,048 IDR

1 Piece(s)Available 19 Day(s) -1020Servotronix Basic Model-EtherCAT3mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)522081.51.5

17,014,845 IDR

1 Piece(s)Available 19 Day(s) -1020Servotronix Basic Model-EtherCAT5mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)522081.51.5

15,850,298 IDR

1 Piece(s)Available 19 Day(s) -1020Servotronix Basic Model-EtherCATSelf provided by customerStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)None522081.51.5

12,743,524 IDR

1 Piece(s)Available 19 Day(s) 101020MISUMI Driver-Pulse1mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)----

13,116,204 IDR

1 Piece(s)Available 19 Day(s) 101020MISUMI Driver-Pulse3mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)----

13,488,842 IDR

1 Piece(s)Available 19 Day(s) 101020MISUMI Driver-Pulse5mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)----

12,557,203 IDR

1 Piece(s)Available 19 Day(s) 101020MISUMI Driver-PulseSelf provided by customerStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)None----

12,866,558 IDR

1 Piece(s)Available 19 Day(s) 101020MISUMI Driver-EtherCAT1mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)----

13,239,239 IDR

1 Piece(s)Available 19 Day(s) 101020MISUMI Driver-EtherCAT3mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)----

13,611,876 IDR

1 Piece(s)Available 19 Day(s) 101020MISUMI Driver-EtherCAT5mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)----

12,680,239 IDR

1 Piece(s)Available 19 Day(s) 101020MISUMI Driver-EtherCATSelf provided by customerStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)None----

12,114,904 IDR

1 Piece(s)Available 19 Day(s) -1020Self provided by customerSelf provided by customerNoneNone522081.51.5

18,179,447 IDR

1 Piece(s)Available 19 Day(s) -1020Pansonic-Pulse1mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)522081.51.5

18,645,248 IDR

1 Piece(s)Available 19 Day(s) -1020Pansonic-Pulse3mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)522081.51.5

19,111,099 IDR

1 Piece(s)Available 19 Day(s) -1020Pansonic-Pulse5mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)522081.51.5

17,946,546 IDR

1 Piece(s)Available 19 Day(s) -1020Pansonic-PulseSelf provided by customerStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)None522081.51.5

18,860,618 IDR

1 Piece(s)Available 19 Day(s) -1020Pansonic-EtherCAT1mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)522081.51.5

19,326,418 IDR

1 Piece(s)Available 19 Day(s) -1020Pansonic-EtherCAT3mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)522081.51.5

19,792,269 IDR

1 Piece(s)Available 19 Day(s) -1020Pansonic-EtherCAT5mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)522081.51.5

18,627,669 IDR

1 Piece(s)Available 19 Day(s) -1020Pansonic-EtherCATSelf provided by customerStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)None522081.51.5

21,980,619 IDR

1 Piece(s)Available 19 Day(s) -1080Servotronix Universal Model-EtherCAT1mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)522081.51.5

22,446,470 IDR

1 Piece(s)Available 19 Day(s) -1080Servotronix Universal Model-EtherCAT3mStandard 1 Set(2 pcs for 2B; 3 pcs for 3B; 4 pcs for 4B)Standard 1 Set(2 Set for 2B; 3 Set for 3B; 4 Set for 4B)522081.51.5

Loading...

  1. 1
  2. 2
  3. 3
  4. 4
  5. 5
  6. Next >>

Basic Information

Base Width(mm) 82 Type Standard Encorder Incremental Magnetic Encoder
Number of Sliders(pcs) 1 Photo Micro Sensor Output Mode NPN Photo Micro Sensor Cable Length(m) 2
Compliance RoHS10/CE

Configure

Clear All

874 Part Numbers

View Part Numbers

Configure Remaining Specifications
Completed
loading

Specification/Dimensions

  • Stroke Y(mm)

    • 60
    • 120
    • 180
    • 240
    • 300
    • 360
    • 420
    • 480
    • 540
    • 600
    • 660
    • 720
    • 780
    • 840
    • 900
    • 960
    • 1020
    • 1080
    • 1140
    • 1200
    • 1260
    • 1320
    • 1380
    • 1440
    • 1500
    • 1560
    • 1620
    • 1680
    • 1740
    • 1800

    Clear

  • Driver

    • MISUMI Driver-EtherCAT
    • MISUMI Driver-Pulse
    • Pansonic-EtherCAT
    • Pansonic-Pulse
    • Self provided by customer
    • Servotronix Basic Model-EtherCAT
    • Servotronix Basic Model-Pulse
    • Servotronix Universal Model-EtherCAT
    • Servotronix Universal Model-Pulse

    Clear

  • Extension Cable Length

    • 1m
    • 3m
    • 5m
    • Self provided by customer

    Clear

  • type

    • E-RAM8-S

    Clear

  • CAD

    • 2D
    • 3D

    Clear

Days to Ship

    • All
    • 19 Day(s) or Less

    Clear

Specify Alterations

Tech Support

Technical Inquiry

Payment MethodMetode Pembayaran more Pelajari lebih lanjut

  • Bank TransferTransfer Bank
    • QRIS

About MISUMITentang MISUMI

About this WebsiteTentang Website ini

Useful ToolsAlat Serbaguna

Customer ServiceLayanan Pelanggan

MISUMI Contact Monday to Friday (8:30am to 5:30pm) , Saturday (8:30am to 3:00pm) *Order cut off time Monday to Friday: 4:30pm , Saturday : 2:00pm MISUMI Kontak Senin - Jumat (8:30 WIB - 17:30 WIB) , Sabtu (8:30WIB - 15:00 WIB) *Batas Waktu Pemesanan Senin - Jumat : 16:30 WIB , Sabtu : 14:00 WIB

  • Tel:021-8984-0008
  • Fax:021-8984-0007
Inquiry Permintaan
Mobile View Tampilan Mobile

Copyright © MISUMI Corporation All Rights Reserved.
