Open Timing Belt STD S3M/S5M/S8M

Open Timing Belt STD S3M/S5M/S8M
Check FAQ of this product (4 items)

MISUMI

MiSUMi Economy

MISUMI

Part Number

Configured Part Number is shown.


Product Overview
Open belts are components that transmit the rotational power generated by the motor.
They achieve transmission and delivery through the engagement between the timing pulley and the timing belt teeth.
Open belts are suitable for reciprocating motion and are equipped with a variety of connecting metal parts.

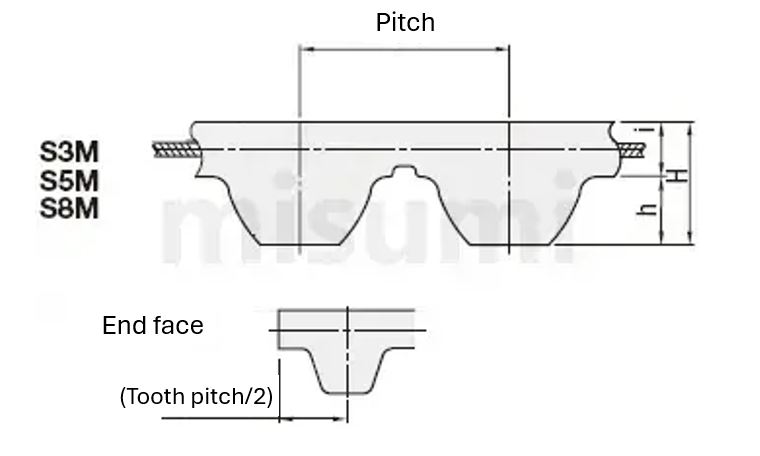

Dimensional Drawing
Opening belt size specification
Specification Overview
■Material table
Material
①Main Body②Core wire
Polyurethane (white)Steel wire

Belt TypePitchHhiUnit weight
g/m(Width 10mm)
S3M32.21.131.0725
S5M53.41.911.4939
S8M85.23.052.1551
Polyurethane belts may change color over time, but the strength and other factors will not be affected.
Operating temperature -20℃～60℃.
Total length (number of teeth x pitch).
This product is not suitable for gapless timing pulleys.
The weight is a theoretical value and may differ from the actual weight
Specification Table
■Specifications
TypeBelt typeNominal belt widthNumber of teeth
Upper limit~lower limit		Belt width (mm)Allowable tension (N)
E-LHTBO
(Standard type)

E-LTBOHA
(Tooth-Side Fabric Coated Type)

E-LTBONA
(Back-Side Fabric Coated Type)

E-LTBORA
(Double-Sided Fabric Coated Type)		S3M060100～100006136
10010226
15015309
S5M10060～1000010750
150151175
250252100
S8M15040～10000151986
250253250
300304000
400405275
The total length is (number of teeth × tooth pitch).
kgf＝N×0.101972
Product Features
Feature 1: The product has embedded steel wire core wire, which is more cost-effective and has a wider range of applications.
Feature 2: There is no exposed steel wire core wire on the side of the opening to avoid scratching the opponent or injuring the operator.
Feature 3: It can be used with toothed plates for timing toothed belt connection, linear guides, single-axis drives and other products, and is suitable for equipment with a high degree of automation.
Feature 4: STD tooth transmission has high precision and is suitable for high torque transmission. You can also choose S3M type, which is suitable for small precision equipment.
Feature 5: Compared with chain drive, the free-end timing toothed belt is lighter, produces less noise, and does not require lubricants, making it cleaner.
Precautions
■Storage Precautions
①Avoid sunlight.
②Do not use in an environment with direct contact with water, solvents, oil, acid, alkali, ultraviolet rays, ozone, etc.
 Especially do not allow oil to adhere to the belt, otherwise it will cause the belt to swell and significantly shorten the service life of the belt.
③Using temperature -20℃～60℃.
④Do not pile up in large quantities or bend forcibly.
⑤Do not place directly on the ground.
⑥Do not allow the belt to come into contact with chemicals.
Example of Use
Extended free-end belt in reciprocating mechanism
Equipment Name:
Belt-driven lateral transport device

Functional Description:
Application of open belt in reciprocating mechanism.

For more information, click  here.
Application industry
Food Semiconductor Smartphone
Widely used in food transportation and delivery Industry Use Industry Semiconductor Smartphone 3C IPHONE Huawei
Medical Electronic appliances Lithium batteries
Widely used in medical instruments, blood machines and other related equipment in the biomedical industry Usage in the electronic and electrical appliance industry Application industry lithium battery
Related products
Economy series open belt trapezoidal tooth XL/L/H Economy series timing pulley S3M Economy series timing pulley S5M
Economy series timing pulley H3M Economy series timing pulley H3M Economic Idler H3M

Part Number

CAD Data download and 3D preview are not available because the part number has not yet been determined.

  • *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
  • Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
Loading...

CAD Download

30
45
60
  1. 1
Part Number
E-LHTBO-S3M060
E-LHTBO-S5M250
E-LTBOHA-S3M060
E-LTBONA-S8M400
E-LTBORA-S8M400
Part NumberStandard Unit PriceMinimum order quantityVolume DiscountDays to ShipRoHSBelt Type Belt Width (mm)
(mm) 		Type

-

1 Piece(s) 10 Day(s) 10S3M6Standard Type

-

1 Piece(s) 10 Day(s) 10S5M25Standard Type

-

1 Piece(s) 10 Day(s) 10S3M6Tooth Surface Patch Type

-

1 Piece(s) 10 Day(s) 10S8M40Back Patch Type

-

1 Piece(s) 10 Day(s) 10S8M40Double-Sided Patch Type

Loading...

  1. 1

Basic Information

Belt Shape Open End Belt Material Polyurethane Belt Belt Tooth Surface Standard (Single Sided)
Core Wire Material Steel Cord Belt Shape Type Round Tooth Profile Super Torque Transmission Torque High Torque Transmission

Configure

Clear All

5 Part Numbers

View Part Numbers

Configure Remaining Specifications
Completed
loading

Specification/Dimensions

  • Belt Type

    • S3M
    • S5M
    • S8M

    Clear

  • Belt Width (mm)(mm)

    • 6
    • 25
    • 40

    Clear

  • Type

    • Back Patch Type
    • Double-Sided Patch Type
    • Standard Type
    • Tooth Surface Patch Type

    Clear

  • type

    • E-LHTBO
    • E-LTBOHA
    • E-LTBONA
    • E-LTBORA

    Clear

  • CAD

    • 2D
    • 3D

    Clear

Days to Ship

    • All
    • 10 Day(s) or Less

    Clear

Specify Alterations

Frequently asked question (FAQ)

Question: After using the polyurethane timing belt for a period of time, it changes color. Will it affect its use?
Answer: No, polyurethane belts may change color over time, but the strength will not be affected.
Question: What kind of belt material is better for working conditions with high cleanliness requirements?
Answer: It can be used for transmission and can only be used for linear reciprocating motion.
Question: Can the open belt be used for transmission after matching with the connecting tooth plate?
Answer: It can be used for transmission and can only be used for linear reciprocating motion.
Question: What are the two main types of polyurethane timing belts according to the interface form?
Answer: Open type, the length of the open belt can be freely specified.
Closed type, the length of the connecting belt is processed with joints at both ends, and this type of connecting belt is only suitable for transmission function.

Check other FAQ (1 items) Hide
