Post-Assembly Leaf Spring Nuts For Aluminum Frames【1-100 Pieces Per Package】

Post-Assembly Leaf Spring Nuts For Aluminum Frames

Click this image to zoom it.

Move the mouse over the image to zoom

Check FAQ of this product (2 items)

MISUMI

MiSUMi Economy

MISUMI

Insertion Nuts With Leaf Spring For Aluminum Frames
It is a square nut, which has a leaf spring for preventing the nut slipping off when inserted into the vertical direction
[Features]
• Post-Assembly: Mountable from slots after assembly
• Suitable for use with aluminum Frames 2020 series (slot width 6 mm.)
• Can support bolt size M4, M5 and M6
• Size (Width x Length x Depth): 8.2 x 13 x 5 mm.
• Material :
T-nut: Steel
Leaf Spring: SUS304
[Applications]
Suitable for use with bolt and aluminum Frames 2020 series (slot width 6 mm.)., for assembling machine components

(i)Caution

  • MISUMI Economy series new products, with different sizes, can only be used in combination with MISUMI Economy series frames starting with L.

Part Number

Configured Part Number is shown.



Product Overview of Nuts

The post-mounted shrapnel Nuts for assembly of aluminum frames. The shrapnels are welded on the surface, with high strength and fall-off prevention; the shrapnels are adjusted and positioned firmly, suitable for vertical installation,light-weight frames in the center, and so on. The surface is nickel-plated, anti-rust and exquisite, and can be used with aluminum franes with slot width of 6mm. Sales of 100 pcs/pack, cost-effective choice.

Dimensional Drawing of Nuts

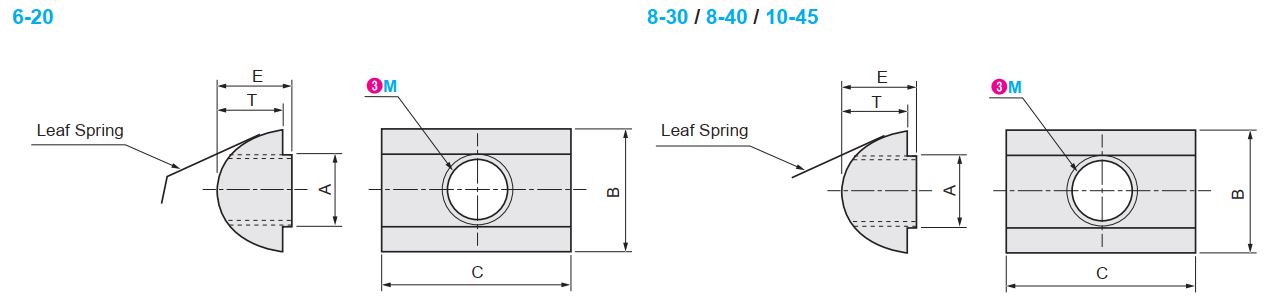

Shrapnel Nuts dimensional drawing

■Specification Table
Part NumberSlot width seriesMPacked salesABCET
LNTRNM6-204100P
(100 pcs/pack)		5.88.21354.4
5
6

Specifications Overview of Nuts

Nuts Suitable for vertical installation of aluminum frames, stable quality, easy installation.
The shrapnel is in a welded state and can be fixed even if it is inserted into a vertical profile.

Product Feature of Nuts

1. Mainly adopt surface welding, with high strength of shrapnel, not easy to fall off, and convenient assembly;
2. Fully automatic equipment to process threads, ensuring accuracy and stable quality;
3. Define safe tightening torque to make assembly more convenient.

Example Use of Nuts

■Profiles assembling example
Example of using shrapnel Nuts

Related Products of Nuts

Recommended product 1Recommended product 2Recommended product 3
20 series 2020 aluminum frames slot width 6mmFlat head bolt for aluminum frames (50 pcs included)Light load die-cast bracket for aluminum frames with slot width of 6mm
European standard profile product drawingsEuropean standard T-bolt product drawingsEuropean standard die-cast bracket product drawings


Specification Table of Nuts

■Specification Table
Part NumberSlot width seriesMPacked salesABCET
LNTRNM6-204100P
(100 pcs/pack)		5.88.21354.4
5
6

Specification Table
■Specification Table
Part NumberSlot width seriesMPacked salesABCET
LNTRNM6-204100P
(100 pcs/pack)		5.88.21354.4
5
6

Part Number

CAD Data download and 3D preview are not available because the part number has not yet been determined.

  • *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
  • Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
Loading...

CAD Download

30
45
60
  1. 1
Part Number
LNTRNM6-20-4
LNTRNM6-20-4-100P
LNTRNM6-20-5
LNTRNM6-20-5-100P
LNTRNM6-20-6
LNTRNM6-20-6-100P
Part NumberStandard Unit PriceNumber of pc(s). included in pkg.Minimum order quantityVolume DiscountDays to ShipNominal of Thread M
(mm) 		Sale Type Aluminum Frame Profile

3,000 IDR

1 Piece(s) Same day M4--

285,000 IDR

100 Pieces Per Package

1 Pack(s) Same day M4Bag Sales2020

3,000 IDR

1 Piece(s) Same day M5Bulk Sales-

285,000 IDR

100 Pieces Per Package

1 Pack(s) Same day M5Bag Sales2020

3,000 IDR

1 Piece(s) Same day M6--

285,000 IDR

100 Pieces Per Package

1 Pack(s) Same day M6Bag Sales2020

Loading...

  1. 1

Basic Information

Nut Type Post-Assembly Insertion Nuts Series MISUMI European Standard Groove Width 6 mm for Aluminum Only Function Economy
Material Steel Lock Not Provided Surface Treatment Nickel Plating
Type Shrapnel Nut

Configure

Clear All

6 Part Numbers

View Part Numbers

Configure Remaining Specifications
Completed
loading

Specification/Dimensions

  • Nominal of Thread M(mm)

    • M4
    • M5
    • M6

    Clear

  • Sale Type

    • Bag Sales
    • Bulk Sales

    Clear

  • Aluminum Frame Profile

    • 2020

    Clear

  • type

    • LNTRNM6-20

    Clear

  • CAD

    • 2D
    • 3D

    Clear

Days to Ship

Specify Alterations

Frequently asked question (FAQ)

Question: What do the numbers after the model mean?
Answer: The numbers are consistent with the series of aluminum alloy profiles, and most of them can be used as long as they correspond.
Example: LNTRNM6-20-5-100P corresponding to the applicable profile specifications: LCF6-2020-100
Question: What does 100P after the model stand for?
Answer: 100P after the model means 100PCS, that is sales of 100 pcs/pack.
Example: LNTRNM6-20-5-100P means actual shipment is in 100 pcs/pack.
