Ball Bearings Rubber Sealed

Ball Bearings Rubber Sealed

Click this image to zoom it.

Move the mouse over the image to zoom

  • Volume Discount
Check FAQ of this product (8 items)

MISUMI

MiSUMi Economy 60

MISUMI

Ball Bearings Rubber Sealed
Ball bearings with rubber seals are commonly used in applications where there is a need to protect the bearings from dirt, dust, and water resistant. These bearings are available in various sizes to choose from.
[Feature]
● Bearing Size Standards: Metric System
● Inner Diameter Minimum / Maximum (mm.) : 10 and 50
● Outer Diameter Minimum / Maximum (mm.) : 19 and 110
● Width Minimum / Maximum (mm.) : 5 and 27
● Precision (JIS) : Class 0
● Bearing Type : Closed (Rubber Sealed (DDU))
● Load Direction : Radial / Thrust Load or Axial Load
[Application]
It is used to support and guide rotating machine's components, such as shafts, wheels, pulleys ,etc

PDF

Part Number

Configured Part Number is shown.



Economy Rubber Sealed Ball Bearing

Protective SealsHigh Surface HardnessWear Resistance

- Width Range: Bearings are available in various widths.

- Material: SUJ2 equivalent for inner/outer ring and rolling elements.

- Inner Diameter (d): Ranges within specified values.

- Bearing with various outer diameter options

- Available in various widths.

Economy Rubber Sealed Ball Bearing
MISUMI Economy Logo

MISUMI Standard
MISUMI Standard

Cheaper Price
Cheaper Price

Product Variety
Product Variety

3D CAD
3D CAD Support


Product Overview
・ Light load, medium · low speed, special for medium precision rotation, realizing ultra-low price.
・ It is made of industry standard Ball Bearings steel with high surface hardness and wear resistance.
・ The vibration class of the product Ball Bearings is above Z1
Dimensional Drawing
Product Dimensional Drawing
(Economic) Small diameter ball bearing Contact rubber seal packing type
Specification Table

Ball Bearings Key points of Ball Bearings economy series parts confirmation ①
Inner Diameter d (mm)Clearance of MISUMI quality products (μm)Clearance of Economy series products (μm)
or Moreor LessMinMaxMinMax
Only 10213418
1018318623
1824520825
2430520825
3040620925
4050623928

Part NumberInner Diameter
d		Outer Diameter
D		Width
B		r
(min.)		Key points of economy series products confirmation
Basic Rated Load		Allowable Rotational Speed
rpm
(Reference)		Mounting DimensionsWeight
(g)
(Reference)
TypeNo.Cr(Dynamic)NCor(Static)NDsdh
(max.)		R
(max.)
(min.)(max.)
C－E6800DDU101950.31716840170001212170.36
6900DDU226269512731500012.52010
6000DDU268455019702418
6200DDU3090.651002390130001416260.632
6300DDU3511810034501200016.53152
6801DDU122150.3191510411400014190.37
6901DDU2462886146614.52210
6001DDU288510023701300015.52622
6201DDU32100.668003050120001617280.637
6301DDU371219700420011000171832160
6802DDU152450.3207312531200017220.39
6902DDU287432122592615
6002DDU3295600283011000193031
6202DDU35110.676503750100001920.5310.645
6302DDU4213111400545090002022.537183
6803DDU172650.322331456110001919240.39
6903DDU3074588256519.52810
6003DDU351060003250900021.53341
6203DDU40120.69550480080002123.5360.667
6303DDU471411360066502225.5421113
6804DDU203270.340152462900022300.318
6904DDU379638136828000243540
6004DDU42120.6940050002425.5380.668
6204DDU471411280066002526.5421107
6304DDU2052151.1159007900700026.52845.51145
6805DDU253770.3430329322727350.324
6905DDU4297001454028.54047
6005DDU47120.61010058502930430.679
6205DDU5215114000785060003032471129
6305DDU62171.1206001120031.53655.5235
6806DDU304270.3453834023232400.327
6906DDU47972425003344553
6006DDU551311320083003536.5501116
6206DDU62161950011300500038.557199
6306DDU72191.12670015000374065345
6807DDU354770.34729382138450.332
6907DDU55100.61090078183939510.688
6007DDU6214116000103004041.5571151
6207DDU72171.12570015300400041.544.565.5284
6307DDU80211.533500192004347721.5464
6808DDU405270.34923417850004243500.335
6908DDU62120.613678996840004446580.6132
6008DDU6815116800115004547.5631190
6208DDU80181.1291001790046.550.573.5366
6308DDU90231.540500240004953811.5636
6809DDU455870.3618753814747.5560.342
6909DDU68120.614100108304950640.6148
6009DDU7516120900152005053.5701241
6209DDU85191.1315002040051.555.578.5420
6309DDU100251.5530003200030005458911.5829
6810DDU506570.36610609040005252.5630.365
6910DDU72120.614540117105455680.6145
6010DDU80161218001660030005558.5751261
6210DDU9020350002320056.56083.5459
6310DDU110272620003850061649921060
Ball Bearingskgf＝N×0.101972
Product Features
・The grooves on the inner and outer rings are slightly larger than the ball radius and help handle radial loads.
・There are open-type bearings, as well as ones with steel dust covers, rubber seals (contact and non-contact), or retaining rings.
・Sealed or covered ball bearings come pre-lubricated. Deep groove ball bearings use stamped steel cages, have low friction, and are precision grade 0.
■Features of MISUMI Economy series Bearings

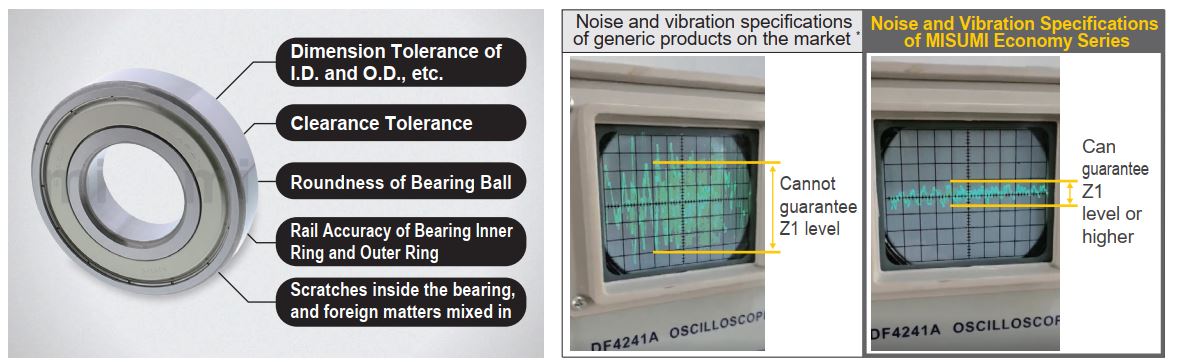

①Why are all MISUMI Economy series bearings tested for noise and vibration? And why do we insist on achieving "Z1" level?
Through the test of bearing noise and vibration, we can find out whether the bearing is defective. Bearing vibration is divided into four levels: Z0, Z1, Z2, Z3 and Z4 (Higher level, Lower noise and vibration)

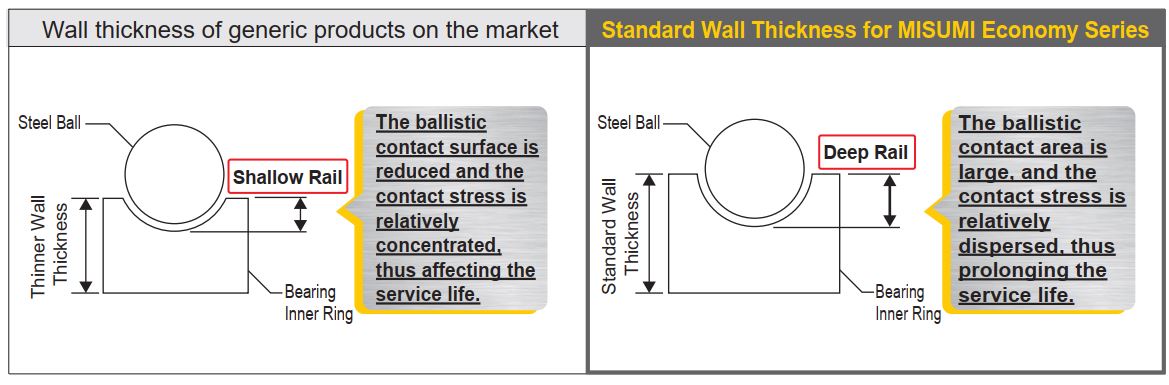

②Why do we insist on using "standard wall thickness" for MISUMI Economy series bearings?

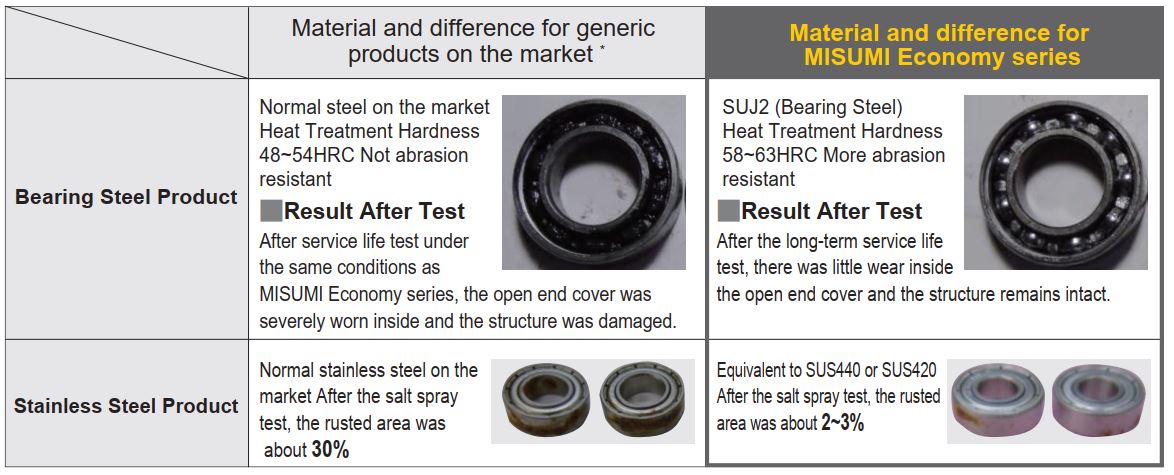

③Why do we insist on using "bearing steel" and "stainless steel" materials with excellent performance for MISUMI Economy series bearings?

※Generic products on the market are similar products randomly purchased by our company from online or offline markets.
※The test data are obtained through testing by our company, which are for reference only.
Precautions
When the precision of the shaft and Ball Bearings housing is poor, the bearing will be affected, and its due performance will not be exerted. For example, the poor precision of the mounting part with the bearing will cause relative inclination of the inner and outer rings. At this time, besides the bearing load, the edge load will be increased additionally, which will shorten the fatigue life of the bearing, and even more seriously, it will lead to damage such as cage breakage and sticking.

Please use the following special mounting tool for installation and removal
Ball Bearings heater
Bearing heater		Proper installation of the Ball Bearings heater can guarantee a long life of the bearing.
Rolling bearings are reliable mechanical components with long service life if they are installed and maintained correctly.
After the induction heater is used for heating, the bearing expands outward in the cylindrical direction, which can avoid the damage during installation. Induction heater is one of the most scientific heating methods, which does not need preheating, and can be heated to 110℃ in a few seconds or minutes depending on the weight of bearings, without damaging the prior lubrication
Ball Bearings puller
Bearing puller		When the installation state of the Ball Bearings is in the following situations, the special puller can be used for disassembly.
(a) Shaft shape: cylindrical shaft, Inner diameter shape of bearing inner ring: cylindrical hole.
(b) Shaft shape: cylindrical shaft, inner diameter shape of bearing inner ring with tight bushing: tapered hole.
(c) Shaft shape: tapered shaft, Inner diameter shape of bearing inner ring: tapered hole. In either state, the lock nut of the shaft (or the lock nut of the tight bushing) must be released during disassembly, and the lock nut must be placed in a loose state.

Example of Use
Ball Bearings Motor
1 Motor
Ball Bearings Gear unit
2 Gear unit
Ball Bearings Machine tool
3 Machine tool

Part Number

CAD Data download and 3D preview are not available because the part number has not yet been determined.

  • *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
  • Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
Loading...

CAD Download

30
45
60
  1. 1
Part Number
C-E6000DDU
C-E6001DDU
C-E6002DDU
C-E6003DDU
C-E6004DDU
C-E6005DDU
C-E6006DDU
C-E6007DDU
C-E6008DDU
C-E6009DDU
C-E6010DDU
C-E6200DDU
C-E6201DDU
C-E6202DDU
C-E6203DDU
C-E6204DDU
C-E6205DDU
C-E6206DDU
C-E6207DDU
C-E6208DDU
C-E6209DDU
C-E6210DDU
C-E6300DDU
C-E6301DDU
C-E6302DDU
C-E6303DDU
C-E6304DDU
C-E6305DDU
C-E6306DDU
C-E6307DDU
C-E6308DDU
C-E6309DDU
C-E6310DDU
C-E6800DDU
C-E6801DDU
C-E6802DDU
C-E6803DDU
C-E6804DDU
C-E6805DDU
C-E6806DDU
C-E6807DDU
C-E6808DDU
C-E6809DDU
C-E6810DDU
C-E6900DDU
C-E6901DDU
C-E6902DDU
C-E6903DDU
C-E6904DDU
C-E6905DDU
C-E6906DDU
C-E6907DDU
C-E6908DDU
C-E6909DDU
C-E6910DDU
Part NumberStandard Unit PriceMinimum order quantityVolume DiscountDays to ShipRoHSInner Dia. d
(Ø) 		Outer Dia. D
(Ø) 		Width B (or T)
(mm) 		Basic Load Rating Cr (Dynamic)
(N) 		Basic Load Rating Cor (Static)
(N) 		Weight
(g)

10,592 IDR

1 Piece(s)Available Same day 10102684550197018

10,592 IDR

1 Piece(s)Available Same day 10122885100237022

11,974 IDR

1 Piece(s)Available Same day -153295600283031

12,434 IDR

1 Piece(s)Available Same day 101735106000325041

13,355 IDR

1 Piece(s)Available Same day 102042129400500068

15,197 IDR

1 Piece(s)Available Same day -25471210100585079

18,421 IDR

1 Piece(s)Available Same day 10305513132008300116

22,566 IDR

1 Piece(s)Available Same day -3562141600010300151

29,474 IDR

1 Piece(s)Available 12 Day(s) -4068151680011500190

38,224 IDR

1 Piece(s)Available 12 Day(s) -4575162090015200241

44,671 IDR

1 Piece(s)Available 12 Day(s) -5080162180016600261

8,750 IDR

1 Piece(s)Available Same day -103095100239032

9,671 IDR

1 Piece(s)Available Same day -1232106800305037

10,592 IDR

1 Piece(s)Available Same day 101535117650375045

12,434 IDR

1 Piece(s)Available Same day 101740129550480067

22,523 IDR

1 Piece(s)Available Same day 10204714128006600107

25,901 IDR

1 Piece(s)Available Same day -255215140007850129

32,086 IDR

1 Piece(s)Available Same day -3062161950011300199

46,674 IDR

1 Piece(s)Available Same day -3572172570015300284

54,616 IDR

10 Piece(s)Available 23 Day(s) -4080182910017900366

125,835 IDR

1 Piece(s)Available 12 Day(s) -4585193150020400420

90,031 IDR

1 Piece(s)Available 12 Day(s) -5090203500023200459

31,081 IDR

1 Piece(s) 12 Day(s) 101035118100345052

12,434 IDR

1 Piece(s)Available Same day 101237129700420060

20,285 IDR

1 Piece(s)Available Same day -15421311400545083

25,331 IDR

1 Piece(s)Available Same day -174714136006650113

32,086 IDR

1 Piece(s)Available Same day -205215159007900145

34,324 IDR

1 Piece(s)Available 12 Day(s) -2562172060011200235

217,678 IDR

1 Piece(s)Available 12 Day(s) 103072192670015000345

60,713 IDR

1 Piece(s)Available Same day 103580213350019200464

108,973 IDR

1 Piece(s)Available 12 Day(s) -4090234050024000636

146,960 IDR

1 Piece(s)Available 12 Day(s) -45100255300032000829

191,233 IDR

1 Piece(s)Available 12 Day(s) -501102762000385001060

12,626 IDR

1 Piece(s)Available Same day -1019517168406

14,344 IDR

1 Piece(s)Available Same day -12215191510417

17,066 IDR

1 Piece(s)Available Same day -15245207312539

19,389 IDR

1 Piece(s)Available Same day -17265223314569

22,746 IDR

1 Piece(s)Available Same day -203274015246218

27,390 IDR

1 Piece(s)Available Same day -253774303293224

34,625 IDR

1 Piece(s)Available Same day -304274538340227

45,057 IDR

1 Piece(s)Available 12 Day(s) -354774729382132

57,420 IDR

1 Piece(s)Available 12 Day(s) -405274923417835

79,570 IDR

1 Piece(s)Available 12 Day(s) -455876187538142

89,333 IDR

1 Piece(s)Available 12 Day(s) -506576610609065

13,835 IDR

1 Piece(s)Available Same day -102262695127310

15,145 IDR

1 Piece(s)Available Same day -122462886146610

17,770 IDR

1 Piece(s)Available Same day -152874321225915

20,270 IDR

1 Piece(s)Available Same day -173074588256510

22,566 IDR

1 Piece(s)Available Same day -203796381368240

26,250 IDR

1 Piece(s)Available Same day -254297001454047

30,855 IDR

1 Piece(s)Available 13 Day(s) 10304797242500353

34,539 IDR

1 Piece(s)Available Same day -35551010900781888

38,684 IDR

1 Piece(s)Available 12 Day(s) -406212136789968132

48,355 IDR

1 Piece(s)Available 12 Day(s) -4568121410010830148

58,947 IDR

1 Piece(s)Available 12 Day(s) -5072121454011710145

Loading...

  1. 1

Basic Information

Raceway Ring Shape Ball Bearing Type Rubber Sealed Outer Ring Type Flat
Inner/Outer Ring Material SUJ2 Equiv. Specifications, Environment Standard / Water Resistance / Dust Resistant Precision (JIS) Class 0
Load Direction Radial Rolling Element Material SUJ2 Size Standards Metric System
Number of Raceway Ring Rows Single Row Allowable Rotational Speed(rpm) 8000

Configure

Clear All

55 Part Numbers

View Part Numbers

Configure Remaining Specifications
Completed
loading

Specification/Dimensions

  • Inner Dia. d(Ø)

    • 10
    • 12
    • 15
    • 17
    • 20
    • 25
    • 30
    • 35
    • 40
    • 45
    • 50

    Clear

  • Outer Dia. D(Ø)

    • 19
    • 21
    • 22
    • 24
    • 26
    • 28
    • 30
    • 32
    • 35
    • 37
    • 40
    • 42
    • 47
    • 52
    • 55
    • 58
    • 62
    • 65
    • 68
    • 72
    • 75
    • 80
    • 85
    • 90
    • 100
    • 110

    Clear

  • Width B (or T)(mm)

    • 5
    • 6
    • 7
    • 8
    • 9
    • 10
    • 11
    • 12
    • 13
    • 14
    • 15
    • 16
    • 17
    • 18
    • 19
    • 20
    • 21
    • 23
    • 25
    • 27

    Clear

  • Basic Load Rating Cr (Dynamic)(N)

    • 1716
    • 1915
    • 2073
    • 2233
    • 2695
    • 2886
    • 4015
    • 4303
    • 4321
    • 4538
    • 4550
    • 4588
    • 4729
    • 4923
    • 5100
    • 5600
    • 6000
    • 6187
    • 6381
    • 6610
    • 6800
    • 7001
    • 7242
    • 7650
    • 8100
    • 9400
    • 9550
    • 9700
    • 10100
    • 10900
    • 11400
    • 12800
    • 13200
    • 13600
    • 13678
    • 14000
    • 14100
    • 14540
    • 15900
    • 16000
    • 16800
    • 19500
    • 20600
    • 20900
    • 21800
    • 25700
    • 26700
    • 29100
    • 31500
    • 33500
    • 35000
    • 40500
    • 53000
    • 62000

    Clear

  • type

    • C-E6□□□DDU

    Clear

  • CAD

    • 2D
    • 3D

    Clear

Days to Ship

    • All
    • Same day
    • 12 Day(s) or Less
    • 13 Day(s) or Less
    • 23 Day(s) or Less

    Clear

Specify Alterations

Frequently asked question (FAQ)

Question: What is the difference between ball bearing and roller bearing?
Answer: The contact between ball bearing and raceway is point contact, and the contact surface is oval when stressed. Because of the point contact, resisting force value is small, and the ball bearing is suitable for the application conditions of low torque and high rotational speed. They also have the characteristics of low noise. Ball bearings have low loading capacity but can bear radial and axial loads. The contact between roller bearing and raceway is line contact, and the contact surface is square when stressed. Because of the line contact, the torque of roller bearing is higher than that of ball bearing, and its rigidity is higher. Roller bearings have higher loading capacity, and cylindrical roller bearings have retaining edges to bear slight axial loads.
Question: What is the classification of bearings according to the shape of rolling elements?
Answer: Rolling bearings are mainly divided into: ball bearings and roller bearings. Among them, ball bearings are divided into: deep groove ball bearings, angular contact bearings and radial thrust ball bearings. Roller bearings are divided into: cylindrical roller bearings, needle bearings, cone roller bearings and self-aligning roller bearings.
Question: What is the classification of bearings according to load direction?
Answer: Bearing are divided into: radial bearings and thrust bearings according to the load direction. Among them, radial bearings are divided into: radial thrust ball bearings and radial roller bearings. Thrust bearings are divided into: thrust ball bearings and thrust roller bearings.
Question: What standard does the vibration class of this bearing meet?
Answer: The vibration class of the bearing is above Z1
Question: What kind of seal these ball bearing has?
Answer: These ball bearing are Contact Rubber Sealed type which encloses fully and provides optimal sealing against external contaminants.
Question: What are the signs of a failing rubber-sealed ball bearing?
Answer: When you notice the following signs, we recommend replacing it to new one:
•Unusual noise or vibration (grinding, squealing, or clicking sounds).
•Increased operating temperature due to lubrication loss.
•Excessive play or looseness in the bearing.
•Seal damage or grease leakage, indicating contamination or wear.
Question: What are the different types of ball bearing?
Answer: We have some types of ball bearings. The followings are typical types.
•Open Type: No sealing, suitable for high-speed applications with external lubrication.
•Steel Shielded (ZZ): Protects against dust and debris but not fully sealed.
•Rubber Sealed (DDU, LLU): Fully sealed to prevent contaminants and retain lubrication.
Question: Can rubber-sealed ball bearings be reused after disassembly?
Answer: It is not recommended to reuse rubber-sealed ball bearings after disassembly, as the seals can become damaged or lose their sealing ability. Once the bearing has been opened or disassembled, it may be exposed to contaminants that can affect its performance. For optimal performance, it's better to replace the bearing with a new one.

Check other FAQ (5 items) Hide

Tech Support

Technical Inquiry

Payment MethodMetode Pembayaran more Pelajari lebih lanjut

  • Bank TransferTransfer Bank
    • QRIS

About MISUMITentang MISUMI

About this WebsiteTentang Website ini

Useful ToolsAlat Serbaguna

Customer ServiceLayanan Pelanggan

MISUMI Contact Monday to Friday (8:30am to 5:30pm) , Saturday (8:30am to 3:00pm) *Order cut off time Monday to Friday: 4:30pm , Saturday : 2:00pm MISUMI Kontak Senin - Jumat (8:30 WIB - 17:30 WIB) , Sabtu (8:30WIB - 15:00 WIB) *Batas Waktu Pemesanan Senin - Jumat : 16:30 WIB , Sabtu : 14:00 WIB

  • Tel:021-8984-0008
  • Fax:021-8984-0007
Inquiry Permintaan
Mobile View Tampilan Mobile

Copyright © MISUMI Corporation All Rights Reserved.
