End Caps For Aluminum Frames【1-20 Pieces Per Package】

End Caps For Aluminum Frames
  • Volume Discount
Check FAQ of this product (2 items)

MISUMI

MiSUMi Economy 60

MISUMI

This is an economy item, The price is cheaper than the MISUMI standard product.

(i)Caution

  • MISUMI Economy series new products, with different sizes, can only be used in combination with MISUMI Economy series frames starting with L.

PDF

Part Number

Configured Part Number is shown.


Product Overview
Frame Caps, Economy series Special end cap for European standard aluminum alloy profiles with groove width of 6 mm
The end face cover plate is installed on the end surface of the profile, which not only increases the beauty but also ensures safety.
Economic Type Industrial Frame Parts Catalog P31

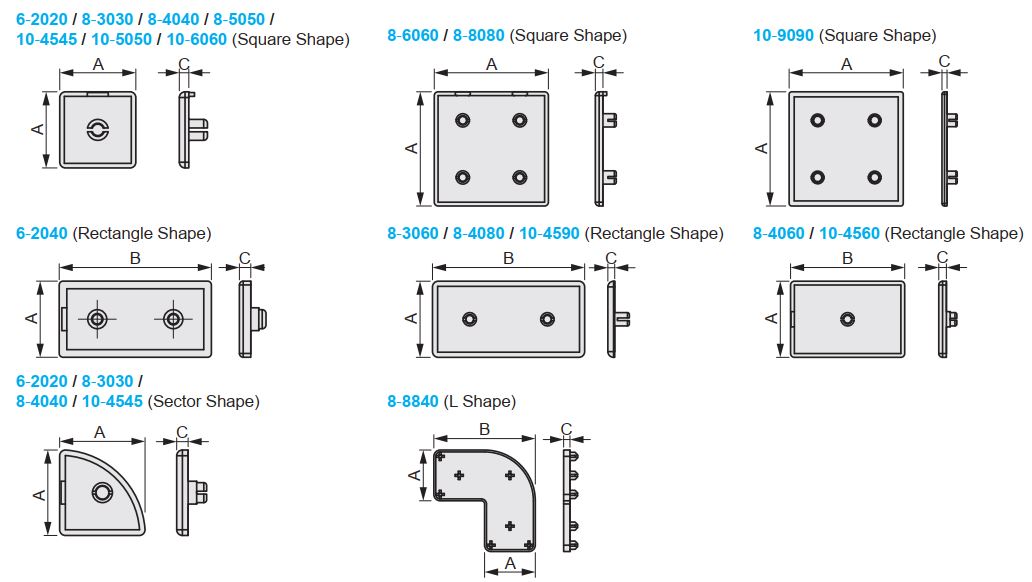

Dimensional Drawing
Economic Type Industrial Frame Parts Catalog
Material: Nylon
Specifications Table
Part NumberApplicable Frame No.ColorQuantity per Pack
(optional)		Width ALength BThickness CApplicable Frame
TypeTypesSlot Width
LCECSquare62020B
(Black)



G
(Light Gray)		20P20-32020
830303043030
4040404040
505010P508-5050
606020P608-6060
808010P808080
10454520P454545
505010P5010-5050
60606010-6060
9090909090
Rectangle6204020P204032040
83060306043060
4060404060
4080804080
10456010P45604560
4590904590
501005010050100
LCECRSector6202020P20-32020R
8303010P3043030R
4040404040R
104545454545R
LCECL Shape8884010P40808840
 Light gray models are only available for 2020, 3030, 4040 and 4080 types and are sold in 20P packages. Ligth gray for other models can also be specially ordered if necessary, with a minimum order quantity of 50 pcs, for example: LCEC8-4060-G.
 P is the abbreviation of pcs/pack, for example: 20P stands for 20 pcs/pack.
Product Features
① Frame Caps, European standard profile product, which is different from JIS standard products
② Frame Caps, Used to install on the end face of the profile, safe and beautiful
Precautions
※This product is a special accessory for European standard profiles and cannot be used with JIS standard profile products.
※CAD is different from the real object due to the early production cycle. The difference is that there are 4 more support points compared to the real object. Currently, the European standard end caps on the market are fixed by 1 center column, which has no effect on use. Therefore, the real object received shall prevail.
Example of Use
Economic Type Industrial Frame Parts Catalog P31

Part Number

CAD Data download and 3D preview are not available because the part number has not yet been determined.

  • *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
  • Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
Loading...

CAD Download

30
45
60
  1. 1
Part Number
LCEC6-2020-B
LCEC6-2020-B-20P
LCEC6-2020-G
LCEC6-2020-G-20P
LCEC6-2040-B
LCEC6-2040-B-20P
LCEC6-2040-G
LCEC8-3060-G
LCEC8-4060-B-20P
LCEC8-4060-G
LCEC8-4080-B
LCEC8-4080-B-20P
LCEC8-5050-G
LCEC8-6060-G
LCEC8-8080-G
LCEC8-8840-B-10P
LCEC8-8840-G
LCEC10-4545-G
LCEC10-4560-G
LCEC10-4590-G
LCEC10-5050-G
LCEC10-6060-G
LCEC10-9090-G
LCECR6-2020-B
LCECR6-2020-B-20P
LCECR6-2020-G
LCECR8-3030-G
LCECR8-4040-G
LCECR10-4545-G
Part NumberStandard Unit PriceNumber of pc(s). included in pkg.Minimum order quantityVolume DiscountDays to ShipRoHSCap Type Mounting Method Extrusion Size Material Extrusion Series Sale Type Color

5,100 IDR

1 Piece(s)Available Same day -Square ShapeCap Type2020[Plastic] PlasticLCF6Bulk SalesB (Black)

29,100 IDR

20 Pieces Per Package

1 Pack(s)Available Same day -Square ShapeCap Type2020[Plastic] PlasticLCF6Bag SalesB (Black)

5,500 IDR

1 Piece(s)Available Same day -Square ShapeCap Type2020[Plastic] PlasticLCF6Bulk SalesG (Gray)

37,800 IDR

20 Pieces Per Package

1 Pack(s)Available Same day -Square ShapeCap Type2020[Plastic] PlasticLCF6Bag SalesG (Gray)

4,700 IDR

1 Piece(s)Available Same day -Square ShapeCap Type2040[Plastic] PlasticLCF6Bulk SalesB (Black)

84,200 IDR

20 Pieces Per Package

1 Pack(s)Available 12 Day(s) -Square ShapeCap Type2040[Plastic] PlasticLCF6Bag SalesB (Black)

4,540 IDR

50 Piece(s)Available 10 Day(s) 10Rectangle ShapeCap Type2040PlasticLCF6Bulk SalesG (Gray)

7,217 IDR

50 Piece(s)Available 10 Day(s) 10Rectangle ShapeCap Type3060PlasticLCF8Bulk SalesG (Gray)

22,650 IDR

1 Piece(s)Available 10 Day(s) 10Rectangle ShapeCap Type4060PlasticLCF8Bag SalesB (Black)

8,209 IDR

50 Piece(s)Available 10 Day(s) 10Rectangle ShapeCap Type4060PlasticLCF8Bulk SalesG (Gray)

16,596 IDR

1 Piece(s)Available Same day -----LCF8Bulk SalesB (Black)

151,440 IDR

20 Pieces Per Package

1 Pack(s)Available Same day -Rectangle ShapeCap Type4080PlasticLCF8Bag SalesB (Black)

7,341 IDR

50 Piece(s)Available 10 Day(s) 10Square ShapeCap Type5050PlasticLCF8Bulk SalesG (Gray)

9,442 IDR

50 Piece(s)Available 10 Day(s) 10Square ShapeCap Type6060PlasticLCF8Bulk SalesG (Gray)

12,652 IDR

50 Piece(s)Available Same day 10Square ShapeCap Type8080PlasticLCF8Bulk SalesG (Gray)

55,860 IDR

10 Pieces Per Package

1 Pack(s)Available 18 Day(s) -L ShapeCap Type8840PlasticLCF8Bag SalesB (Black)

10,848 IDR

50 Piece(s)Available 10 Day(s) 10L ShapeCap Type8840PlasticLCF8Bulk SalesG (Gray)

6,538 IDR

50 Piece(s)Available 10 Day(s) 10Square ShapeCap Type4545PlasticLCF10Bulk SalesG (Gray)

9,154 IDR

50 Piece(s)Available 10 Day(s) 10Rectangle ShapeCap Type4560PlasticLCF10Bulk SalesG (Gray)

10,284 IDR

50 Piece(s)Available 10 Day(s) 10Rectangle ShapeCap Type4590PlasticLCF10Bulk SalesG (Gray)

7,341 IDR

50 Piece(s)Available Same day 10Square ShapeCap Type5050PlasticLCF10Bulk SalesG (Gray)

9,045 IDR

50 Piece(s)Available 10 Day(s) 10Square ShapeCap Type6060PlasticLCF10Bulk SalesG (Gray)

13,532 IDR

50 Piece(s)Available 10 Day(s) 10Square ShapeCap Type9090PlasticLCF10Bulk SalesG (Gray)

5,900 IDR

1 Piece(s)Available Same day -Single Radius ShapeCap Type2020[Plastic] PlasticLCFR6Bulk SalesB (Black)

58,900 IDR

20 Pieces Per Package

1 Pack(s)Available 12 Day(s) -Single Radius ShapeCap Type2020[Plastic] PlasticLCFR6Bag SalesB (Black)

3,545 IDR

50 Piece(s)Available 10 Day(s) 10Single Radius ShapeCap Type2020PlasticLCFR6Bulk SalesG (Gray)

4,970 IDR

50 Piece(s)Available 10 Day(s) 10Single Radius ShapeCap Type3030PlasticLCFR8Bulk SalesG (Gray)

6,394 IDR

50 Piece(s)Available 10 Day(s) 10Single Radius ShapeCap Type4040PlasticLCFR8Bulk SalesG (Gray)

7,428 IDR

50 Piece(s)Available 10 Day(s) 10Single Radius ShapeCap Type4545PlasticLCFR10Bulk SalesG (Gray)

Loading...

  1. 1

Basic Information

Type Profile End Cap Material Nylon

Configure

Clear All

29 Part Numbers

View Part Numbers

Configure Remaining Specifications
Completed
loading

Specification/Dimensions

  • Cap Type

    • Square Shape
    • Rectangle Shape
    • Single Radius Shape
    • L Shape

    Clear

  • Mounting Method

    • Cap Type

    Clear

  • Extrusion Size

    • 2020
    • 2040
    • 3030
    • 3060
    • 4040
    • 4060
    • 4080
    • 4545
    • 4560
    • 4590
    • 5050
    • 6060
    • 8080
    • 8840
    • 9090

    Clear

  • Material

    • Plastic
      • Plastic

    Clear

  • Extrusion Series

    • LCF6
    • LCFR6
    • LCF8
    • LCFR8
    • LCF10
    • LCFR10

    Clear

  • Sale Type

    • Bag Sales
    • Bulk Sales

    Clear

  • Color

    • B (Black)
    • G (Gray)

    Clear

  • type

    • LCEC10-4545
    • LCEC10-4560
    • LCEC10-4590
    • LCEC10-5050
    • LCEC10-6060
    • LCEC10-9090
    • LCEC6-2020
    • LCEC6-2040
    • LCEC8-3060
    • LCEC8-4060
    • LCEC8-4080
    • LCEC8-5050
    • LCEC8-6060
    • LCEC8-8080
    • LCEC8-8840
    • LCECR10-4545
    • LCECR6-2020
    • LCECR8-3030
    • LCECR8-4040

    Clear

  • CAD

    • 2D
    • 3D

    Clear

Days to Ship

    • All
    • Same day
    • 10 Day(s) or Less
    • 12 Day(s) or Less
    • 18 Day(s) or Less

    Clear

Specify Alterations

Frequently asked question (FAQ)

Question: Can the European standard profile products be matched with the specifications of MISUMI profiles I bought before?
Answer: No, they cannot. The dimensions of European standard profiles are different from JIS specifications, so they cannot be used together.
Question: When this product is ordered, the model is followed by 20P, what does it mean?
Answer: The minimum order quantity is set for the special end cap for economy series European standard aluminum alloy profiles with groove width of 10mm launched this time. 20P means that the minimum order is 20 pcs.
