- Penghentian penjualan kategori produk pneumatik Seri Ekonomi (E-series). Info Detail
Notice of End of Sales for Economy Series Pneumatic Equipment Category. More information.
Aluminum Extrusion Anti-Slip Surface Cover
- Volume Discount
[Features]·This is a slot cover and non-slip material for the surface of the aluminum extrusion.
Part Number
Configured Part Number is shown.

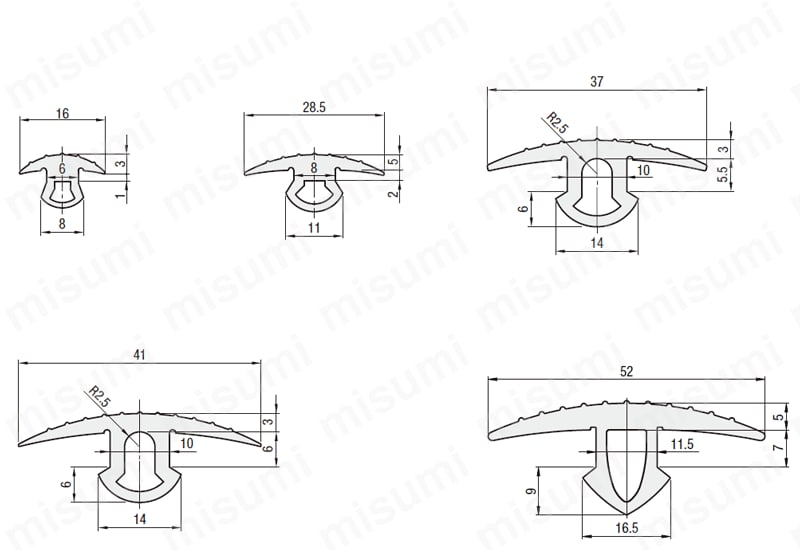

Dimensional Drawing of Slot Covers
For 5 Series
HSCG5
HSCGF5
For 6 Series
HSCG6
HSCGF6
For 8 Series
HSCG8
HSCGF8
For 8-45 series
HSCG845
HSCGF845
For 10 series
HSCG10
HSCGF10
[H] Slot Covers Hardness: Shore A60
[!]Heat resistance: -40 to 120°C
Specification Table of Slot Covers
| Model | − | color | − | length |
| HSCG6 HSCGF845 | − − | B.S. | − − | 12 1520 |
| Model | color | Length m | Compatible frame (type) | |
| Type | No. | |||
| HSCG | 5 | B (Black) S (Light Gray) Y (Yellow) | 12 | 5 Series |
| 6 | 6 Series | |||
| 8 | 8 Series | |||
| 845 | 8-45 Series | |||
| 10 | S (Light Gray) | 10 Series | ||
| Model | color | Length specified in 1mm increments | Compatible frame (type) | |
| Type | No. | |||
| HSCGF | 5 | B (Black) S (Light Gray) Y (Yellow) | 50–3000 | 5 Series |
| 6 | 6 Series | |||
| 8 | 8 Series | |||
| 845 | 8-45 Series | |||
| 10 | S (Light Gray) | 10 Series | ||
Specifications
| Part Number | - | Color | - | Length |
| HSCG6 HSCGF845 | - - | B S | - - | 12 1520 |
| Part Number | Color | Length m | Extrusion (Type) | |
| Type | No. | |||
| HSCG | 5 | B (Black) S (Light Gray) | 12 | HFS5 |
| 6 | HFS6 | |||
| 8 | HFS8 | |||
| 845 | HFS8-45 | |||
| Part Number | Color | Length 1mm Increment | Extrusion (Type) | |
| Type | No. | |||
| HSCGF | 5 | B (Black) S (Light Gray) | 50~3000 | HFS5 |
| 6 | HFS6 | |||
| 8 | HFS8 | |||
| 845 | HFS8-45 | |||
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
| Part Number |
|---|
| HSCG5-B-12 |
| HSCG5-S-12 |
| HSCG6-B-12 |
| HSCG6-S-12 |
| HSCG8-B-12 |
| HSCG8-S-12 |
| HSCG845-B-12 |
| HSCG845-S-12 |
| HSCGF5-B-[50-3000/1] |
| HSCGF5-S-[50-3000/1] |
| HSCGF6-B-[50-3000/1] |
| HSCGF6-S-[50-3000/1] |
| HSCGF8-B-[50-3000/1] |
| HSCGF8-S-[50-3000/1] |
| HSCGF845-B-[50-3000/1] |
| HSCGF845-S-[50-3000/1] |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | RoHS | Extrusion Series | Color | Compatible Frame (Series) | Length | Length (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
1,095,795 IDR | 1 Piece(s) | Available | 9 Day(s) or more | 10 | MISUMI 5 Series (6 mm Groove Width) | B (Black) | 5 Series | Fixed Length 12m | - | |
1,095,795 IDR | 1 Piece(s) | Available | 17 Day(s) or more | 10 | MISUMI 5 Series (6 mm Groove Width) | S (Light Gray) | 5 Series | Fixed Length 12m | - | |
1,568,153 IDR | 1 Piece(s) | Available | 17 Day(s) or more | 10 | MISUMI 6 Series (8 mm Groove Width) | B (Black) | 6 Series | Fixed Length 12m | - | |
1,568,153 IDR | 1 Piece(s) | Available | 17 Day(s) or more | 10 | MISUMI 6 Series (8 mm Groove Width) | S (Light Gray) | 6 Series | Fixed Length 12m | - | |
1,887,521 IDR | 1 Piece(s) | Available | 17 Day(s) or more | 10 | MISUMI 8 Series (10 mm Groove Width) | B (Black) | 8 Series | Fixed Length 12m | - | |
1,887,521 IDR | 1 Piece(s) | Available | 9 Day(s) or more | 10 | MISUMI 8 Series (10 mm Groove Width) | S (Light Gray) | 8 Series | Fixed Length 12m | - | |
1,964,017 IDR | 1 Piece(s) | Available | 17 Day(s) or more | 10 | MISUMI 8-45 Series (10 mm Groove Width) | B (Black) | 8-45 Series | Fixed Length 12m | - | |
1,964,017 IDR | 1 Piece(s) | Available | 17 Day(s) or more | 10 | MISUMI 8-45 Series (10 mm Groove Width) | S (Light Gray) | 8-45 Series | Fixed Length 12m | - | |
- | 1 Piece(s) | 9 Day(s) or more | 10 | MISUMI 5 Series (6 mm Groove Width) | B (Black) | 5 Series | Configurable Length | 50 ～ 3000 | ||
- | 1 Piece(s) | 17 Day(s) or more | 10 | MISUMI 5 Series (6 mm Groove Width) | S (Light Gray) | 5 Series | Configurable Length | 50 ～ 3000 | ||
- | 1 Piece(s) | 17 Day(s) or more | 10 | MISUMI 6 Series (8 mm Groove Width) | B (Black) | 6 Series | Configurable Length | 50 ～ 3000 | ||
- | 1 Piece(s) | 17 Day(s) or more | 10 | MISUMI 6 Series (8 mm Groove Width) | S (Light Gray) | 6 Series | Configurable Length | 50 ～ 3000 | ||
- | 1 Piece(s) | 17 Day(s) or more | 10 | MISUMI 8 Series (10 mm Groove Width) | B (Black) | 8 Series | Configurable Length | 50 ～ 3000 | ||
- | 1 Piece(s) | 17 Day(s) or more | 10 | MISUMI 8 Series (10 mm Groove Width) | S (Light Gray) | 8 Series | Configurable Length | 50 ～ 3000 | ||
- | 1 Piece(s) | 17 Day(s) or more | 10 | MISUMI 8-45 Series (10 mm Groove Width) | B (Black) | 8-45 Series | Configurable Length | 50 ～ 3000 | ||
- | 1 Piece(s) | 17 Day(s) or more | 10 | MISUMI 8-45 Series (10 mm Groove Width) | S (Light Gray) | 8-45 Series | Configurable Length | 50 ～ 3000 |
Loading...
Example
Basic Information
| Material | EPDM | Specifications | Antislip Covers Type |
|---|
Specification/Dimensions
-
Extrusion Series
- MISUMI 5 Series (6 mm Groove Width)
- MISUMI 6 Series (8 mm Groove Width)
- MISUMI 8 Series (10 mm Groove Width)
- MISUMI 8-45 Series (10 mm Groove Width)
-
Color
- B (Black)
- S (Light Gray)
-
Compatible Frame (Series)
- 5 Series
- 6 Series
- 8 Series
- 8-45 Series
-
Length
- Fixed Length 12m
- Configurable Length
-
Length(mm)
-
type
- HSCG
- HSCGF
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- 9 Day(s) or Less
- 17 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Tech Support
- Factory Automation, Electronics, Tools, & MRO (Maintenance, Repair and Operations)
- Tel：021-8990-4102 / FAX：021-8990-5803
- 8:30am - 5:30pm (Monday - Friday)
- Technical Inquiry
-
Bank TransferTransfer Bank
MISUMI Contact
MISUMI Kontak
Copyright © MISUMI Corporation All Rights Reserved.
How can we improve?Bagaimana Kami bisa meningkatkan Pelayanan?
How can we improve?Bagaimana Kami bisa meningkatkan Pelayanan?
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Customer Privacy Policy Walaupun Kami tidak dapat langsung menjawab saran yang ditulis di lembar ini, informasinya akan kami review untuk peningkatan pelayanan dikemudian hari
Kebijakan Privacy
Thank you for your cooperation.Terima kasih atas kerjasama anda.
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Please use the inquiry form.
Customer Privacy Policy Walaupun Kami tidak dapat langsung menjawab saran yang ditulis di lembar ini, informasinya akan kami review untuk peningkatan pelayanan dikemudian hari
Silahkan pergunakan Forms Permintaan.
Kebijakan Privacy
