Solid Disk Handwheels/Cost Efficient Product
Click this image to zoom it.
Move the mouse over the image to zoom
- Volume Discount
[Features]·A general-purpose standard solid handwheel. ·A shaft hole fixed type.
(i)Caution
- Please check the content on our website as the PDF does not contain the most up-to-date information.
Part Number
Configured Part Number is shown.

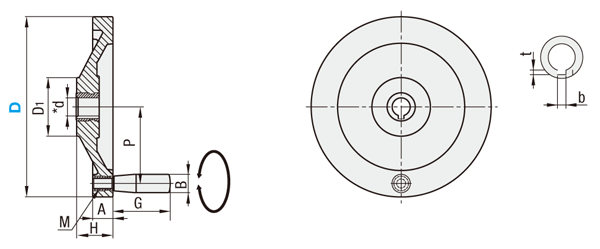

Dimensional Drawing
[ ! ] The *d part is H7 Hole.
| Type | Handwheel | Bushing | Handle Mounting Hole | Handle | Handle Thread | ||
| [ M ]Material | [ M ]Material | [ S ]Surface Treatment | [ M ]Material | [ M ]Material | [ M ]Material | [ S ]Surface Treatment | |
| C－PHSN | Phenol Resin | S45C | Zinc Plating | Brass | Phenol Resin | Carbon Steel for Mechanical Structure | Zinc Plating |
Specification Table
| Part Number |
| C－PHSN100 |
| Part Number | H | A | D1 | d | M | P | B | G | Shaft Bore Details | Mass (g) | ||
| Type | D | b | t | |||||||||
| C－PHSN | 63 | 20.5 | 13 | 28 | 8 | 6 | 25 | 15 | 32 | 3 | 1.4 | 86 |
| 80 | 21 | 13 | 30 | 10 | 6 | 32.5 | 15 | 32 | 3 | 1.4 | 112 | |
| 100 | 26 | 15 | 40 | 12 | 6 | 40 | 20 | 50 | 4 | 1.8 | 212 | |
| 125 | 30 | 16 | 46 | 12 | 8 | 52 | 22 | 60 | 4 | 1.8 | 334 | |
| 160 | 38 | 21 | 53 | 16 | 10 | 68 | 26 | 80 | 5 | 2.3 | 575 | |
| 200 | 40 | 20 | 60 | 18 | 10 | 88 | 26 | 80 | 6 | 2.8 | 844 | |
| 250 | 50.5 | 25 | 70 | 22 | 12 | 112 | 28 | 100 | 6 | 2.8 | 1,386 | |
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
| Part Number |
|---|
| C-PHSN63 |
| C-PHSN80 |
| C-PHSN125 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | RoHS | Handle, Outer Dia. D (Ø) | Handle Thickness (mm) | Mounting Section, Outer Dia. (Ø) | Round Hole Dia. (Ø) |
|---|---|---|---|---|---|---|---|---|---|
102,675 IDR | 1 Piece(s) | Available | 8 Day(s) or more | - | 63 | 20.5 | 28 | 8 | |
104,002 IDR | 1 Piece(s) | Available | 8 Day(s) or more | - | 80 | 21 | 30 | 10 | |
166,652 IDR | 1 Piece(s) | 8 Day(s) or more | 10 | 125 | 30 | 46 | 12 |
Loading...
Basic Information
| Handle type | Solid | Inner Dia. Shaft Bore Shape | Hole + Keyway | Handle material | Phenol |
|---|---|---|---|---|---|
| Handle Bore | With Handle | Tap | None | Handle Type | Revolving Handle |
| Grip Material Details | Phenol |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
