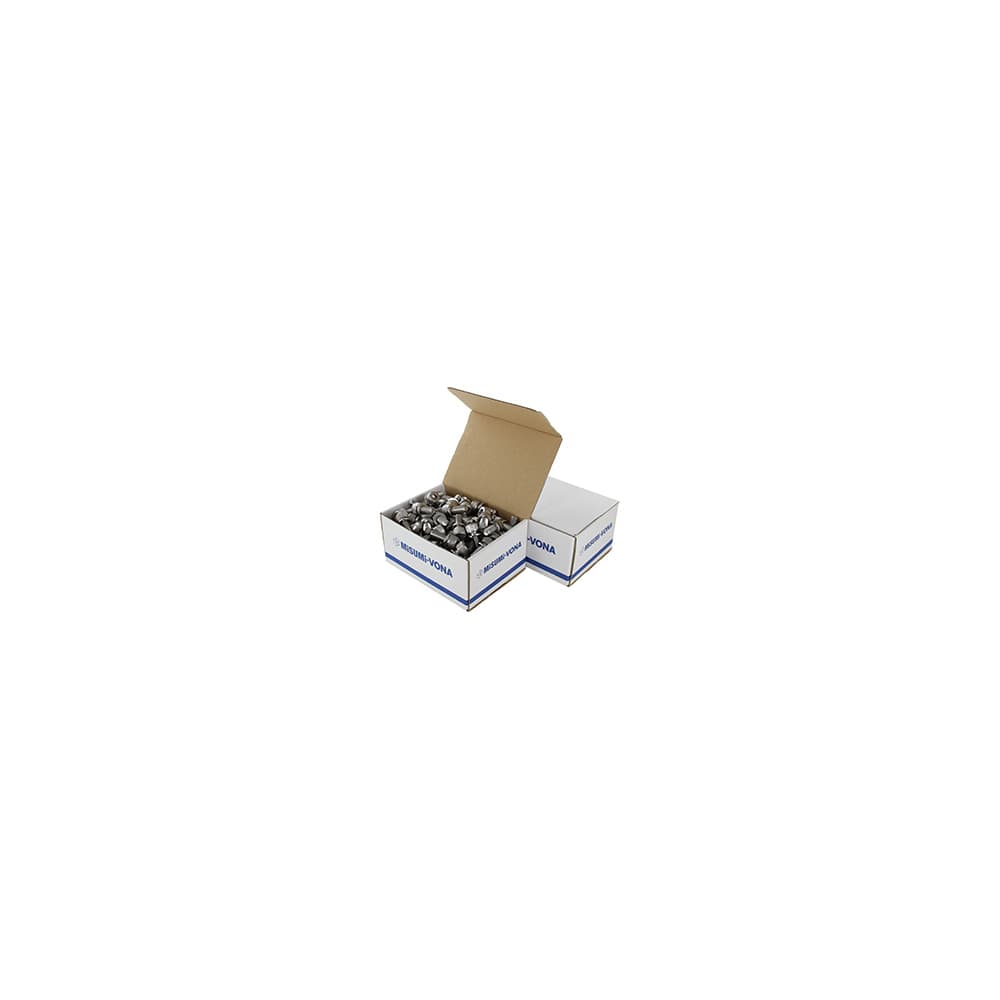

Cross-Head Pan Head Screw With Captive Washer - Single Item / Small Box
- On Sale Till 31/03/2025
- Volume Discount
Sizes are M3 to M6. You can order from 1 pc. If you want to keep stock, purchasing by the small carton is advantageous.
Part Number
Configured Part Number is shown.
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | RoHS | Nominal of Thread (M) | Length L (mm) | Pitch (mm) | Material | Surface Treatment |
|---|---|---|---|---|---|---|---|---|---|---|
15,491 IDR | 1 Piece(s) | Available | 14 Day(s) or more | 10 | 3 | 6 | 0.5 | [Steel] SWCH Equivalent | [Trivalent Chromate] Trivalent Chromate | |
15,491 IDR | 1 Piece(s) | Available | 14 Day(s) or more | 10 | 3 | 8 | 0.5 | [Steel] SWCH Equivalent | [Trivalent Chromate] Trivalent Chromate | |
15,491 IDR | 1 Piece(s) | Available | 14 Day(s) or more | 10 | 3 | 10 | 0.5 | [Steel] SWCH Equivalent | [Trivalent Chromate] Trivalent Chromate | |
15,491 IDR | 1 Piece(s) | Available | 14 Day(s) or more | 10 | 3 | 12 | 0.5 | [Steel] SWCH Equivalent | [Trivalent Chromate] Trivalent Chromate | |
15,873 IDR | 1 Piece(s) | Available | 14 Day(s) or more | 10 | 4 | 6 | 0.7 | [Steel] SWCH Equivalent | [Trivalent Chromate] Trivalent Chromate | |
15,873 IDR | 1 Piece(s) | Available | 14 Day(s) or more | 10 | 4 | 8 | 0.7 | [Steel] SWCH Equivalent | [Trivalent Chromate] Trivalent Chromate | |
15,873 IDR 1,348 IDR | 1 Piece(s) | Same day | 10 | 4 | 10 | 0.7 | [Steel] SWCH Equivalent | [Trivalent Chromate] Trivalent Chromate | ||
15,873 IDR 343 IDR | 1 Piece(s) | Same day | 10 | 4 | 12 | 0.7 | [Steel] SWCH Equivalent | [Trivalent Chromate] Trivalent Chromate | ||
15,873 IDR | 1 Piece(s) | Available | 14 Day(s) or more | 10 | 4 | 15 | 0.7 | [Steel] SWCH Equivalent | [Trivalent Chromate] Trivalent Chromate | |
16,446 IDR | 1 Piece(s) | Available | 14 Day(s) or more | 10 | 5 | 8 | 0.8 | [Steel] SWCH Equivalent | [Trivalent Chromate] Trivalent Chromate | |
16,446 IDR | 1 Piece(s) | Available | 14 Day(s) or more | 10 | 5 | 10 | 0.8 | [Steel] SWCH Equivalent | [Trivalent Chromate] Trivalent Chromate | |
16,446 IDR 998 IDR | 1 Piece(s) | Same day | 10 | 5 | 12 | 0.8 | [Steel] SWCH Equivalent | [Trivalent Chromate] Trivalent Chromate | ||
16,446 IDR | 1 Piece(s) | Available | 14 Day(s) or more | 10 | 5 | 15 | 0.8 | [Steel] SWCH Equivalent | [Trivalent Chromate] Trivalent Chromate | |
17,021 IDR | 1 Piece(s) | Available | 14 Day(s) or more | 10 | 6 | 10 | 1 | [Steel] SWCH Equivalent | [Trivalent Chromate] Trivalent Chromate | |
17,021 IDR | 1 Piece(s) | Available | 14 Day(s) or more | 10 | 6 | 12 | 1 | [Steel] SWCH Equivalent | [Trivalent Chromate] Trivalent Chromate | |
17,021 IDR | 1 Piece(s) | Available | 14 Day(s) or more | 10 | 6 | 15 | 1 | [Steel] SWCH Equivalent | [Trivalent Chromate] Trivalent Chromate | |
17,021 IDR | 1 Piece(s) | Available | 14 Day(s) or more | 10 | 6 | 20 | 1 | [Steel] SWCH Equivalent | [Trivalent Chromate] Trivalent Chromate | |
16,255 IDR | 1 Piece(s) | Available | 14 Day(s) or more | 10 | 3 | 6 | 0.5 | [Stainless Steel] SUS304 Equivalent | Not Provided | |
16,255 IDR | 1 Piece(s) | Available | 14 Day(s) or more | 10 | 3 | 8 | 0.5 | [Stainless Steel] SUS304 Equivalent | Not Provided | |
16,255 IDR | 1 Piece(s) | Available | 14 Day(s) or more | 10 | 3 | 10 | 0.5 | [Stainless Steel] SUS304 Equivalent | Not Provided | |
16,255 IDR | 1 Piece(s) | Available | 14 Day(s) or more | 10 | 3 | 12 | 0.5 | [Stainless Steel] SUS304 Equivalent | Not Provided | |
16,638 IDR | 1 Piece(s) | Available | 14 Day(s) or more | 10 | 4 | 6 | 0.7 | [Stainless Steel] SUS304 Equivalent | Not Provided | |
16,638 IDR | 1 Piece(s) | Available | 14 Day(s) or more | 10 | 4 | 8 | 0.7 | [Stainless Steel] SUS304 Equivalent | Not Provided | |
16,638 IDR | 1 Piece(s) | Available | 14 Day(s) or more | 10 | 4 | 10 | 0.7 | [Stainless Steel] SUS304 Equivalent | Not Provided | |
16,638 IDR | 1 Piece(s) | Available | 14 Day(s) or more | 10 | 4 | 12 | 0.7 | [Stainless Steel] SUS304 Equivalent | Not Provided | |
16,638 IDR | 1 Piece(s) | Available | 14 Day(s) or more | 10 | 4 | 15 | 0.7 | [Stainless Steel] SUS304 Equivalent | Not Provided | |
17,021 IDR | 1 Piece(s) | Available | 14 Day(s) or more | 10 | 5 | 8 | 0.8 | [Stainless Steel] SUS304 Equivalent | Not Provided | |
17,021 IDR | 1 Piece(s) | Available | 14 Day(s) or more | 10 | 5 | 10 | 0.8 | [Stainless Steel] SUS304 Equivalent | Not Provided | |
17,021 IDR | 1 Piece(s) | Available | 14 Day(s) or more | 10 | 5 | 12 | 0.8 | [Stainless Steel] SUS304 Equivalent | Not Provided | |
17,021 IDR | 1 Piece(s) | Available | 14 Day(s) or more | 10 | 5 | 15 | 0.8 | [Stainless Steel] SUS304 Equivalent | Not Provided | |
17,403 IDR | 1 Piece(s) | Available | 14 Day(s) or more | 10 | 6 | 10 | 1 | [Stainless Steel] SUS304 Equivalent | Not Provided | |
17,403 IDR | 1 Piece(s) | Available | 14 Day(s) or more | 10 | 6 | 12 | 1 | [Stainless Steel] SUS304 Equivalent | Not Provided | |
17,403 IDR | 1 Piece(s) | Available | 14 Day(s) or more | 10 | 6 | 15 | 1 | [Stainless Steel] SUS304 Equivalent | Not Provided | |
17,403 IDR | 1 Piece(s) | Available | 14 Day(s) or more | 10 | 6 | 20 | 1 | [Stainless Steel] SUS304 Equivalent | Not Provided |
Loading...
Basic Information
| Detailed Shape | Pan Head | Mounting Hole Shape | Phillips | Basic Shape | Standard (Round) |
|---|---|---|---|---|---|
| Thread Type | Metric, Coarse | Tip Shape | Flat End | Additional Shape | With Captured Washer |
| Sales Unit | Low Quantity (Available beginning with 1 pc.) | Application | Standard |
Specification/Dimensions
-
Nominal of Thread (M)
-
Length L (mm)
-
Pitch(mm)
-
Material
- Steel
- Stainless Steel
- Steel
-
Surface Treatment
- Not Provided
- Trivalent Chromate
-
type
- PSET
- PSETS
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- Same day
- 14 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Tech Support
- Factory Automation, Electronics, Tools, & MRO (Maintenance, Repair and Operations)
- Tel：021-8990-4102 / FAX：021-8990-5803
- 8:30am - 5:30pm (Monday - Friday)
- Technical Inquiry
-
Bank TransferTransfer Bank
MISUMI Contact
MISUMI Kontak
Copyright © MISUMI Corporation All Rights Reserved.
How can we improve?Bagaimana Kami bisa meningkatkan Pelayanan?
How can we improve?Bagaimana Kami bisa meningkatkan Pelayanan?
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Customer Privacy Policy Walaupun Kami tidak dapat langsung menjawab saran yang ditulis di lembar ini, informasinya akan kami review untuk peningkatan pelayanan dikemudian hari
Kebijakan Privacy
Thank you for your cooperation.Terima kasih atas kerjasama anda.
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Please use the inquiry form.
Customer Privacy Policy Walaupun Kami tidak dapat langsung menjawab saran yang ditulis di lembar ini, informasinya akan kami review untuk peningkatan pelayanan dikemudian hari
Silahkan pergunakan Forms Permintaan.
Kebijakan Privacy
