Conveyor Roller Shaft Holder for Easy Transfer Line Setup
- Volume Discount
"By using this in combination with conveyor rollers, a transfer line can be established easily."
Part Number
Configured Part Number is shown.
Dimensional Drawing of Conveyor Parts
[ M ] Conveyor Parts Material: Glass Fiber Reinforced ABS Resin
Specification Table of Conveyor Parts
| Part Number of Conveyor Parts | - | L |
| HSCX6 | - | 300 |
・To check the latest price, please click the "Check Price" button after confirming the model number.
| Conveyor Parts Model | L | Compatible frames (series) | Compatible roller shaft diameter | |
| Type | No. | |||
| HSCX | 6 | twenty five | 6 Series | φ6 φ8 φ12 |
| 300 | ||||
Overview and Specifications of Conveyor Parts
Use a post-insertion lock nut or frame as a stopper at the end
to prevent the Conveyor Parts from falling off the frame.

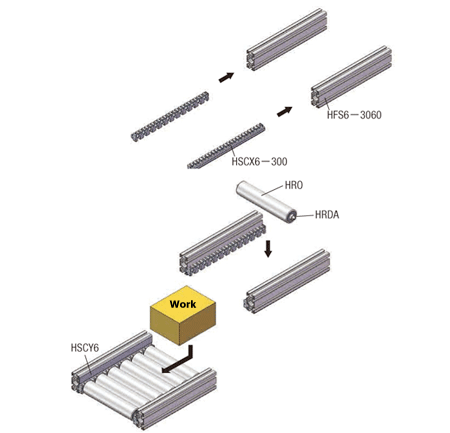

How to Use of Conveyor Parts
① Remove the Conveyor Parts
Place it in the groove of the frame.
②Pass the shaft through the Conveyor Parts,
Fit it from the top.
3) Use a slip cover in combination.
A conveyor line can be easily created.
Specifications
| Part Number | - | L |
| HSCX6 | - | 300 |
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
Loading...
Example
Basic Information
| Type | Conveyor Roller Shaft Holders | Material | Glass Fiber Reinforced ABS Resin | Specifications | For 6 Series |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
