Double Joint Kit for Post Assembly Insertion, Steel

Double Joint Kit for Post Assembly Insertion, Steel

Click this image to zoom it.

Move the mouse over the image to zoom

  • Volume Discount

MISUMI

MISUMI

Fastening securely from 2 parts is enabled. It can achieve one of the tightest fastening out of all hidden joints.

PDFP.2-607-2014

Part Number

Configured Part Number is shown.

Dimensional Drawing of Blind Joint Parts

HPJN(Post-insertion double Blind Joint Parts)

① Post-insertion double Blind Joint Parts A

② Rear-insertion double Blind Joint Parts B

③Blind Joint Parts pipe

5 Series (groove width 6mm) Blind Joint Parts post-insertion double joint kit: Related images
Part Name[M] Blind Joint Parts Material
Post-insertion double joint
(A/B)		SCS13
Blind Joint Parts PipeNo.5−20
No.5−25
No.5−60		SUS304 equivalent
(sintered)
No.5−40SUS304
Hexagonal Socket Head BoltSUS304

Specification Table of Blind Joint Parts

Blind Joint Parts Model
HPJN5-20
・The price list below is currentas of April 2011.
・To check the latest price, please click the "Check Price" button after confirming the model number.
Blind Joint Parts Modelaccessories
Blind Joint Parts TypeNo.① Post-insertion double joint AQuantity② Rear-insertion double joint BQuantity③Blind Joint Parts pipeQuantity④Hexagon socket head boltQuantity
HPJN5−20Rear-insertion double joint A51Rear-insertion double joint B51Joint Pipe 5-201M3×151
5−40Blind Joint Parts Pipe 5-40M3×35
5-25Blind Joint Parts pipe 5-25M3 x 20
5-60Joint Pipe 5-60M3×55

Part NameLDd
Joint Pipe 5-20874.7
Joint Pipe 5-4028
Joint pipe 5-2513
Joint Pipe 5-6048
[ ! ]For details on how to fasten the pipe, please click here

. ③ Blind Joint Parts pipe
Rear-mount double joint kitCompatible frame number[Exception] Unusable frames
HPJN5-20May-2020
Cannot be used on surfaces without grooves .
HPJN5-405−20405−4040
HPJN5-255-25255-2550
HPJN5-605-20605-4060

How to Connect of Blind Joint Parts

procedureFront ViewSide ViewexplanationHow to specify the model (for 30mm square)
1Related image 1_Connection methodRelated image 7_Connection methodBlind Joint Parts



First, insert
the Blind Joint Parts pipe C into the M hole on the frame ①.
Aluminum Frame 6 Series −1 Row Groove−
①HFS6−3030−1000−LMH


Aluminum Frame 6 Series −1 Row Groove−
②HFS6−3030−1000


Rear-mount double joint kit
HPJN6-30
Ⓐ Post-insertion double joint A
Ⓑ Post-insertion double joint B
Ⓒ Blind Joint Parts pipe


Blind Joint Parts
- When the hexagon socket bolt is tightened,
a pulling force is applied as shown in the figure,
fastening the frames together.

■Example of use with a rectangular frame
Blind Joint Parts
[ ! ]When drilling M
holes ,
no holes will be drilled in the center row.

Blind Joint Parts
ex.）Blind Joint Parts HFS6−3090−1000−LMH
2Related image 2_Connection methodRelated image 8_Connection method

Place the rear-mount double Blind Joint Parts Ⓐ
Ⓑ horizontally and
insert it into the groove of the frame ②.		Blind Joint Parts
3Related image 3_Connection methodRelated image 9_Connection methodBlind Joint Parts
Rotate the rear-insertion double Blind Joint Parts Ⓐ and Ⓑ by 90 degrees.
4Related image 4_Connection methodRelated image 10_Connection method
Insert the rear-mount double Blind Joint Parts Ⓐ and Ⓑ into the grooves of the frame.		Blind Joint Parts
5Related image 5_Connection methodRelated image 11_Connection methodBlind Joint PartsInsert the hexagon socket bolt into the countersunk hole of post-assembly
double Blind Joint Parts Ⓐ.
6Related image 6_Connection methodRelated image 12_Connection method

When the hexagonal socket bolt
is tightened with a hexagonal wrench, frames ① and ②
are pulled upward,
joining the frames together.		Blind Joint Parts

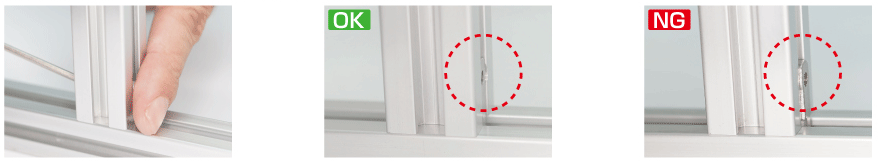

*Note:
When tightening the bolt, hold the Blind Joint Parts with your fingers while tightening. (1) This
will ensure that the bolt is securely fastened in the center position without protruding from the frame. (2)
If you tighten the bolt without holding it down, it may be tightened in a position that protrudes from the frame. (3)

(1) Hold the Blind Joint Parts with your fingers and tighten them
(2) Fastened without protruding from the frame
(3) Fastened while protruding from the frame
5 Series Model Example

■5 Series Model Example

・Example of mounting to a frame

5 Series (groove width 6mm) Blind Joint Parts Post-insertion double joint kit Related image 1_Connection method
symbolProduct nameBlind Joint Parts Model
(1)Aluminum frame M hole additional machiningHFS5-2020-1000-LMH
(2)Aluminum frameHFS5-2020-1000
(3)Rear-mount double joint kitHPJN5-20

Product Comparison Information of Blind Joint Parts

■5 Series Blind Joint

Product namePost-insertion double
Blind Joint Parts		Screw
Blind Joint Parts		Tapping
Blind Joint Parts		Center
Blind Joint Parts		Parallel
Blind Joint Parts
Product PhotosRelated image 1_Product comparison informationRelated image 2_Product comparison informationRelated image 3_Product comparison informationRelated image 4_Product comparison informationRelated image 5_Product comparison information
Installation DiagramRelated image 6_Product comparison informationRelated image 7_Product comparison informationRelated image 8_Product comparison informationRelated image 9_Product comparison informationRelated image 10_Product comparison information
Blind Joint Parts Material
Equivalent to SCS13/SUS304		Iron or SUS304SWCH-18ASCS13SCS13/SUS304
Blind Joint Parts FeaturesStable fastening is possible from two points. This is the strongest fastening possible with Blind Joint Parts.The plate allows for reliable and inexpensive connection.No additional tapping holes are required. This is the most inexpensive Blind Joint Parts.This is the most common blind joint that can be used with a wide range of aluminium frames.The frames can be connected side-by-side.
5 Series
Product Page		ViewingProduct pageProduct pageProduct pageProduct page

Related Items of Blind Joint Parts

■5 Series (groove width 6mm)

Product nameAluminum frameBlind Joint PartsFrame capGroove covernut
photographRelated image 1_Related productsRelated image 2_Related productsRelated image 3_Related productsRelated image 4_Related productsRelated image 5_Related products
Product pageHereHereHereHereHere

Part Number

CAD Data download and 3D preview are not available because the part number has not yet been determined.

  • *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
  • Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
Loading...

CAD Download

30
45
60
  1. 1
Part Number
HPJN5-20
HPJN5-25
HPJN5-40
HPJN5-60
Part NumberStandard Unit PriceMinimum order quantityVolume DiscountDays to ShipRoHSExtrusion No.

59,284 IDR

1 Piece(s)Available 8 Day(s) or more 105-20

65,021 IDR

1 Piece(s)Available 8 Day(s) or more 105-25

68,846 IDR

1 Piece(s)Available 8 Day(s) or more 105-40

74,583 IDR

1 Piece(s)Available 8 Day(s) or more 105-60

Loading...

  1. 1


Basic Information

Series Brackets for 5 Series (Extrusion Slot Width 6mm) Material SUS304 Joint Kit Type Post-Assembly Insertion Double Joint Kits
