5 Series Aluminum Frame Blind Bracket - 6mm Slot
- Volume Discount
This is a type of the bracket that is fitted to the frame groove. The external appearance is beautiful because the connections are made inside the aluminum extrusion.
Part Number
Configured Part Number is shown.
Dimensional Drawing of Blind Brackets
Blind Brackets
HBLBS5
SHBLBS5
(stainless steel)
Blind Brackets long type
HBLBSL5
SHBLBSL5
Sheet metal Blind Brackets
HBLPBS5
| Blind Brackets Type | [M] Material | [S] Surface Treatment |
| HBLBS5 | S45C | Trivalent Chromate |
| SHBLBS5 | SCS13 | − |
| SHBLBSL5 | ||
| HBLBSL5 | S45C | Trivalent Chromate |
| HBLPBS5 | SPCC |
Specification Table of Blind Brackets
| Blind Brackets Model |
| HBLBS5 |
・To check the latest price, please click the "Check Price" button after confirming the model number.
| Blind Brackets Model | Mass (g) | Attached bolts | Allowable load (N) | |
| bolt | Quantity | |||
| HBLBS5 | 11 | Set screw M4×5 | 2 | 196 |
| SHBLBS5 (Stainless Steel) | ||||
| HBLBSL5 | 17 | 4 | 274 | |
| SHBLBSL5 (Stainless Steel) | ||||
| HBLPBS5 | 6 | 2 | 190 | |
Supported Frames of Blind Brackets
- Compatible withthe 5 Series .

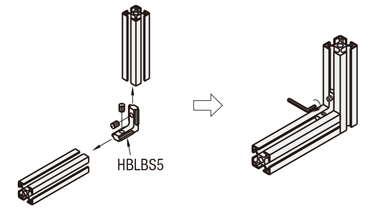

How to Use of Blind Brackets
・Can be assembled in an L shape.
■How to use Blind Brackets
Notes of Blind Brackets
- This Blind Brackets product comes with a set screw.
- The tightening torque of the set screw is not specified.
- The set screw does not protrude from the aluminum frame.
Product Comparison Information of Blind Brackets
■5 Series Blind Brackets
| Product name | Blind Blind Brackets | Rear-mount Blind Brackets | Different size connecting Blind Brackets | Corner Blind Brackets |
|---|---|---|---|---|
| Product Photos |
|
|
|
|
| Installation Diagram |

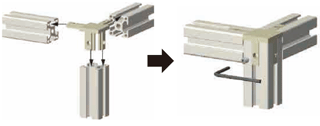

■How to use Blind Brackets
|
|
|
The position of the three frames It also functions as a frame cap.
|
| Blind Brackets Material | S45C or SCS13 | SCS13 | S45C | S45C or SCS13 |
| Features | The Blind Brackets can be hidden in the groove without any additional work. | This is a rear-insertion type Blind Brackets. | This is a Blind Brackets that connects the 6 Series and 5 Series frames. | This Blind Brackets can be fitted to the end of a frame. It also functions as a frame cap. |
| Supported Frames | 5 Series | 5 Series | 6 Series & 5 Series | For 5 series 20 square |
| Product page | This product | Product page | Product page | Product page |
Related Items of Blind Brackets
■5 series (groove width 6mm)
| Product name | Aluminum frame | Blind Brackets | Blind Joint | Frame cap | Groove cover | nut |
|---|---|---|---|---|---|---|
| photograph |
|
|
|
|
|
|
| Product page | Here | Here | Here | Here | Here | Here |
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
| Part Number |
|---|
| HBLBS5 |
| HBLBSL5 |
| HBLPBS5 |
| SHBLBS5 |
| SHBLBSL5 |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Days to Ship | RoHS | Material | Extrusion Series | Bracket Type |
|---|---|---|---|---|---|---|---|---|
78,217 IDR | 1 Piece(s) | Same day | 10 | S45C | HFS | Standard | ||
112,831 IDR | 1 Piece(s) | Available | Same day | 10 | S45C | - | Long | |
74,583 IDR | 1 Piece(s) | Available | 8 Day(s) or more | 10 | SPCC | HFS | Standard | |
78,217 IDR | 1 Piece(s) | Available | Same day | 10 | SCS13 | HFS | Standard | |
112,831 IDR | 1 Piece(s) | Available | 14 Day(s) | 10 | SCS13 | - | Long |
Loading...
Basic Information
| Extrusion No. | 5 |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Tech Support
- Factory Automation, Electronics, Tools, & MRO (Maintenance, Repair and Operations)
- Tel：021-8990-4102 / FAX：021-8990-5803
- 8:30am - 5:30pm (Monday - Friday)
- Technical Inquiry
-
Bank TransferTransfer Bank
MISUMI Contact
MISUMI Kontak
Copyright © MISUMI Corporation All Rights Reserved.
How can we improve?Bagaimana Kami bisa meningkatkan Pelayanan?
How can we improve?Bagaimana Kami bisa meningkatkan Pelayanan?
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Customer Privacy Policy Walaupun Kami tidak dapat langsung menjawab saran yang ditulis di lembar ini, informasinya akan kami review untuk peningkatan pelayanan dikemudian hari
Kebijakan Privacy
Thank you for your cooperation.Terima kasih atas kerjasama anda.
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Please use the inquiry form.
Customer Privacy Policy Walaupun Kami tidak dapat langsung menjawab saran yang ditulis di lembar ini, informasinya akan kami review untuk peningkatan pelayanan dikemudian hari
Silahkan pergunakan Forms Permintaan.
Kebijakan Privacy
