Tall Blocks Housing Units - Double / Compact (LHSSWF5)

Tall Blocks Housing Units - Double / Compact LHSSWF5
  • Volume Discount

MISUMI

MISUMI

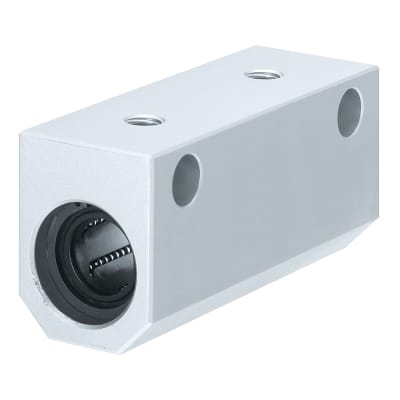

Tall Blocks Housing Units - Double / Compact
The linear bushing supports and guides a load, enabling smooth and accurate linear motion along a specified path. It provides a variety of sizes to choose from.
[Feature]
● Support Shaft Diameter Minimum/Maximum (mm.): 4 and 30
● Overall Length Minimum/Maximum (mm.): 27 and 138
● Shape : Tall Blocks Housing Standard and Compact Units
● Material:
- Housing - Aluminum Alloy
- Ball - SUJ2 Equivalent or SUS440C Equivalent
[Application]
It is used in industrial machinery such as conveyor systems, packaging machines, and robotic equipment.

PDFP.1-322-2014

Part Number

Configured Part Number is shown.

LHSSWF5

Standard


Compact
TypeLinear Bushing UsedHousingOperating Ambient Temperature
StandardCompactStandardCompact[M] Material[S] Surface Treatment
LHSSWLHSSKWLMULMKAluminum AlloyClear Anodize−20 to 80°C
LHSSWF—LMUF—−20 to 110°C
SLHSSW—SLMU—−20 to 80°C
SLHSSWF—SLMUS—−20 to 110°C

Specification Table

Part Number
LHSSW12
Linear Bushing Housing Unit - Compact, Tall Block, Double: Related ImageLHSSW12L
Linear Bushing Housing Unit - Compact, Tall Block, Double: Related ImageLHSSW12G
Linear Bushing Housing Unit - Compact, Tall Block, Double: Related ImageLHSSW12H
(L Type Greased)
(G Type Greased)
(H Type Greased)
[ ! ] Alternative grease types available.
drToleranceD(S)LL1L2hWHℓM1
(Effective Length)		M2
(Effective Length)		CC1d1 × t
StandardCompactStandardCompactStandardCompactStandardCompactStandardCompactStandardCompactStandardCompact
40
−0.008		8—1.127142210—12—16—3—M3
(6)		—M3
(10.5)		——0.54.2 × 1.5
(For M2 Screws)
510—4.040182813—15—20—5—M4
(8)		—M4
(10)		——16 × 5
(For M3 Screws)
(6)0
−0.010		12103.04620301413161422204M4
(8)		M4
(11)		M4
(9)		41 or less
(8)15135630421615201726245M5
(8.5)		M5
(8.5)		M4
(15)		M4
(12)		51 or less
(10)19174.068365019182623323066M6
(9.5)		M6
(9.5)		M5
(20)		M5
(17)		61 or less8 × 6
(For M4 Screws)
(12)211970201928253432M5
(22)		M5
(19)		1 or less
1323—74425525—30—43—7—M6
(13)		—M6
(23)		——19 × 7
(For M5 Screws)
(16)28263.88452652726363349437M6
(13)		M6
(29)		M6
(26)		81 or less
200
−0.012		32—94587031—42—54—8—M8
(15)		—M8
(34)		——111 × 8
(For M6 Screws)
2540—3.21288010037—52—65—9—M10
(17)		—M10
(42)		——114 × 10
(For M8 Screws)
3045—1389011040—58—71——M10
(17.5)		—M10
(48)		——1
[!] Only dr dimensions in () are available for Compact Type. [!] Make certain that the screws do not interfere with the bushing as M1 are through holes.
[!] The datum surface is located on the other side of Part Number label. [!] Anti-rust oil is applied at the time of delivery.
drBasic Load RatingAllowable Static Moment
(N⋅m)		Mass (g)
C (Dynamic) NCo (Static) NStandardCompact
StandardCompactStandardCompactStandardCompact
4176—254—0.63—14—
5263—412—1.38—35—
63242065293092.182.464034
84313837845554.315.767560
1058858511008677.2410.99150126
12657608120089910.911.85168150
13813—1570—11.6—248—
1612309652350143119.723.48383296
201400—2740—26.8—520
251560—3140—43.4—1120—
302490—5490—82.8—1384—
Grease coating
By selecting the grease below, change to the product with grease coating is available.
TypeProduct NameMain Features
A TypeAlvania Grease S2 (by Showa Shell Sekiyu)General-purpose grease suitable for various grease lubrication locations.
Y TypeAFF (Made by THK Co., Ltd.)Grease with less particles, stable rolling resistance, and excellent fretting resistance.
G TypeLG2 (Made by NSK Ltd.)Grease with less particles, excellent wear and rust resistance.
L TypeET-100K (Made by KYODO YUSHI Co., Ltd.)Superior heat resistance and oxidation stability. Also high adhesion and cohesion with limited splash or leakage.
H TypeFGL (Lubriplate)Suitable for lubrication of equipment used in food, beverage and pharmaceutical industries. (NSF H-1 Reg. No. 043534)
Grease Performance Table (Reference Value)
ItemConditionsUnitMeasurement MethodA TypeY TypeG TypeL TypeH Type
Thickener———Lithium TypeLithium TypeLithium TypeAromatic DiureaAluminum Complex Soap
Base Oil———Mineral OilFine Synthetic OilMineral Oil + Synthetic Hydrocarbon OilEther Synthetic OilUSP White Oil
Base Oil
Kinematic Viscosity		40°Cmm2/sJIS K2220 2313110032—105 (ASTMD-445)
100°C12.2—5.4—11.5 (ASTMD-445)
Worked Penetration——JIS K2220 7283315199280310 (ASTMD-217)
Dropping Point—°CJIS K2220 8181220201260 <238 (ASTMD-217)
Evaporation Amount99°C × 22 hrwt%JIS K2220 100.20.71.4—0.27 (ASTMD−972)
Oil Separation100°C × 24 hrwt%JIS K2220 112.42.60.81.22.1 (ASTMD−1742)
Operating Temp.In Air°C—-25 to 120-40 to 120−20 to 70−40 to 200−12 to 177

Part Number

CAD Data download and 3D preview are not available because the part number has not yet been determined.

  • *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
  • Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
