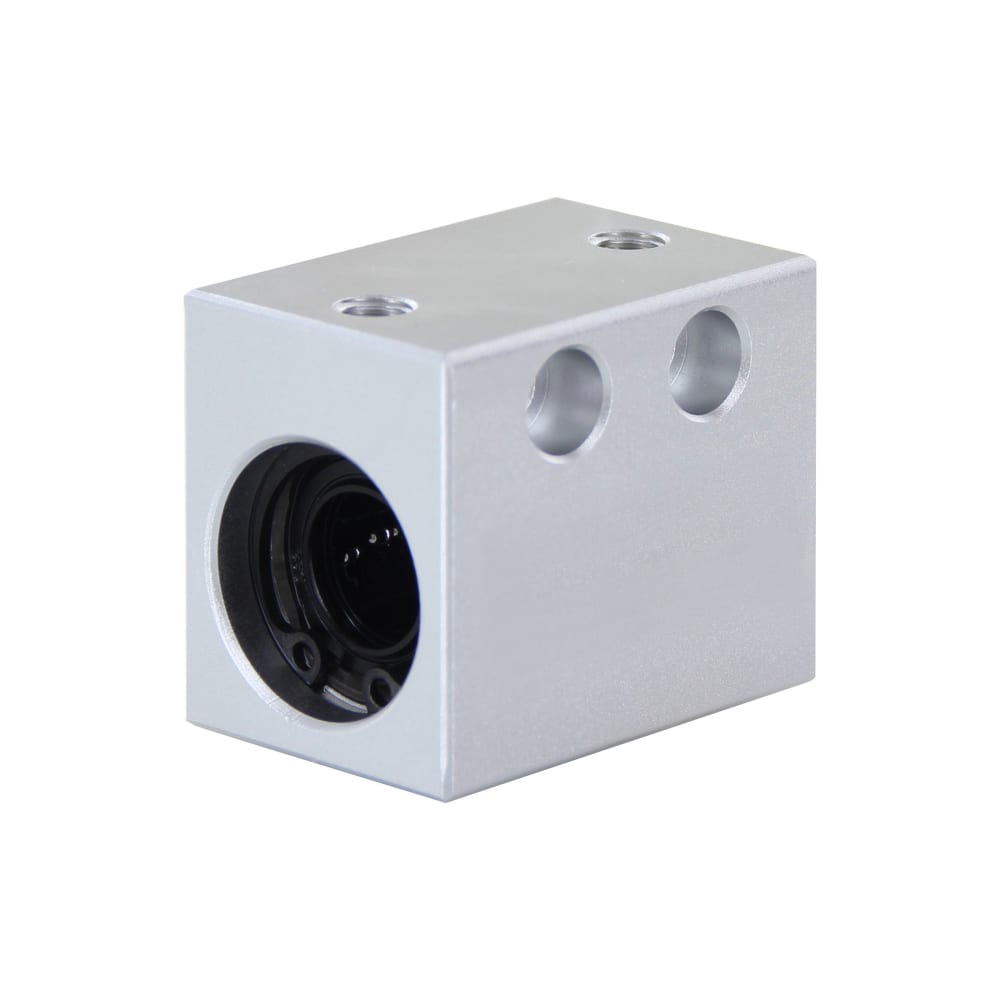

Tall Blocks Housing Units - Single / Compact (LHSSF5L)

Tall Blocks Housing Units - Single / Compact LHSSF5L

Click this image to zoom it.

Move the mouse over the image to zoom

  • Tall Blocks Housing Units - Single / Compact
  • Tall Blocks Housing Units - Single / Compact
  • Volume Discount

MISUMI

MISUMI

Tall Blocks Housing Units - Single / Compact
The linear bushing supports and guides a load, enabling smooth and accurate linear motion along a specified path. It provides a variety of sizes to choose from.
[Feature]
● Support Shaft Diameter Minimum/Maximum (mm.): 4 and 30
● Overall Length Minimum/Maximum (mm.): 15 and 74
● Flange Shape : Tall Blocks Housing Units
● Material:
- Housing - Aluminum Alloy
- Ball - SUJ2 Equivalent or SUS440C Equivalent
[Application]
It is used in industrial machinery such as conveyor systems, packaging machines, and robotic equipment.

PDFP.1-321-2014

Part Number

Configured Part Number is shown.

LHSSF5L

Standard


Compact
TypeLinear Bushing UsedHousingOperating Ambient Temperature
StandardCompactStandardCompact[M] Material[S] Surface Treatment
LHSSLHSSKLMULMKAluminum AlloyClear Anodize−20 to 80°C
LHSSF—LMUF—−20 to 110°C
SLHSS—SLMU—−20 to 80°C
SLHSSF—SLMUS—−20 to 110°C

Specification Table

Part Number
LHSS12
Linear Bushing Housing Unit - Tall Block, Single, Compact: Related ImageLHSS12L
Linear Bushing Housing Unit - Tall Block, Single, Compact: Related ImageLHSS12G
Linear Bushing Housing Unit - Tall Block, Single, Compact: Related ImageLHSS12H
(L Type Greased)
(G Type Greased)
(H Type Greased)
[ ! ] Alternative grease types available.
drToleranceD(S)LL1L2hWHℓM1
(Effective Length)		M2
(Effective Length)		CC1d1 × t
StandardCompactStandardCompactStandardCompactStandardCompactStandardCompactStandardCompactStandardCompact
40
−0.008		8—1.115—1010—12—16—3—M3
(6)		—M3
(10.5)		——0.54.2 × 1.5
(For M2 Screws)
510—4.02516713—15—20—5—M4
(8)		—M4
(10)		——16 × 5
(For M3 Screws)
(6)0
−0.009		12103.0271891413161422204M4
(8)		M4
(11)		M4
(9)		41 or less
(8)15133220101615201726245M5
(8.5)		M5
(8.5)		M4
(15)		M4
(12)		51 or less
(10)19174.039271519182623323066M6
(9.5)		M6
(9.5)		M5
(20)		M5
(17)		61 or less8 × 6
(For M4 Screws)
(12)211940201928253432M5
(22)		M5
(19)		1 or less
1323—42281625—30—43—7—M6
(13)		—M6
(23)		——19 × 7
(For M5 Screws)
(16)28263.84732182726363349437M6
(13)		M6
(29)		M6
(26)		81 or less
200
−0.010		32—523631—42—54—8—M8
(15)		—M8
(34)		——111 × 8
(For M6 Screws)
2540—3.269422237—52—65—9—M10
(17)		—M10
(42)		——114 × 10
(For M8 Screws)
3045—744440—58—71——M10
(17.5)		—M10
(48)		——1
[!] Only dr dimensions in () are available for Compact Type. [!] Make certain that the screws do not interfere with the bushing as M1 are through holes.
[!] Standard dr4 has only one M1 mounting hole. [!] The datum surface is located on the other side of Part Number label. [!] Anti-rust oil is applied at the time of delivery.
drBasic Load RatingMass (g)
C (Dynamic) NCo (Static) NStandardCompact
StandardCompactStandardCompact
488—127—8—
5167—206—18—
62061312651552217
82652353802774032
103723685494338067
124123815984499080
13510—608—132—
167756081180716204155
20882—1370—272—
25980—1570—574—
301570—2740—710—
Grease coating
By selecting the grease below, change to the product with grease coating is available.
TypeProduct NameMain Features
A TypeAlvania Grease S2 (by Showa Shell Sekiyu)General-purpose grease suitable for various grease lubrication locations.
Y TypeAFF (Made by THK Co., Ltd.)Grease with less particles, stable rolling resistance, and excellent fretting resistance.
G TypeLG2 (Made by NSK Ltd.)Grease with less particles, excellent wear and rust resistance.
L TypeET-100K (Made by KYODO YUSHI Co., Ltd.)Superior heat resistance and oxidation stability. Also high adhesion and cohesion with limited splash or leakage.
H TypeFGL (Lubriplate)Suitable for lubrication of equipment used in food, beverage and pharmaceutical industries. (NSF H-1 Reg. No. 043534)
Grease Performance Table (Reference Value)
ItemConditionsUnitMeasurement MethodA TypeY TypeG TypeL TypeH Type
Thickener———Lithium TypeLithium TypeLithium TypeAromatic DiureaAluminum Complex Soap
Base Oil———Mineral OilFine Synthetic OilMineral Oil + Synthetic Hydrocarbon OilEther Synthetic OilUSP White Oil
Base Oil
Kinematic Viscosity		40°Cmm2/sJIS K2220 2313110032—105 (ASTMD-445)
100°C12.2—5.4—11.5 (ASTMD-445)
Worked Penetration——JIS K2220 7283315199280310 (ASTMD-217)
Dropping Point—°CJIS K2220 8181220201260 <238 (ASTMD-217)
Evaporation Amount99°C × 22 hrwt%JIS K2220 100.20.71.4—0.27 (ASTMD−972)
Oil Separation100°C × 24 hrwt%JIS K2220 112.42.60.81.22.1 (ASTMD−1742)
Operating Temp.In Air°C—-25 to 120-40 to 120−20 to 70−40 to 200−12 to 177
