- Penghentian penjualan kategori produk pneumatik Seri Ekonomi (E-series). Info Detail
Notice of End of Sales for Economy Series Pneumatic Equipment Category. More information.

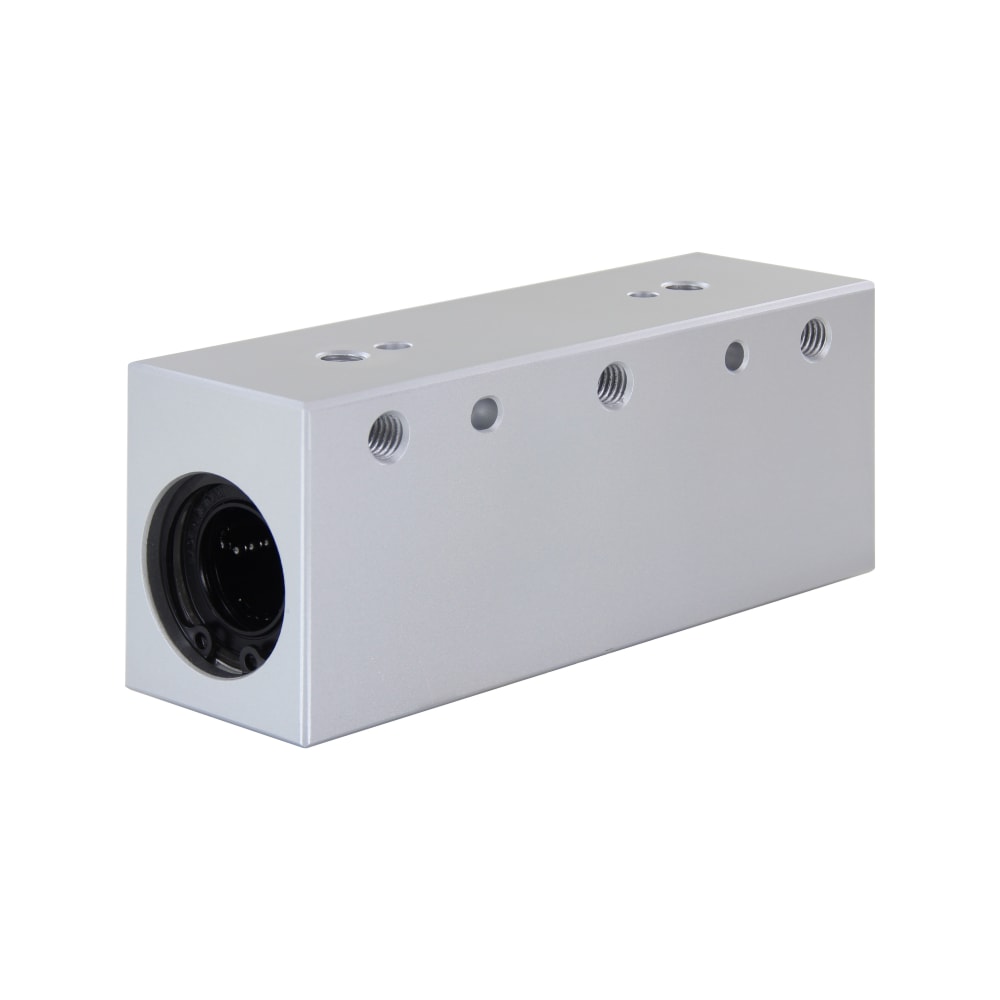

Linear Bushing Housing Units with Dowel Holes - Tall Blocks - Single / Double (Part Numbers)
- Volume Discount
MISUMI original standard. Compared to the standard type, the dowel hole type reduces equipment assembly time and improves position repeatability.
Part Number
Configured Part Number is shown.
Single Type
Double Type
Long
| Type | Linear Bushing Used | Housing | Operating Ambient Temperature | |||
| Single Type | Double Type | Long | [M] Material | [S] Surface Treatment | ||
| LHSSN | LHSSWN | LHSSLN | LMU | Aluminum Alloy | Clear Anodize | －20 to 80°C |
Specification Table
| Part Number | |
LHSSN16 LHSSWN20L LHSSN16G LHSSWN20H | (L Type Greased) (G Type Greased) (H Type Greased) |
| dr | Tolerance | D | (S) | L | L1 | L2 | h | W | H | L | A | B | M1 (Effective Length) | M2 (Effective Length) | d1 × t | C | ||||||||
| Single | Double | Long | Single | Double | Long | Single | Double | Long | Single | Double | Long | |||||||||||||
| 8 | 0 －0.009 | 0 －0.010 | — | 15 | 3.0 | 32 | 56 | — | 20 | 30 | — | 10 | 42 | — | 16 | 20 | 26 | 5 | — | — | M5 (8.5) | M4 (15) | 6 × 5 (For M3 Screws) | 1 |
| 10 | 19 | 4.0 | 39 | 68 | — | 27 | 36 | — | 15 | 50 | — | 19 | 26 | 32 | 6 | — | — | M6 (9.5) | M5 (20) | 8 × 6 (For M4 Screws) | ||||
| 12 | 21 | 40 | 70 | — | — | — | 20 | 28 | 34 | — | — | M5 (22) | ||||||||||||
| 13 | 23 | 42 | 74 | — | 28 | 42 | — | 16 | 55 | — | 25 | 30 | 43 | 7 | — | — | M6 (13) | M6 (23) | 9 × 7 (For M5 Screws) | |||||
| 16 | 0 －0.015 | 28 | 3.8 | 47 | 84 | 121 | 32 | 52 | 74 | 18 | 65 | 90 | 27 | 36 | 49 | 7 | 7 | M6 (29) | ||||||
| 20 | 0 －0.010 | 0 －0.012 | 0 －0.018 | 32 | 52 | 94 | 136 | 36 | 58 | 82 | 70 | 102 | 31 | 42 | 54 | 8 | 0 | 8 | M8 (15) | M8 (34) | 11 × 8 (For M6 Screws) | |||
| 25 | 40 | 3.2 | 69 | 128 | 187 | 42 | 80 | 116 | 22 | 100 | 140 | 37 | 52 | 65 | 9 | 9 | M10 (17) | M10 (42) | 14 × 10 (For M8 Screws) | |||||
| 30 | 45 | 74 | 138 | 202 | 44 | 90 | 128 | 110 | 152 | 40 | 58 | 71 | M10 (17.5) | M10 (48) | ||||||||||
[!] The datum surface is located on the other side of Part Number label. [!] Inner surfaces of dowel holes are not anodized. [!] Anti-rust oil is applied at the time of delivery.
| dr | Dowel Hole Dimensions | Basic Load Rating | Allowable Static Moment | Mass (g) | |||||||||||||||
| P | G | ℓ2 | E | F | C (Dynamic) N | Co (Static) N | (N⋅m) | ||||||||||||
| Single | Double | Long | Single | Double | Long | Single | Double | Long | Single | Double | Long | Single | Double | Long | |||||
| 8 | 2.5 | 3.5 | 3 | 22 | 16 | — | 12 | 265 | 431 | — | 380 | 784 | — | — | 4.31 | — | 40 | 75 | — |
| 10 | 4 | 5 | 5 | 29 | 20 | — | 16 | 372 | 588 | — | 549 | 1100 | — | — | 7.24 | — | 80 | 150 | — |
| 12 | — | 18 | 412 | 657 | — | 598 | 1200 | — | — | 10.9 | — | 90 | 168 | — | |||||
| 13 | 30 | 26 | — | 20 | 510 | 813 | — | 784 | 1570 | — | — | 11.6 | — | 132 | 248 | — | |||
| 16 | 32 | 36 | 50 | 775 | 1230 | 1230 | 1180 | 2350 | 2350 | — | 19.7 | 73.5 | 204 | 383 | 569 | ||||
| 20 | 5 | 6 | 6 | 36 | 38 | 60 | 882 | 1400 | 1400 | 1370 | 2740 | 2740 | — | 26.8 | 98.0 | 272 | 520 | 788 | |
| 25 | 42 | 58 | 90 | 26 | 980 | 1560 | 1560 | 1570 | 3140 | 3140 | — | 43.4 | 157 | 574 | 1120 | 1653 | |||
| 30 | 44 | 68 | 100 | 30 | 1570 | 2490 | 2490 | 2740 | 5490 | 5490 | — | 82.8 | 297 | 710 | 1384 | 2041 | |||
Part Number
CAD Data download and 3D preview are not available because the part number has not yet been determined.
- *In order to open the CAD Data download and 3D preview screen, the part number must be fixed.
- Please confirm the part number from "Specification / Dimension"on the left side, and then perform the CAD Data Download / 3D Preview operation.
Loading...
| Part Number |
|---|
| Part Number | Minimum order quantity | Volume Discount | Days to Ship | RoHS | Inscribed Circle Dia. dr (Ø) | Overall Length L (mm) | Outer Dia. D (Ø) | Ball Recirculating Type | Length | Basic Load Rating: Dynamic Load (Details) (N) | Basic Load Rating: Static Load (N) | Inscribed Circle Dia. Tolerance (Negative Side) (mm) | Greased Filled |
|---|
Loading...
Basic Information
| Type | Housing | Style | Standard | Outer Sleeve Material | SUJ2 Equivalent |
|---|---|---|---|---|---|
| Outer Sleeve Surface Treatment | Clear Anodize | Lubrication Type | Not Provided | Accuracy | High Grade |
| Motion | Linear | Types | Linear Bushing Housing Unit - Tall Blocks | Ball Material | SUJ2 Equivalent |
| Retainer Material | Plastic (Duracon M90 Equivalent) | Seal | With Seal | Outer Cylinder Material | SUJ2 Equivalent |
Specification/Dimensions
-
Inscribed Circle Dia. dr(Ø)
-
Overall Length L(mm)
-
Outer Dia. D(Ø)
-
Ball Recirculating Type
- Single
- Double
-
Length
- Single
- Double
- Long
-
Greased Filled
- G Type (Low Dust Generation)
- H Type (For Food, Drinking Water)
- L Type (Heat Resistant)
- Not Provided
-
type
- LHSSLN
- LHSSN
- LHSSWN
-
CAD
- 2D
- 3D
Days to Ship
-
- All
- Same day
- 8 Day(s) or Less
- 12 Day(s) or Less
Specify Alterations
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Tech Support
- Factory Automation, Electronics, Tools, & MRO (Maintenance, Repair and Operations)
- Tel：021-8990-4102 / FAX：021-8990-5803
- 8:30am - 5:30pm (Monday - Friday)
- Technical Inquiry
-
Bank TransferTransfer Bank
MISUMI Contact
MISUMI Kontak
Copyright © MISUMI Corporation All Rights Reserved.
How can we improve?Bagaimana Kami bisa meningkatkan Pelayanan?
How can we improve?Bagaimana Kami bisa meningkatkan Pelayanan?
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Customer Privacy Policy Walaupun Kami tidak dapat langsung menjawab saran yang ditulis di lembar ini, informasinya akan kami review untuk peningkatan pelayanan dikemudian hari
Kebijakan Privacy
Thank you for your cooperation.Terima kasih atas kerjasama anda.
While we are not able to respond directly to comments submitted in this form, the information will be reviewed for future improvement.
Please use the inquiry form.
Customer Privacy Policy Walaupun Kami tidak dapat langsung menjawab saran yang ditulis di lembar ini, informasinya akan kami review untuk peningkatan pelayanan dikemudian hari
Silahkan pergunakan Forms Permintaan.
Kebijakan Privacy
